Product Specifications
| Prod Model: |
Y30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quality System: |
ISO9001: 2000 |
| Factory Audit: |
SGS |
| Environment: |
RoHS |
| Grade: |
Y10t, Y20, Y25, Y30 Y30bh, Y35 |
| Packaging Details: |
Pallet & Carton |
| Sample: |
Free Sample |
| Composition: |
Ferrite Magnet |
| Application: |
Industrial Magnet |
| Shape: |
Arc, Block, Cube, Cylinder, Disc, Ring, Rod |
| Coating: |
No Surface Treatment Needed |
Product Description

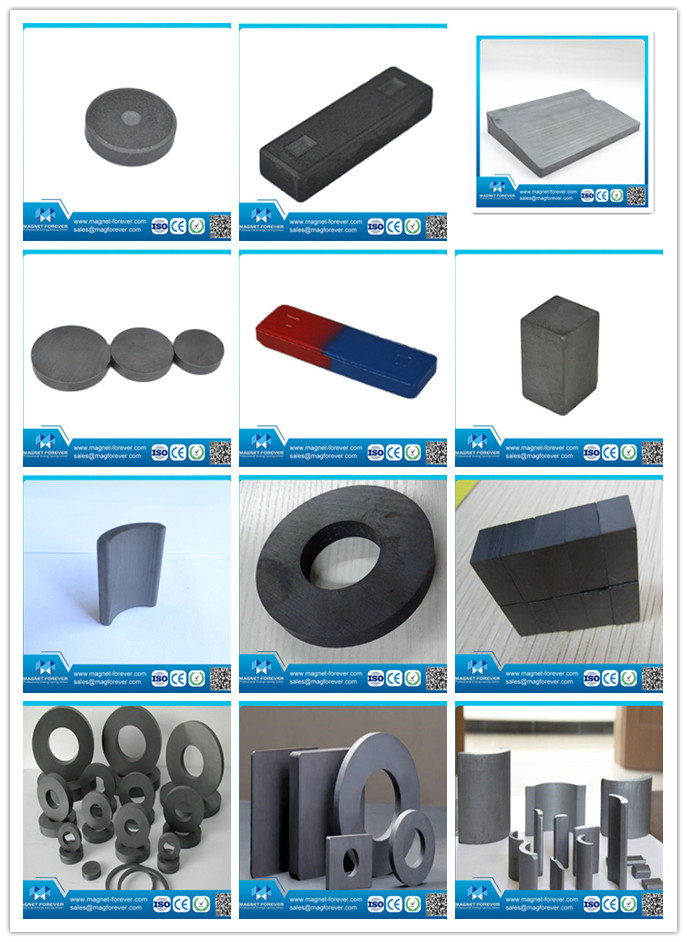

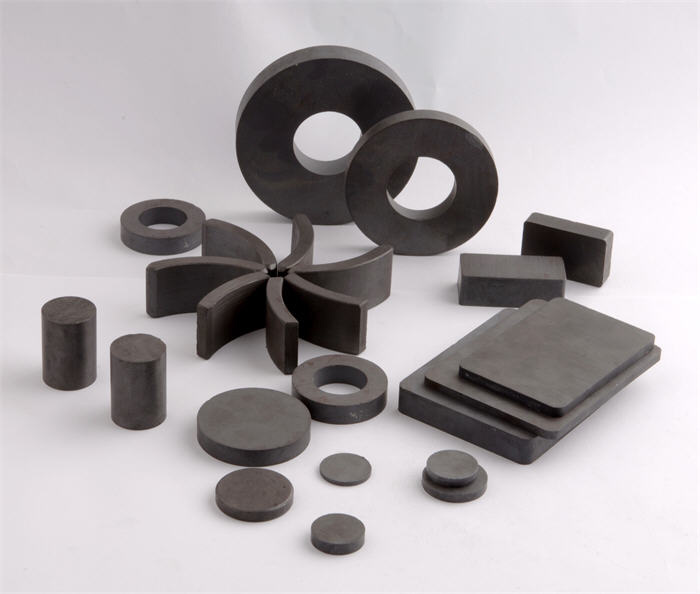

Arc, Ring, Block, Squared, Disc, Cylinder and Special Customized Shaped Ferrite Magnets
Specification:
Material |
Iso/
Anisotropic |
Remanence |
Coercivity |
Intrinsic Coercivity |
Max Energy product |
| Br(mT) | Br(Gs) | bHc(KA/m) | bHc(Oe) | iHc(KA/m) | iHc(Oe) | (BH)max(KJ/m 3 ) | (BH)max(MGOe) |
Y10T
c1 | Isotropic | ≥200 | ≥2000 | ≥125 | ≥1600 | ≥210 | ≥2600 | ≥6.5 | ≥0.8 |
| Y20 | Anisotropic | ≥360 | ≥3600 | ≥135 | ≥1700 | ≥140 | ≥1760 | ≥20.0 | ≥2.5 |
| Y25 | Anisotropic | ≥380 | ≥3800 | ≥144 | ≥1800 | ≥150 | ≥1880 | ≥24.0 | ≥3.0 |
Y30
c5 | Anisotropic | ≥390 | ≥3900 | ≥184 | ≥2300 | ≥188 | ≥2350 | ≥27.6 | ≥3.4 |
Y30BH
c8 | Anisotropic | ≥390 | ≥3900 | ≥240 | ≥3000 | ≥256 | ≥3200 | ≥27.6 | ≥3.4 |
Y35
c11 | Anisotropic | ≥410 | ≥4100 | ≥208 | ≥2600 | ≥212 | ≥2660 | ≥30.4 | ≥3.8 |
1) High working temperature
2) Good corrosion resistance
3) shapes: Segments, arc,
4) cheap, good magnet performance
Products: Block ferrite magnets, hard ferrite magnets, Ceramic Magnet
1. Material: SrO, BaO, Fe2O3.
2. Grade: Y10T, Y20, Y25, Y30, Y30BH, Y35, C5, C8, C11
3. Size: At your request.
4. Shapes: Arc, Tile, Block, Bar, Ring, Cube, etc.
5. Certificates: , SGS, ISO9001: 2000, ISO/TS16949: 2002, Sony Green Partner, Factory Audit, RoHS.
6. Application: Widely used in ammeter, audio, phone, TV, dynamo, Motors, Meters, Speakers, Sensors, Medical Machine products, Magnetic Sport products, etc
Features:1) Cheapest magnet material
2) Good anti-corrosion performance, no surface treatment needed.
3) Excellent temperature stability
4) Best choice for industrial application
5) All shapes can be customized
6) Compact crystal
7) provide isotropic and anisotrpic

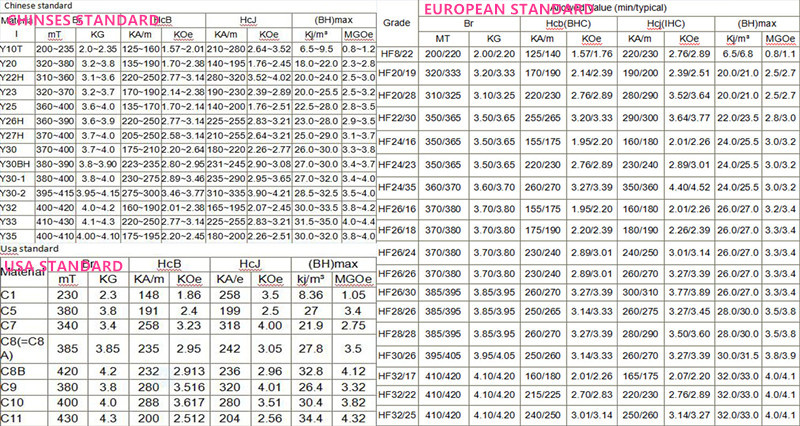

Different named in different countries:
About us:
http://magnetforever.en.made-in-china.com/Xiamen Magnet Forever Electronic Co., Ltd. is a professional high-tech manufacturer which is specializing in producing various magnetic products. The head office of our company is located in Xiamen City, which is a picturesque and beautiful seaside city, and our manufacturing center is situated in Dongyang City, which is rich in rare earth resources. Over the years, our company has been operating our business based on the principle of quality first, customer forever'. We are devoted to the construction of sales team and the improvement of technology and management. Our products have gained high praises from the domestic market, and are also exported to Southeast Asia, the Middle East, Europe, and America. Packaging:According to your custom size of the magnet, do the suitable packaging.
Welcome your OEM for the packaging with your Logo. Certifications:
BUYER GUIDE:In order to quote you the best price quickly, please provide the following information:
1. Product size, grade, coating, etc
2. Order quantity;
3. Attached the drawings if customized
4. Any special packing or other requirements
Our advantages: High quality, best service, fast dilivery.
We offer OEM service.
Quality First, Customer Forever
Feel free to contact us if any inquiries:
Audrey Su
Mobile: 008617750708175
Xiamen Magnet Forever Electronic Co., Ltd. is a professional high-tech manufacturer which is specializing in producing various magnetic products. The head office of our company is located in Xiamen City, which is a picturesque and beautiful seaside city, and our manufacturing center is situated in Dongyang City, which is rich in rare earth resources. Over the years, our company has been operating our business based on the principle of 'quality first, customer forever'. We are devoted to the construction of sales team and the improvement of technology and management. Our products have gained high praises from domestic market, and are also exported to Southeast Asia, the Middle East, Europe, and America.
Our company focuses on the research and production of rare-earth permanent NdFeB magnets and ferrite magnets. Our products are widely used in types of speakers, earphones and microphones, motors, sensors, medical care, packaging, toys, sports equipment, crafts and aviation fields. The monthly output of various NdFeB magnets is above 20 tons. Our products comply with N52 standard. The maximum working temperature can reach 220 degrees. Our products can be plated with Zn, Ni, Ni-Cu-Ni, gold, epoxy and other coatings, and can be cut into various shapes to meet customers' needs.
We can receive tailor-made orders for all kinds of fridges from our clients. Our company has received the certificates of SGS and RoHS, and promises that all raw materials we have used in production are environmentally-friendly.
"Honesty of business, the pursuit of excellence' is our everlasting business philosophy. We will try our best to do our business in an honest way and strive to provide our customers with the highest quality products, the most reasonable price, and the most enthusiastic service.
