Name: Aquarium Glass
Brand: china-crystals.com
SKU: 746011935
Availability: InStock
Rating: 4.7 (83 reviews)

Price:	US $ 10kg
Trade Terms:	FOB,CFR,CIF
Min Order:	300kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	Acrylic
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Acrylic Panel Thickness:	20mm-500mm
Acrylic Panel Raw Material:	Top Quality Acrylic
Acrylic Panel Diaphaneity:	92.8%
Acrylic Panel Plasticity:	Strong
Acrylic Panel Feature:	Eco-Friendly
Acrylic Panel Smell:	Tasteless
Acrylic Panel Price:	Factory Price
Acrylic Panel Certificate:	ISO9001
Lightings Type:	Coral Light
Type:	Aquariums
Temperature Control Products Type:	Electric Heater
Material Of Aquariums:	Acrylic
Decorations & Ornaments Type:	Rockery
Size Of Aquariums:	Large
Customized:	Customized
Shape Of Aquariums:	Square
Condition:	New
Feature:	Eco-Friendly

Product Description

Suzhou xingcheng aquarium technology co., ltd...Is a maker of customized transparent cast flat acrylic sheet of aquarium wall
Customized transparent cast flat acrylic sheet of aquarium wall
Flat acrylic sheet size: 5200mm x 2400mm, 8000mm x 3000mm by customized.
Flat acrylic sheet Thickness: 50mm, 280mm, 380mm and so on from 20mm to 500mm.
Flat acrylic sheet material: 100% original Lucite
Flat acrylic sheet Transparency: Above 92%
We make customized transparent cast flat acrylic sheet of aquarium wall according to customers' drawing.

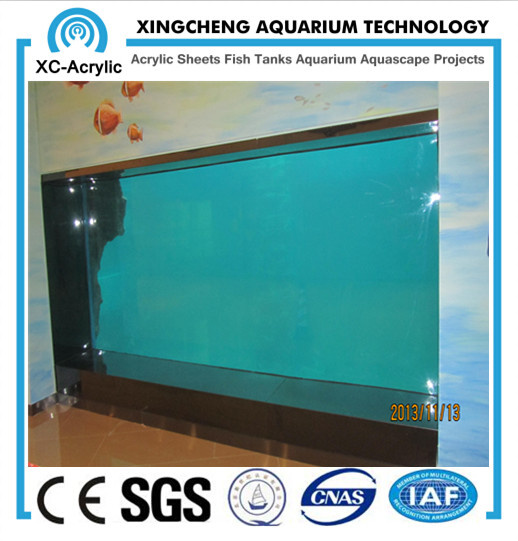

The photos as follows is our flat acrylic sheet aquarium wall,
Our services including design drawing, flat acrylic sheet processing, installaton, life support system, landscaping and so on.

1. What is pmma/acrylic?
Pmma sheet is named acrylic sheet, plexiglass or Organic glass sheet. The Chemical name is Polymethy methacrylate. Acrylic holds the physical properties among plastics due to the excellent transparency which sparkling &transparent like crystal, it is praised as "Queen of Plastics" and is very delighted by the processors.

1. Does acrylic sheet will turn yellow in sunshine?
No, acrylic sheet from our factory should be made with UV. It can't to turn yellow in sunshine.
2. Warranty period for acrylic sheet?
We are committed to acrylic sheet five year warranty, not artificial not to damage.
3. Customers can personally inspect acrylic?
Yes, we welcome customers visit our factory to check acrylic production.

PROPERTIES	VALUE	Method ASTM	VALUE	Method DIN
Density (specific weight)	1,19 g/cm 3	D 792	1,19 g/cm 3	53479
Modulus of elasticity	32.000 Kg./cm 2	D 790	3200 N/mm 2	53457
Tensile Strenght	740 kg/cm 2	D 638	74 kg/cm 2	53455
Flexural Strenght	1200 kg/cm 2	D 790	120 kg/cm 2	53452
Elongation at break	3,0 %	D 638	3,0 %	53455
Impact Strenght (Izod)	2,0 kg/cm	D 256	2,0 kg/m 2	53453
Impact Strenght (Charpy)	25 kg/cm	D 256	27 kg/m 2	53453
Rockwell Hardness	M 100	D 785	/	/
Ball Drop H98/30	/	/	200 N/mm 2	53453

THERMAL PROPERTIES

PROPERTIES	VALUE	Method ASTM	VALUE	Method DIN
Coefficient of thermal conductivity	5,0 10 -4 cal/cm s ° C	C 177	0,19 W/m°C	52612
Deflection temperat.- 1,8 N/mm 2	105 °C	D 648	105 °C	53461
Softenig Point (Vicat)	> 115 °C	D 1525	> 115 °C	53460
Coef. Linear Thermal Expantion	7,5 10 -5 1/°C	D 696	75 10 -4 1/°C	VDE0304/1
Specific Heat	0,35 cal/g°C	/	/	/

ELECTRIC PROPERTIES

PROPERTIES	VALUE		Method ASTM	VALUE		Method DIN
Dielectric Strength	20 kV/mm		D 149	20 kV/mm		53461
Volume Resistivity	1 10 15 Ohm/cm		D 257	/		/
Surface Resistivity	1 10 14 Ohm		D 257	1 10 14 Ohm		53482
Transversal Resistivity		> 10 15 Ohm/cm			D 257
Dielectric Constant (50 Hz)	3,5		D 150	3,5		53483
Power Factor (50 Hz)	0,05		D 150	0,06		53483

OPTICAL PROPERTIES

PROPERTIES	VALUE	Method ASTM	VALUE	Method DIN
Refractive Index n 20 _D	1,49	D 542	1,49	53491
Light Transmittance	92%	D 1003/A	92 %	5036
Turbidity (Haze)	0,5%	D 1003/A	/	/

CHEMICAL PROPERTIES

PROPERTIES	VALUE	METHOD
Medium molecular weight	800 – 1000 10 3 uma	viscous
Resistance to acids	good	/
Resistance to bases	good	/
Resistance to chlorous solvents ( methylene chloride, chloroform, trichloroethylene etc.)	low	/
Resistance to non chlorous solvents (acetone,alcohol, petrol, etc.)	medium	/

REACTION TO FIRE

PROPERTIES	VALUE	METHOD
Flame propagation	22 – 28 mm/min.	ASTM D635/63
Igniting T.	280 – 300 °C	ASTM D 93
Autoigniting T.	425 °C	DIN 51794
Calorific power	6600 kcal/kg	/
Oxygen index	18	ASTM D28/63
Flammability	class B2	DIN 4102
Smoke density (Flamming)	Dm 50	NBS

WATER AND GAS ABSORPTION

PROPERTIES	VALUE	METHOD
Water absorption rate	30 mg	ISO 62, m.l
Max % increase of weight after water immersion	2,1%	ISO 62, m.l
Coef.of steam permeability	2,3 10 -10 g/cmPa	/
Coef.of N₂permeability	4,5 10 -15 g/cmPa	/
Coef.of O₂permeability	2,0 10 -14 g/cmPa	/
Coef.of CO₂permeability	1,1 10 -13 g/cmPa	/
Coef. of air permeability	8,3 10 -15 g/cmPa	/

Suzhou xingcheng aquarium technology Co., Ltd Is a large comprehensive company integrating production, processing, manufacture and sales of Acrylic products. It locates at lower Yangtze River and bank of Taihu Lake - Suzhou Zhangjiagang which is named as agricultural base and Jiangnan water region. Xingcheng moves towards the world with convenient transportation, complete corporate culture, and powerful technical force.

Established in 2000, Xingcheng has a hundred of staff now, covers an area of more than 30 mu, and has a specialized technological group and complete production equipment, including the dragon planes, vertical lathe, and ground borer, etc. Xingcheng has become a large-scale Acrylic manufacturer in China.

Xingcheng carries out the national standard GB/T7134-1996 and keeps in pace with international advanced technology. Our products are complete in specifications: Thickness 15m/m - 500m/m. Our products are applied to such fields as aquarium projects (marine museum, aquarium) construction, building materials decoration, and sports equipment, etc.

Xingcheng stands in the market with top technology, sincere attitude and scientific management. Xingcheng will serve you wholeheartedly with the business concept of "Quality-Based and Consumer First" and abroad to come here for study visit. We look forward to advancing with you, and creating bright future with you!
