Product Specifications
| Prod Model: |
MSW-A3L-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
A1, A2, A3, A4 etc. |
| Life: |
50,000h |
| Power Source: |
AC |
| Electric Current Type: |
DC |
| Emitting Color: |
White |
| Input Voltage: |
220V |
| Type: |
Ultra Slim Light Box |
| Usage: |
Advertising |
| Material: |
Acrylic |
| Shape: |
Rectangle |
| Suitable For: |
Indoor |
| Installation: |
Ceiling Hanging |
| Pringting Carrier: |
Inkjet Film |
| Style: |
Modern |
| Certification: |
UL |
Product Description

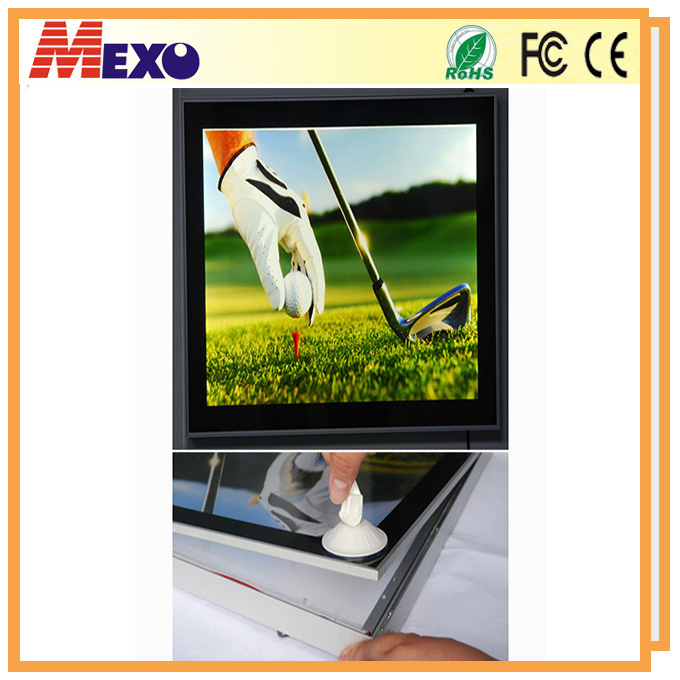

Features of Thin LED Aluminum Panel (Magnetic Open)
1. Light source: High Luminance LED Strip
2. Open Method: Face plate affix to LGP by magnetic strip; Picture behind face
3. Install Method: Mount on wall or hanging from ceiling or stand
4. Light Color: Customized available (normally white)
5. Thickness: Super slim, minimum 18mm
6. Powered By: 110-240V to DC12V adaptor, Battery Optional
7. Low Carbon: Low heat, no noise, no pollution, safe, energy saving
8. Long life span: 50, 000~100, 000hours
9. Frame Material: Aluminum
10. Size: Customized available
| Category | Aluminium Frame LED Light Panel (Magnetic Open) |
| Item No. | ALP07-A1 | ALP07-A2 | ALP07-A3 | ALP07-A4 | ALP07-A5 |
| Display Way | Horizontal |
| Picture Size (mm) | 875*629 | 629*455 | 455*332 | 332*245 | 245*183 |
| Visual Size (mm) | 840*594 | 594x420 | 420x297 | 297x210 | 210x148 |
| Frame Size (mm) | 914*668 | 668*494 | 494*371 | 371*284 | 284*222 |
| Thickness (mm) | 19 | 19 | 19 | 19 | 19 |
| Frame Width (mm) | 3 | 3 | 3 | 3 | 3 |
| Silkprint width (mm) | 34 | 34 | 34 | 34 | 34 |
| Packing Size (mm) | 964*718*90 | 718*544*90 | 544*421*90 | 421*334*90 | 334*272*90 |
| Gross Weight (kg) | 9.7 | 4.8 | 3.2 | 2.1 | 1.3 |
| Cubic Weight (kg) | 12.5 | 7.5 | 4.5 | 3 | 2 |
| Lighting Proposal | Double Long Edge | Double Long Edge | Double Short Edge | Single Long Edge | Single Short Edge |
| Power Source | Input AC ~110-240V, Output 12V Power Adaptor |
Located in Shenzhen, the window of China, Hawkspace is a manufacturer of LED back-lite application products since 2006, our products are applied with advanced CNC V-cutting engraving acrylic LGP (light guiding plate) and LED edge-lite. LED is ideal for energy saving and acrylic looks crystal, so our products are well met with the trend of lower carbon and fashion life, since 2007 we have exported 500, 000+ sets of LED light panels to Europe, North America, Australia as well as Asia. With solid OEM / ODM capacity and rich experience in foreign trade, Hawkspace can provide high quality product and good services to our valuable customers.
As a professional manufacturer, our young and passionate team is working hard to develop the best LED lighting panels for building an eco-friendly world. With the feature of energy-saving and ultra slim body, Mexo products are very good for and widely used in the fileds of --
1 Super Slim Light Box, for advertising and display;
2 Photo Frame with back light;
3 Ceiling Lamp, for either resident house or office;
4 Light panels for Home Decoration;
5 Crystal Lighting Giftwares...
Welcome to contact us when you need any further information of our products, Hawkspace offers not only high performance-price products, but also prompt and professional service, we are awared that long term business is based on long term loyalty and stable quality.
Welcome to Hawkspace for our Win-Win business!
