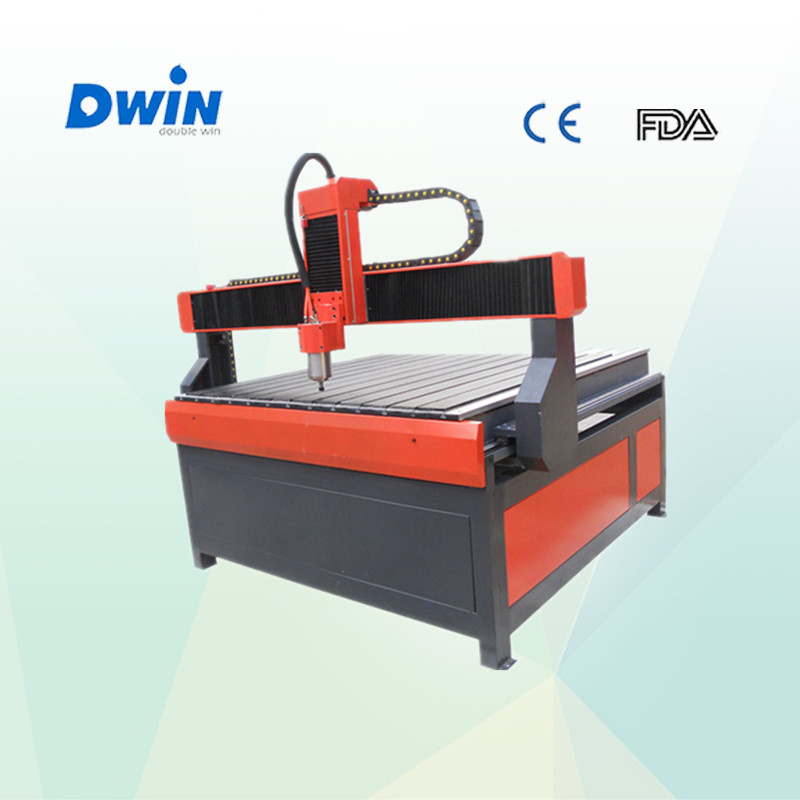

Advertising CNC Router for Guitar Engraving (DW1212)

Advertising CNC Router for Guitar Engraving (DW1212)
Price: US $ 2900-4200/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal

Product Specifications


Prod Model: DW1212
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Dw1212 CNC Router
Table Structure: Aluminum T-Slot
Spindle Power: 1.5kw/2.2kw Water Cooling
Max. Spindle Speed: 24000 R/Min
Max. Traveling Speed: 7200mm/Min
Processing Accuracy: ±0.025mm
Reposition Accuracy: ≤0.025mm
Driving System: Stepper Motor
Operation System: Ncstudio(Weihong Card)
Warranty: 18 Months
Spindle Layout: Vertical
Spindle Number: Single-Spindle
Feed Mode: Manual
Controlling Mode: CNC
Certification: SGS

Product Description


DW1212 advertising cnc router for guitar engraving machine

Features:
1,Imported bearings, contant torque,low noise,high power water cooing spindle.
2,Taiwan transducer with stable output signals.
3,High flexility, uneasy distorted cable and imported electronic components.
4,This series routers are designed with 3D embossment engraving particulary for redwood, classiacal, funiture,high precision,high speed,can satisfy any kinds of engraving work
5.with the round guide rail .
6,Three axises dustproof, Gantry mode movement, whole cast structure, Strong and long lifetime ,steady working without distortion, high precision.
7,. The system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation.
8,The water cooling spindle driver adopt imported sccessaries  and imported transducer, low noise, long life span, low maintenance cost.

X,Y working area

1200×1200mm

Z working area

>120mm

Table Size

1400×1470mm

Max. Speed

>12m/min

Max. working speed

10m/min

Max. feeding height

>120mm >

Working delicacy

0.005mm

Repositioning accuracy

0.05mm

Command

G code*.u00*.mmg*.plt

Surroundings for software

windows98/2000/xp

Software Compatability

Type3 Software, Ucancam software,(Option:Artcam )

Power (spindle is not included)

 1.2kW

Working voltage

AC220V/50Hz

Spindle power

1.5kw/2.2KW

Spindle rotating speed

0-24000rpm/min

Collect

ER16



 Application Materials

Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.

Application Industries
Suitable for Furniture Industry, Mould Industry, Craft Industry, Stone processing factories, Furnace (fireplace) making, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries,etc

Package Details

Wooden Box With Accessories inside



1),Electric Box(1pc) or computer control cabinet


(1),Tool box(1 set):


a,NCStudio Control card(1pc);
b,Data cable(1pc);
c,Disc(1pc);
d,Power cable(1pc);
e, Knife Tool(1set);
f,Upper blade wrench(1 set);
g,T-clip(1 set);
h,Allen wrench(1 set);
I,toolholder;
j,Random Software Data sheet(1pc);
k,Pump(2pcs);
l,packing list(1pc)


Qty/Ctn

1Set/ctn

Cartoon Size

Based on the products



Why choose us?

1.18 months equipment warranty and maintenance for lifetime.

2.Free installation and test before shipping and free training for operators

3.Advice for the solutions best for customers requirements.

4.Free training and sample provided

5.Meet CE,FDA,ISO9001 standards
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.

Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.

Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.

Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
