Product Specifications
| Prod Model: |
PE-W300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
Alternating Current |
| Model: |
Bx1 |
| Laser Type: |
YAG |
Product Description

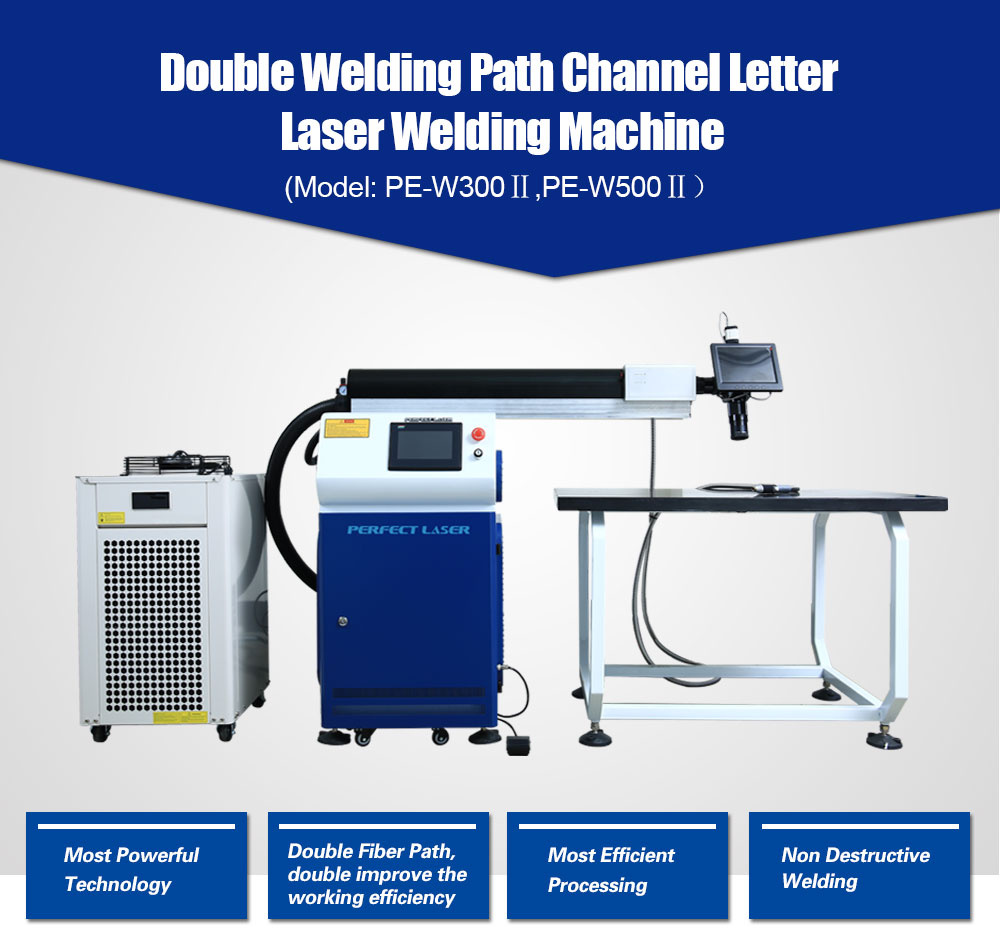

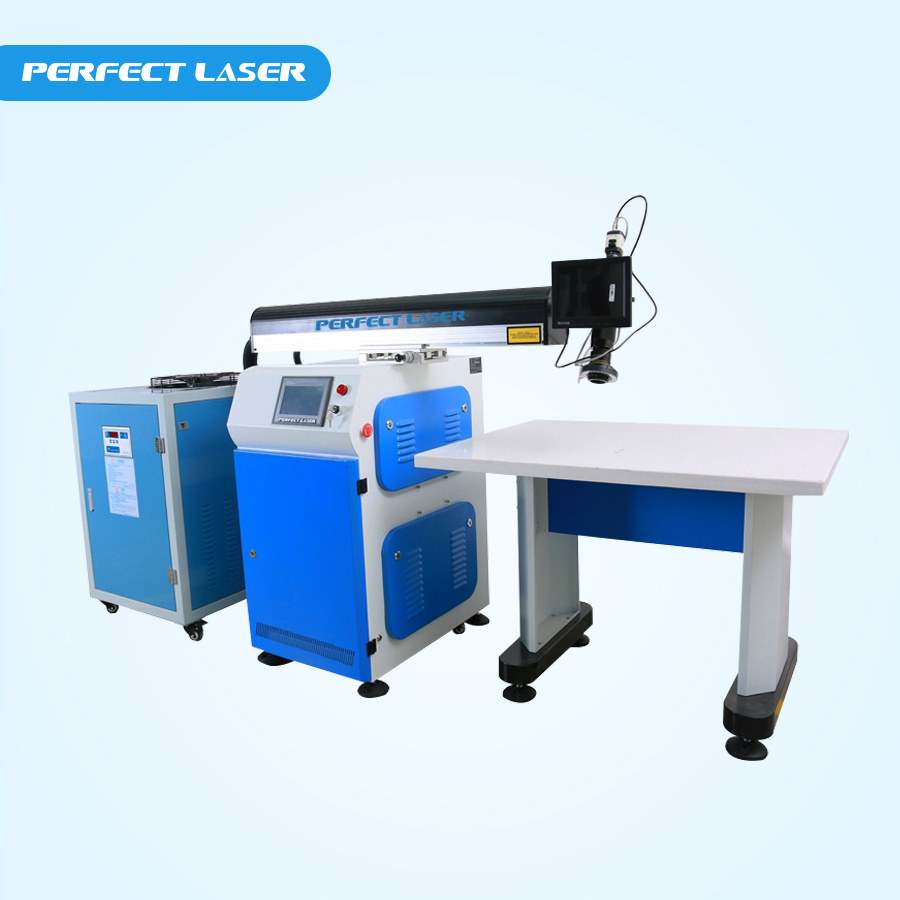

Ad Letters Advertisement Automatic Metal Laser Letter Welding Machine PE -W300II

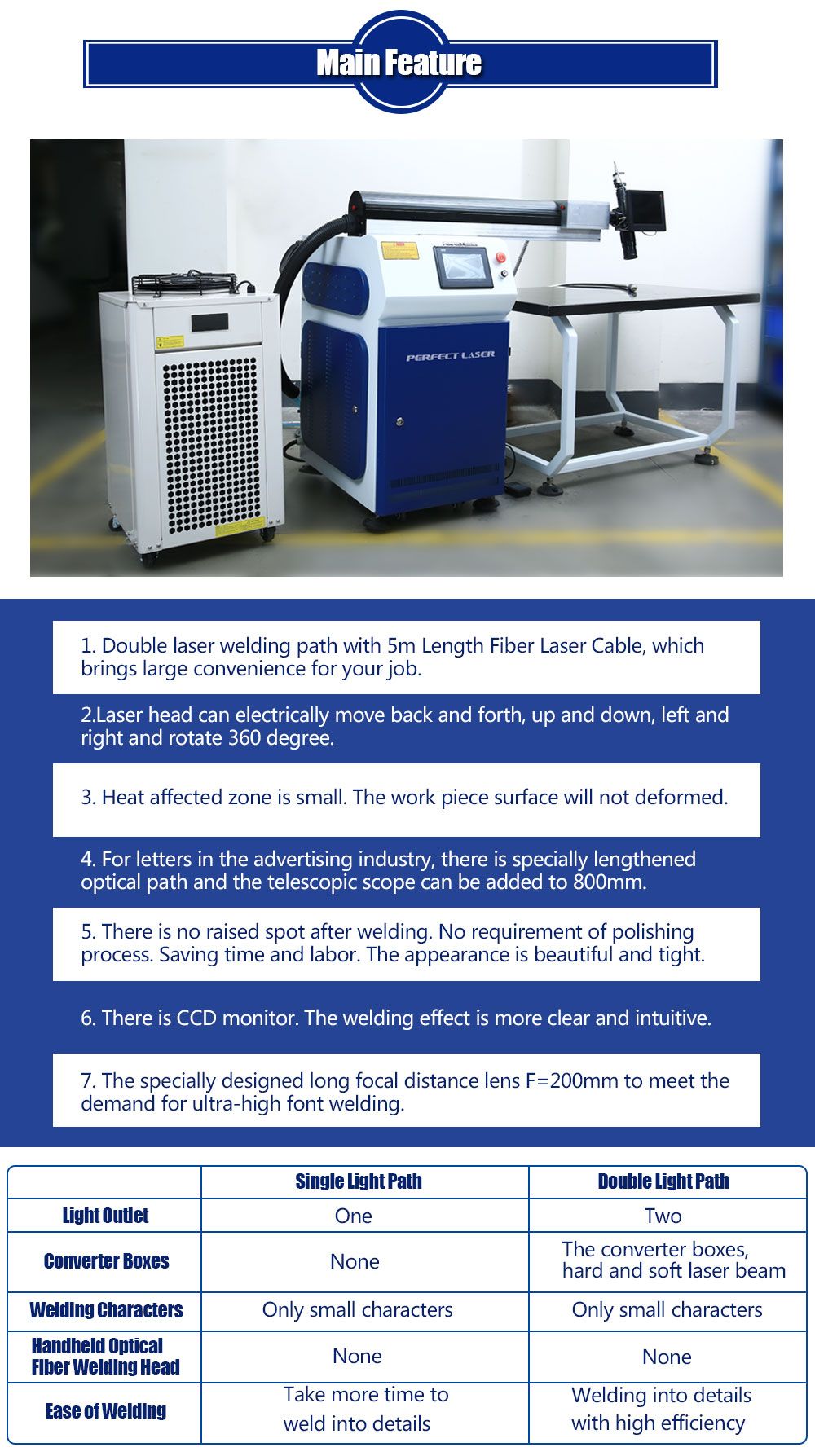

Features:1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone is small. The work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and th elescopic scope can be added to 800mm.
4. There is no raised spot after welding. No requirement of polishing process. Saving time and labor. The appearance is beautiful and tight.
5. There is optional CCD monitor. The welding effect is more clear and intuitive.
6. The specially designed long focal distance lens F=200mm to meet the demand for ultra-high font welding.
Introduction:
The advertising word laser welding machine is also called the advertising laser welding machine, laser welding machine, stainless steel word laser welding machine and so on. Through laser power of xenon pulse discharge, the formation of certain frequency and pulse width of light through the condenser cavity radiation to Nd: YAG crystal, crystal light after resonant a 1064 nm pulsed laser, again by a beam expander, reflection, focusing, and welding. The overall appearance is beautiful, with high performance bearing work platform, handle type operation is simple, cost-effective higher for all kinds of advertising industry, small welding processing industry.

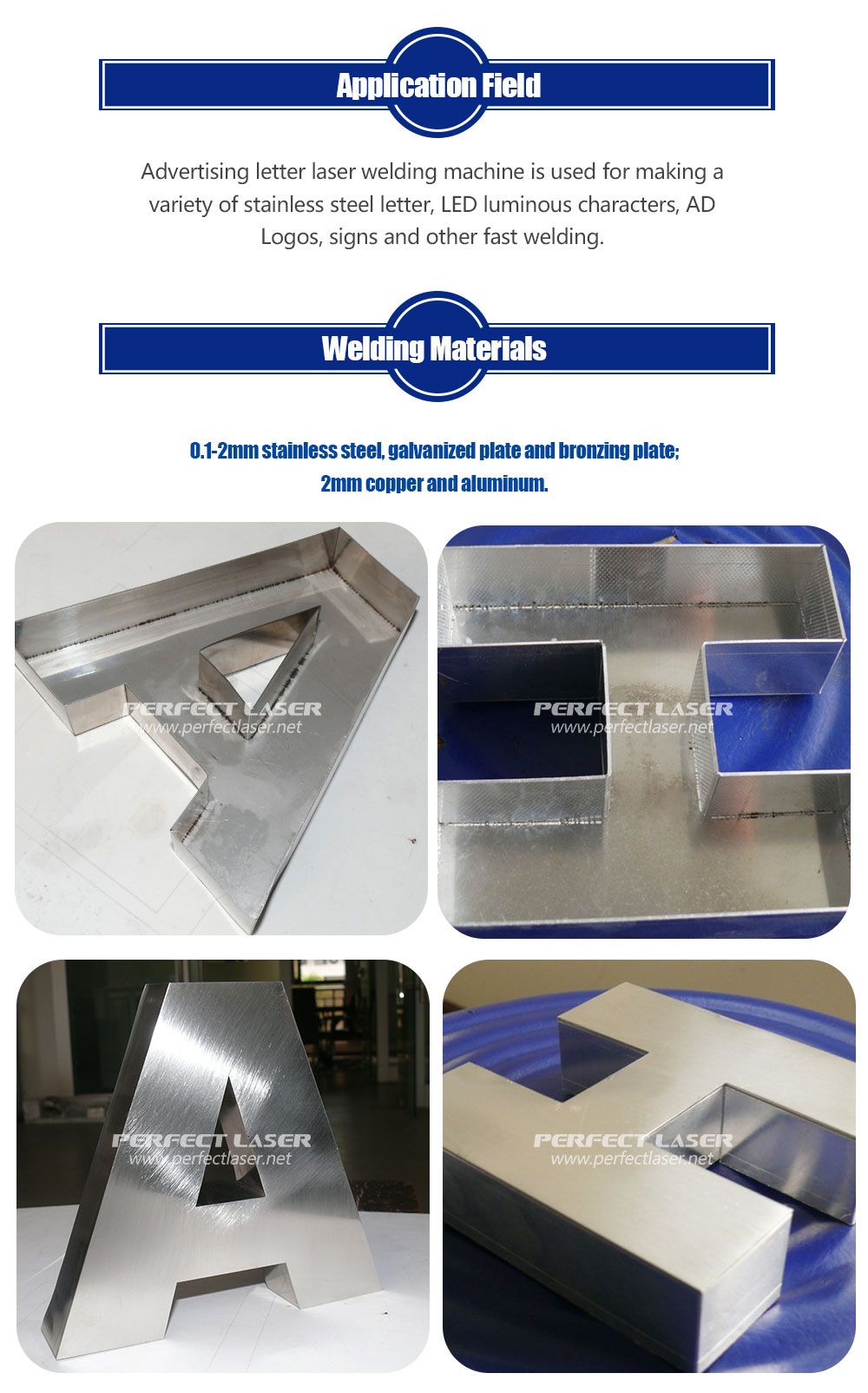

Application:Advertising letter laser welding machine is used for making a variety of stainless steel letter, LED luminous characters, LOGO, signs and other fast welding.
Keywords for Double Laser Path Welding Machine:

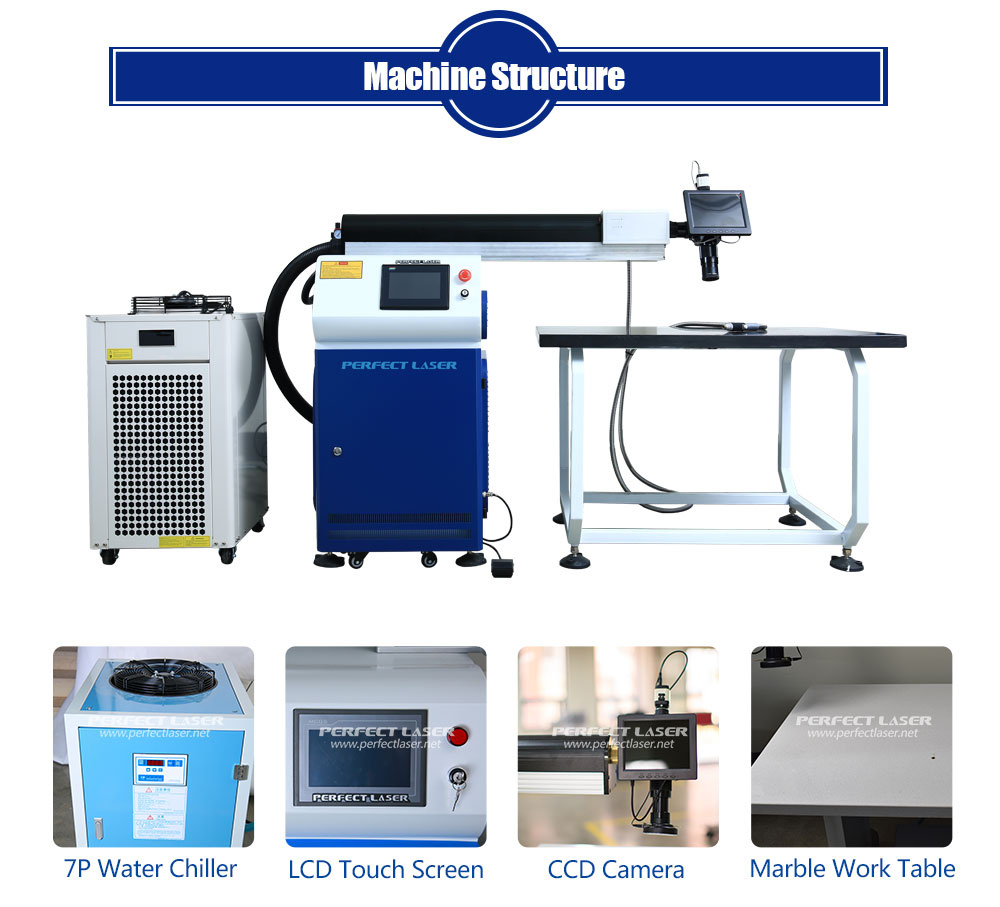

Handy Pen Laser Welding, CCD Monitor for Easy Observing, 1HP Water Chiller for Good Cooling, Non-contact High Accuracy Welding, Powerful Laser Beam
Technical data:| Advertising Letter Laser Welding Machine |
| Model | PE-W220 | PE-W300 | PE-W400 | PE-W450 |
| Max laser power | 220W | 300W | 400W | 450W |
| Laser wave-length | 1064nm |
| Single power energy | 90J | 90J | 100J | 110J |
| Welding Depth for Carbon Steel / Stainless Steel / Galvanized Steel / Golden-Plate Steel | 0.1-2mm | 0.1-2mm | 0.1-2mm | 0.1-2mm |
| Welding Depth for Brass, Aluminum | No | 0.1-1mm | 0.1-1.2mm | 0.1-2mm |
| Pulse width | 0.3-20ms |
| Welding frequency | 0.5-40HZ |
| Adjustable facular size | 0.2-2mm |
| Power consumed | ≤9KW |
| Laser Cavity | UK imported "Morgen" brand |
| Laser Lamp | Single lamp | Single lamp | Single lamp | Double lamp |
| Electrical source | 220V/1 phase / 50Hz/40A | 220V/1 phase / 50Hz/40A | 220V/1 phase / 50Hz/40A | 380V/3 phase/50hz |
| Standard worktable | 800*1000mm |
| Positioning | CCD Screen + Red Dot Pointer |
| 2-linertary | 200mm |
| Mobile level | 200mm |
Need more info, please kindly with me now >>>>>>>>>>>>>>>>
Price, technical data,working video,etc will be sent in receipt of your reply.
