Product Specifications
| Prod Model: |
DW-L1390 |
| Laser Power: |
60W/80W/100W/130W/150W for Your Reference |
| Machine Application: |
Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: |
24 Months |
| Cutting Thickness: |
0-30mm |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: |
Redcam |
| Laser Tube: |
Reci/Yongli/Efr etc |
| System: |
Leetrol or Redcam |
| Table: |
Honey Nest or Blade Table |
| Certification: |
Ce, FDA |
Product Description

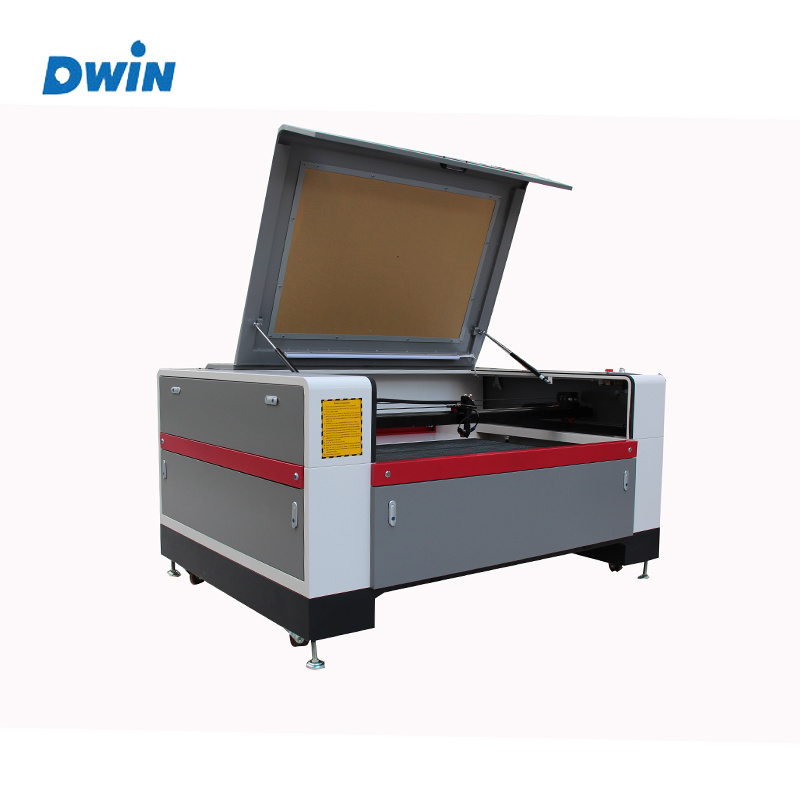

Acrylic Leather/MDF Glass Plastic Paper CO2 Laser Cutting Engraving Engraver
Product Features CO2 Laser cutting/engraving machines series are very popular in the market around the world. They have high stability and accuracy. Quality and price ratio is high.
They employ stepper motor and driving system imported from USA.

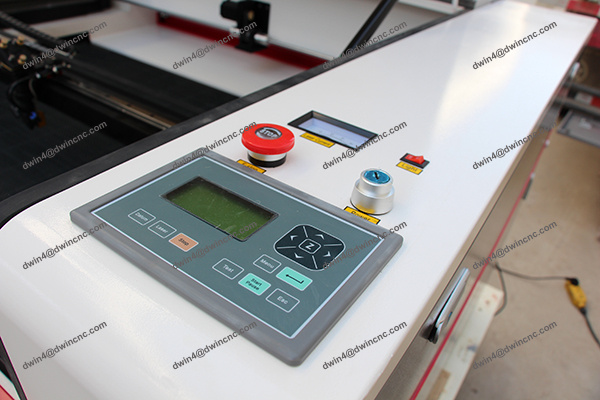

LCD, PCB lamp motherboard, USB port
Water-cooling system, domestic -made 70W CO2 Laser

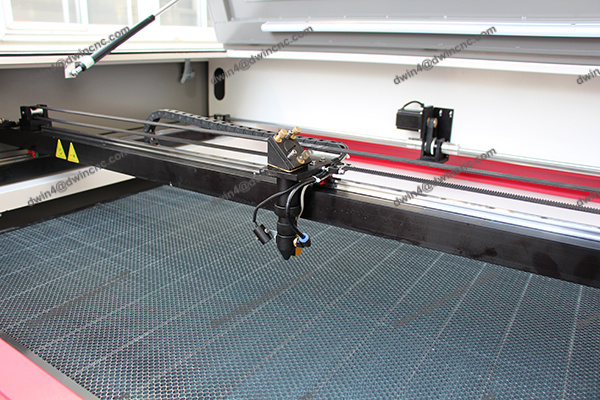

Origional straight-line-guiding-track from Japan.
Machine Parameter
| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 130cm*90cm(L*W) |
| 3 | Laser power | 40W/60W/80W/100W/130W |
| 4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Applicable materials:Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
