Product Specifications
| Prod Model: |
Murphy-Jet |
| Printer Model: |
A3 Size Murphy-Jet Digital UV Flatbed Printer |
| Printing Technology: |
Micro Piezo |
| Print Head: |
Dx5 |
| Ink Type: |
UV Curing Ink, Soft UV Ink, Flexible Ink |
| Color: |
8color Cmyk+Wwww |
| Printing Size: |
33*60cm |
| Printing Material: |
Metal, Glass, Crystal, Tile Ceramic, Acrylic, PVC |
| Media Thickness: |
170mm |
| Rip Software: |
Focusrip V8.2.6 |
| Plate: |
Relief Printing |
| Structure: |
Flat-Bed Cylinder Press |
| Color & Page: |
Multi-Colour Printing Press |
| Printing Interface: |
USB3.0 |
| System Supported: |
Windows7/8/10/XP |
| Printing Speed: |
80s/Full Size |
| Usage: |
Phone Case Printer |
Product Description

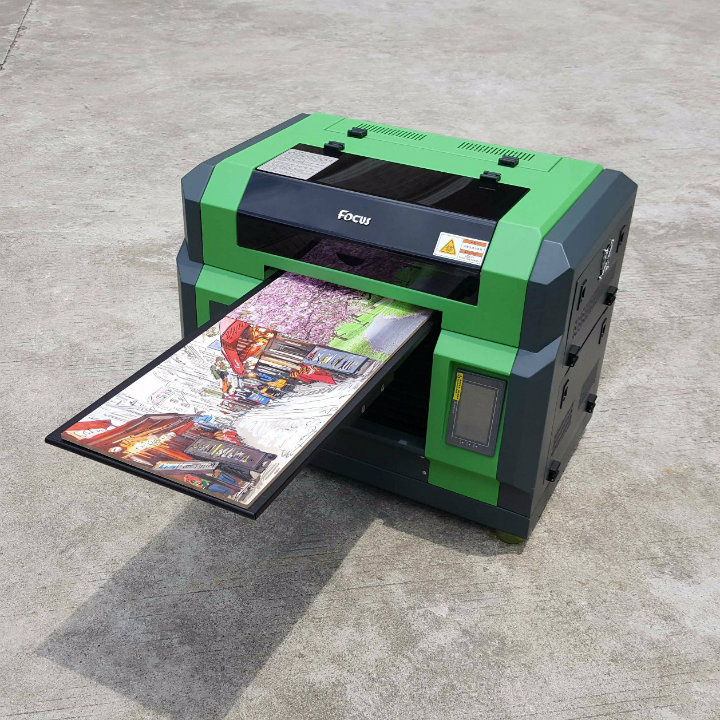

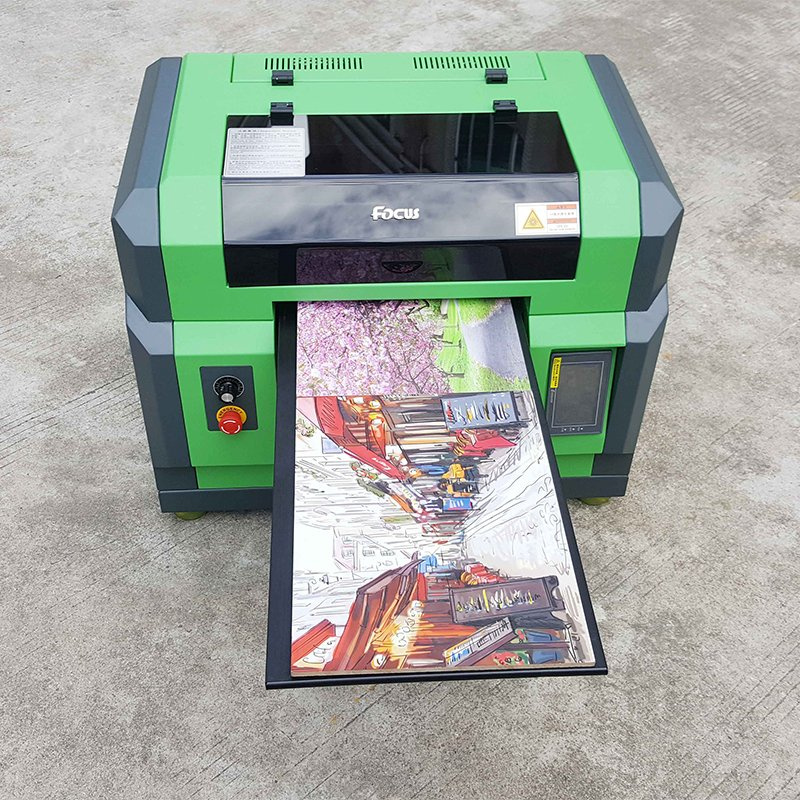

A3 size Murphy-Jet digital uv flatbed printer
General Explaination:A3 size Murphy-Jet digital uv flatbed printer was specical designed for customer who want to get a industrial printing speed and commercial printing result, special for customer who want to get a vivid color result and high density of white ink printing. Also this ceramic tile printing machine was built with industrial level configuration as Linear rail for both X carriage and Y flatbed motion. Dual Servo motor go with the Ball screw to let the motion with high precision. Also the one pass printing model (Print white ink and color ink in one time) and high carriage printing frequency up to 18000K can save the time and improve the printing speed for customers with this stable printing effect.
A3 size Murphy-Jet digital uv flatbed printer can print on metal, glass, crystal, tile ceramic, acrylic, phone case, PVC, PU, Leather, Silicome, wooden... ...No matter what material printed on, it will dry immediately. The speed for printing 1 iphone 5s case about 1-2min. Please check the clear explaination as following:
Specification| Model | A3 size Murphy-Jet digital uv flatbed printer |
|
| Print Method | Eightcolor On-demand inkjet (micro piezo print technology, intelligence drops transformation technology) |
| Print head | R2000 with DX5 MicroPiezo print head |
| Printer resolution | 5760*1440dpi |
| Print speed (Two heads) | 80seconds / Full 27*55cm size |
| Max. media thickness | 170mm |
| Print direction | Unidirection / Bidirection |
| Ink cartridge type | Split type |
| Minimum ink drop size | <1.5PL |
| Ink cosume | 15-20ml/squre meter |
| Ink supply system | CISS |
| Ink configuration scheme | 8 color: CMYK+WWWW |
| Max printable area | A3 270 *550mm |
| Max adjustable height | 170mm |
| Max object thickness | 160mm |
| Printing gap | 1mm-5mm |
| Height adjust | electric |
| Printing resolution | 720*360dpi / 720*540dpi/ 720*720dpi/ 720*1080dpi 720*1440dpi / 720*2160dpi/ 720*2880dopi |
| Speed | 400 Mbp |
| Support Ink type | LED-UV Curing ink /soft uv ink/ flexible ink |
| Color management | ICC Curve &Default ICM |
| Rip software | FocusRIP-8.2.6 / Photoprint servo |
| Printhead Protection | Intelligent Self Protect System |
| Power | 100-120V/200-240V 50-60HZ (Special requirements can be customized) |
| Printing Interface | USB2.0/3.0/LTP |
| Operation System | WindowsXP/32bit, WIN7/32bit |
| WindowsXP/64bit, WIN7/64bit |
| Working Environment | 50%humidity, 21-29Degree, Clean room, low dust, less sun light, good |
| Printer Size | L900mm*W750mm*H600mm |
| Shipping Size | L1080mm*W950mm*H850mm |
| Printer N.Weight/G.Weight | 80KG/140KG |
Technicial Features1. A3 size Murphy-Jet digital uv flatbed printer refit the original EP R2000 printer with DX5 MicroPiezo print head, greatly save cost, and adhering to the high precision, high speed function.
2. All materials about our Murphy-Jet is Aluminum. And you can see whole Alumium without srew. Cause we useFamouse Brand BROTHER Technology to open moulding for it.
3. All motor in Murthy-Jet New style flatbed printing machine Murphy-Jet UV led printer for ID card are serve motor. It's very important for keeping frquency about the printer. Then you can get the best printing effect.
4. Each printer must go through shaking test before packing. And all of them will shake for 24-48hours. We want to make sure about the quality of each printer. This is our responsibility for each customer.
Printing Samples:
Packing and Delivery
| Packing Details |
| Size | L1080mm*W950mm*H850mm |
| Weight | 140KG |

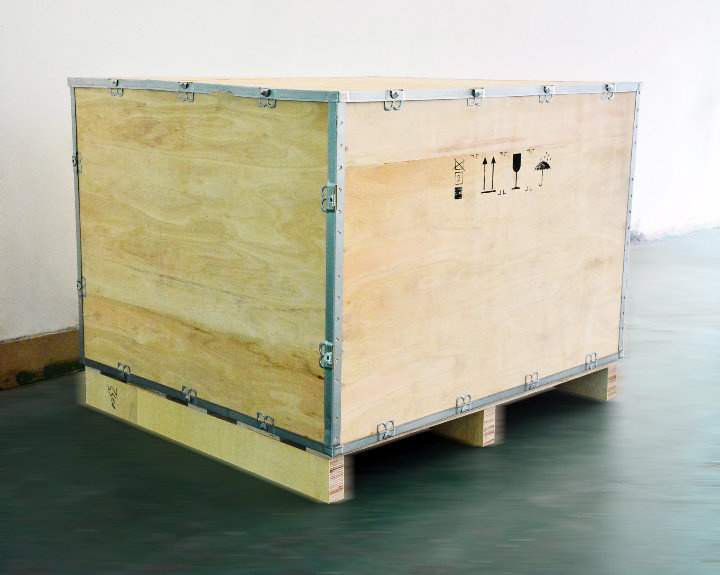

| Details | 1. The normal package is wooden box. 2.The wooden box will be fumigated. If container is too tighter, we will use pet film for packing or pack it according to customers special request. |
| Delivery | 5-7 working day after received full payment, express, sea and air transportation for optional choose |

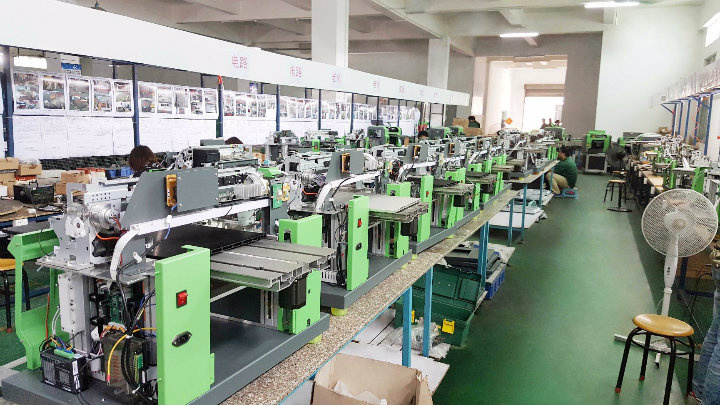

Our Factory
Warranty 1.We provide 13month warranty since the shippin date.
2.We have completely english instruction video and manual for you.
3.We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
