Product Specifications
| Prod Model: |
LX-YB-9W |
| Open Hole: |
¢120mm |
| Operating Temperature: |
-20ºC-55ºC |
| Luminous Flux: |
1100-1200lm |
| CIR: |
Ra70-80 |
| Chip: |
Epistar |
| PF: |
>0.8 |
| OEM&ODM: |
Yes |
| Source Number: |
Single Plug |
| Installation: |
Embedded |
| Lamp Installation: |
Screw Holder |
| Switch Type: |
Touch On/Off Switch |
| Warranty: |
2 Years |
| Application: |
Super Market/Shop/Home Decoration etc. |
| IP Rating: |
IP44 |
| Certification: |
SAA |
| Color Temperature: |
2500K-9000K |
| Lamp Body Material: |
Al |
Product Description
Shandong Liaocheng Luxing Lighting Co.,Ltd professional in manufacture of LED light,our main product contain LED Tube / LED Flood Light / LED Ceilling Light / LED Down Light / LED Track Light and LED Project Light.We hope to setup long term win-win cooperation with you.
LED Down Light Description:

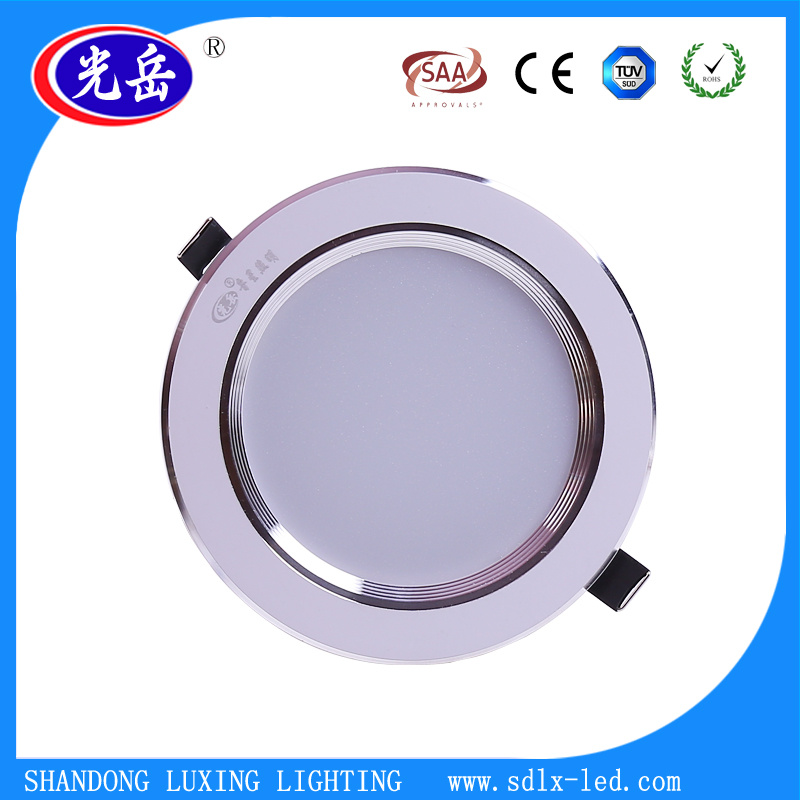

9W LED Down light/Crystal Chandelier
Features:
1.High efficiency and energy conservation, in the same bright, anti-glare can protect eyesight.
2.Beauty appearance, practical, great heat dissipation, high brightness, low brightness declines.
3.LED ceiling light doesn't contain mercury and other harmful substances, non-UV light without flicker, protection your eyes isn't easy to fatigue, no noise, ensure that the use of comfort and security.
LED DownLight Specification:
| Specification | 3w | 5w | 7w | 9w | 12w |
| Lamp Size | ¢105*H45mm | ¢120*H56mm | ¢120*H56mm | ¢140*H72mm | ¢160*H70mm |
| Open Hole | 75mm | 80mm | 105mm | 120mm | 140mm |
| Materials | AL+Plastic Lens |
| Input Voltage | AC85V-265V |
| Light Angle | 80° |
| Work Temperture | -20ºC-55ºC |
| Life Time | 50000H |
| PERFORMANCE: | |
| Luminous Flux | 300-350lm | 550-650lm | 750-850lm | 1100-1200lm | 1350-1450lm |
| Color Temperture | 2500-9000k |
| CRI | Ra>75 |
| Power Factor | PF>0.9 |
| Quality Guarantee | 2 Year |
| Packing: | |
| Carton Size | L35*W35*H30cm | L60*W48*H40cm | L60*W48*H40cm | L64*W52*H38cm | L60*W58*H40cm |
| Carton Capacity | 100Pcs/Ctn | 75Pcs/Ctn | 75Pcs/Ctn | 60Pcs/Ctn | 30Pcs/Ctn |
| Carton Weight | G.W.:13.5kg | G.W.:14kg | G.W.:14.5kg | G.W.:16kg | G.W.:13kg |
Advantages:
1.Energy-saving, Environment friendly.
2.Lead free, Mercury free, Eco-friendly, Recyclable.
3.Start without delay, No glare, No strobe light.
4.Excellent heat sink, low light decay.
5.Long lifetime >50, 000 hours.
Main Product:
1, LED Tube (9W LED Tube/18W LED Tube)
2, LED Flood Light (30W LED Floodlight / 50W LED Floodlight / 100W LED Floodlight / 150W LED Floodlight / 200W LED Floodlight)
3, LED Down Light (3W LED Downlight / 5W LED Downlight / 7W LED Downlight / 9W LED Downlight / 12W LED Downlight / 15W LED Downlight / 18W LED Downlight )
4, LED Ceilling Light (3W LED Ceiling Light / 5W LED Ceiling Light / 7W LED Ceiling Light / 9W LED Ceiling Light / 12W LED Ceiling Light / 15W LED Ceiling Light / 18W LED Ceiling Light )
5, LED High Bay Light (50W LED High Bay Light / 100W LED High Bay Light / 150W LED High Bay Light / 200W LED High Bay Light )
6, LED Track Light (20W LED Track Light / 30W LED Track Light)
7, LED Bulb (3W LED Bulb / 5W LED Bulb / 7W LED Bulb / 9W LED Bulb / 12W LED Bulb / 15W LED Bulb 18W LED Bulb / 24W LED Bulb/ 48W LED Bulb)
FAQ:
Q: What is the lead time?
A: Sample is 2-3 working days, mass production time is 15 working days.
Q:Do you provide samples?
A:We provide free samples with small quantity. You just need to offer air courier account for freight collect or pay air courier fee to our account.
Q: Do you have warranty for products?
A:Yes, we offer one year warranty for our LED products.
Q:What is your replacement policy?
A:We offer free replacement more than 5% dead LED lights in warranty time. We will send those replacements together with new order.
Q: How about the package of the products? It is branded or neutral?
A: As a factory all of packages is neutral to support trading company and wholesaler and distributor from all over the world.
Q: How many years do you manufacturer for the LED compact fluorescent bulb?
A: We are specialized in LED spotlight for 8years.
Shsnong Liaocheng Luxing Lighting Co. Ltd. Founded in 2010 located in Liaocheng city, Shandong Province, China. As high-tech company engaged in induction lamp R&D, manufacturing and marketing.
With many years of LED lighting products manufacturing experience, the ability to continuously improve the quality, and the ability to quickly respond to the needs of the market, Luxing has become the mainstream supplier of LED lighting products in the high-end market. To provide customers with a full range of LED lighting solutions, and customers to establish a strategic partnership, and constantly enhance the company's brand image is the company each employee abide by the guidelines.
The company specializing in the production of LED series of products, including: LED display, LED point source, LED high power wall lamp, LED street light, LED high power LED street lamps, garden lights, LED wall lamp, LED lawn lamp, LED underwater lights etc.
Shandong Liaocheng Luxing Lighting Co. Ltd. Adhering to the "people-oriented, leading innovation, quality first, service first" principle, follow the "professional focus, integrity and sincere" business philosophy, the implementation of "quality oriented, integrity first, quality policy of continuous innovation", make "Shandong Star" brand establish a corporate image, to provide excellent quality products to customers, contribute to the world open up a new era of green lighting.
Best products, service and creative solution is what we supply! Luxing undertakes OEM/ODM service for customers. We hope to establish a close cooperation with you to build green world.
