Product Specifications
| Prod Model: |
DW960 |
| Laser Power: |
60W/80W/100W/130W/150W for Your Reference |
| Machine Application: |
Non Metal, Such as Wood, Acrylic, MDF, Leather etc |
| Machine Warranty: |
18 Months |
| Cutting Thickness: |
0-30mm |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Control Configuration: |
Redcam |
| Laser Tube: |
Reci/Yongli/Efr etc |
| Motor: |
Servo or Stepper Motor |
| System: |
Leetrol or Redcam |
| Machine Package: |
Veneer Case |
Product Description

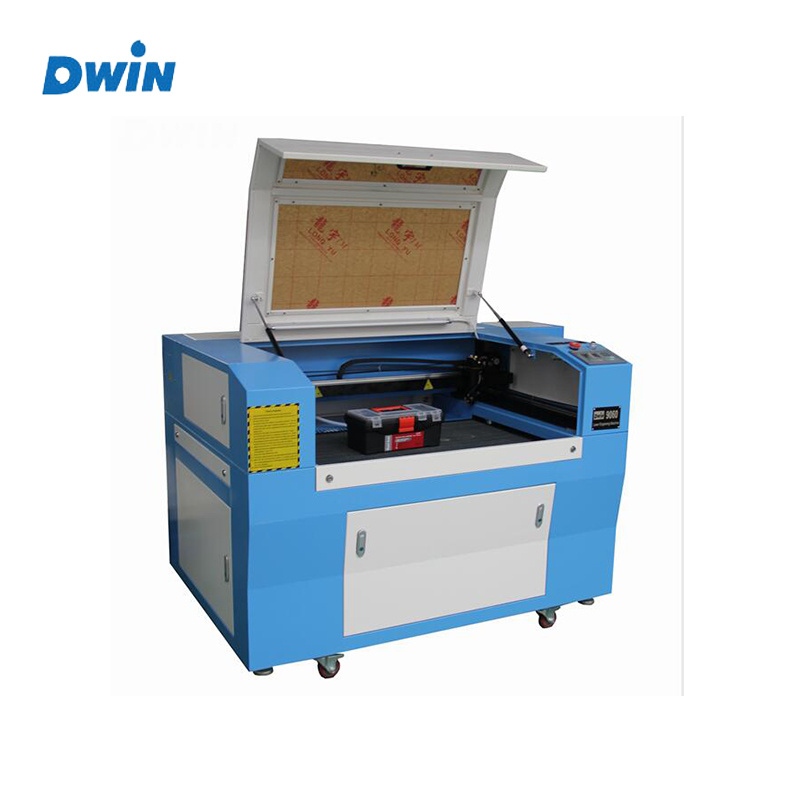

90W 1390 Co2 cnc Acrylic Laser Engraving Cutting Machine price
laser engraving cutting machine can engrave and cut on all kinds of the nonmetallic craft works, gifts,acrylic and wood products.
The structure is more compact and reasonable ,electric performance is steady,with the fast engraving and cutting speed and the higher precision also can engrave beautiful portraits/pictures on all kinds of nonmetal materials surface,can also engrave diversified marked and brands,this is a cnc laser machine with good performance and low price.
Applicable materials:Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc
Applicable industry:billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc
Machine Parameter
| 1 | Model | DW960 laser engraving machine used |
| 2 | Working area | 90cm*60cm / 35in*24in (L*W) |
| 3 | Laser power | 40W/60W/80W |
| 4 | Laser type | CO2 sealed laser tube,water-cooled |
| 5 | Engraving speed | 0-60000mm/min |
| 6 | Cutting speed | 0-10000mm/min |
| 7 | Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| 8 | Min. shaping character | Letter 1.0 x 1.0mm |
| 9 | Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| 10 | Software supported | CorelDraw, PhotoShop, AutoCAD |
| 11 | Laser Output Control | 1-100% software setting |
| 12 | Highest Scanning Precision | 2500DPI |
| 13 | Resolution ratio | < 0.01mm |
| 14 | Location precision | <0.01mm |
| 15 | Working temperature | 5°C-40°C |
| 16 | Operating humidity | 5%-95%(without condensed water) |
| 17 | Equipment Dimension | 1420mm*1100mm*1070mm/57in*43in*42in (L*W*H) |
| 18 | Net Weight | 300kg |
| 19 | Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
Guarantee & After sales service:1. 24 months quality guarantee for the main parts of the machine, excluding consuming parts, and the main parts shall be changed free of charge during the warranty time
2. Lifelong maintenance for the machine, and lifelong technical support from sophisticated English-speaking engineer team.
3. Free training course at our plant
4. We will provide the machine consuming parts with factory price when you need replacement.
5. 24 hours online service each day, free technical support.
Welcome to contact with Judy.
Whats app number: 0086 176 1583 8486
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.
Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
