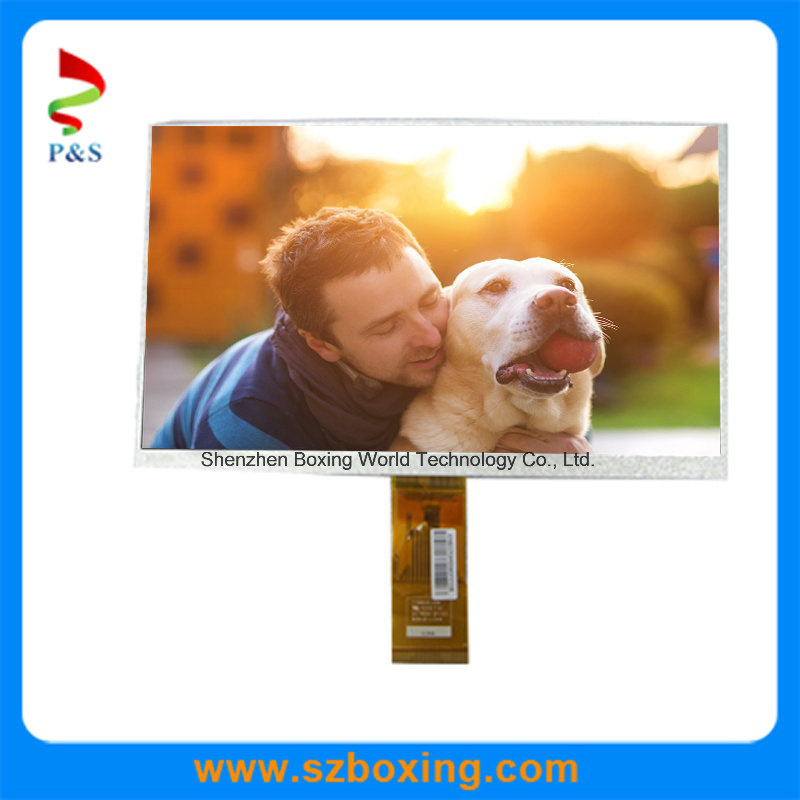

9.0" TFT LCD Screen From CPT

Product Specifications

Prod Model:	CLAA090NA06 CW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	9.0 Inches
Resolution:	1024(RGB)*600
Brightness:	500CD/M2
Contrast Ratio:	800
Pin Number:	40 Pins
Usage:	Small-sized LCM
Digital LCD Module Type:	Timing Module
Type:	LCM
Viewing Angle:	TN＋FILM
Display Technology:	TFT

Product Description

Model: CLAA090NA06 CW

1. General Description

CLAA090NA06 CW is 9" color TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit and LED backlight. By applying 1024× 600 images are displayed on the 9" diagonal screen. Display 16.2M colors by R. G. B signal input.


2. General Specification

LCD digital: TFT digital
Resolution: 1024(H) × 3 (RGB) × 600(V)
Brightness: 500cd/m2 (typical)
Module Size: 211.1 x 126.5 x 5.7 mm
Display area: 196.608(W) x 114.15(H)
Contrast ratio: 800: 1 (typ. )
Pixel arrangement: RGB vertically stripe
Display mode: Normally white
Surface treatment: Anti-glare
Operating temperature: -20 to 70degree
Storage temperature: -30 to 80degree
Viewing angle: 70/70/50/70 degree
Backlight: LED
Compliant with the RoHS Directive
Compatible with NTSC & PAL system
Image Reversion: UP/DOWN and LEFT/RIGHT

3. Application area

PDAS/consumer electronics/automotive/ telecoms and data transfer/medical instruments/security management /signs and display/point of sale, EPOS /Energy control/amusement and gambling machines/white goods, GPS navigator

4. Company Advantage

1). Small MOQ accepted.
2). Competitive price and short lead-time.
3). ISO9001 and RoHS certificated factory supplied.
4). TFT LCD module, touch panel, PCB with SMT/COB solutions.

5. Packaging and Delivery:

1). Payment Terms: T/T, Paypal

2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.

3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.

4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation

5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.

Optical Specifications
Item	Symbol	Condition	Values			Unit
			Min.	Typ.	Max.
Viewing angle(CR≥10)	θL	Φ=180°	60	70	-	degree
	θR	Φ=0°	60	70	-
	θT	Φ=90°	40	50	-
	θB	Φ=270°	60	70	-
Response time	TON	Normal θ=Φ=0°	-	25	40	msec
	TOFF		-	25	40	msec
Contrast ratio	CR		640	800	-	-
Color Chromaticity	WX		0.264	0.304	0.334	-
	WY		0.295	0.335	0.375	-
Luminance	L		400	500	-	cd/m2
Absolute Max.Rating
Item	Symbol	Value			Unit	Remark
		Min	Typ	Max
Operating temperature	TOPR	-20	-	70	degree	-
Storage temperature	TSTG	-30	-	80	degree	-
Backlight Driving Conditions
Item	System	Value			Unit	Remark
		Min	Typ	Max
Voltage for LED Backlight	VL	8.55	9.6	10.65	V
Current for LED Backlight	IL	-	260	-	mA
LED Life time	-	30,000	-	-	Hr
