Product Specifications
| Prod Model: |
AA-005 |
| MOQ: |
500m2 |
| Delivery Time: |
2 Weeks |
| Shape: |
Flat |
| Structure: |
Solid |
| Function: |
Building Glass |
| Thickness: |
Thick Sheet Glass |
| Nominal Thickness: |
8mm |
| Surface State: |
Floats Law Glass |
| Grade: |
Excellent Grade |
| Forming: |
Float Process |
| Workmanship: |
Molding machinery |
| Color: |
Clear |
| Usage: |
etc |
Product Description
Brief introduction of Ultra Clear GlassUltra clear glass is low iron glass with high light transmittance.It is high grade,multifunctional new glass,and generally its light transmittance is higher than 91%.It is crystal clear and is crowned as"crystal prince"of glass family.
Jinjing ultra clear glass has super physical,mechanical and optical characteristics,Like regular glass it can be fabricated,e.g.,being tempered,coated,silk printed,heat bended, laminated,and being made into double glazing units.
With its crystal clear appearance,Jinjing ultra clear glass has become a highlight in world architectural industry.It not only brings benefit on energy saving and environment protection,but also has modern fashionable style,and can arouse designers'creation and inspiration.Combining its excellent optical character with PE technology,Jinjing ultar clear glass has been applied in a new area,or on PE glass curtain.PE glass curtain has many functions,e.g.,power generating,sound insulation,heat obstructing,safety,and decoration.We have very high expectation on the outlook of this kind of PE curtain.
| Name | Ultra Clear Glass/Float Glass/Clear Glass for Building&Optics |
| Thickness | 2mm-25mm |
| Size | 2440mm*3300mm 2440mm*3660mm 2134mm*3660mm,etc |
| Color | Clear |
| Application | Window\Building\Furniture\Door\Mirror.etc |
| Certificate | CE\ISO9001 |
| Brand | G-CRYSTAL(Low iron float glass) |
| Payment Terms | L/C T/T |
| MOQ | 500m2 |
| Package | Wooden Crates |
| Delivery Time | Within 2 Weeks After Desposit |

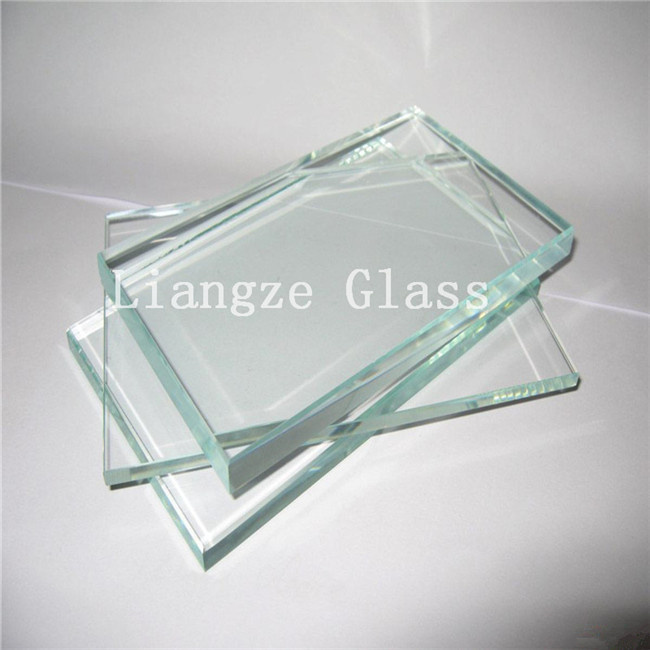

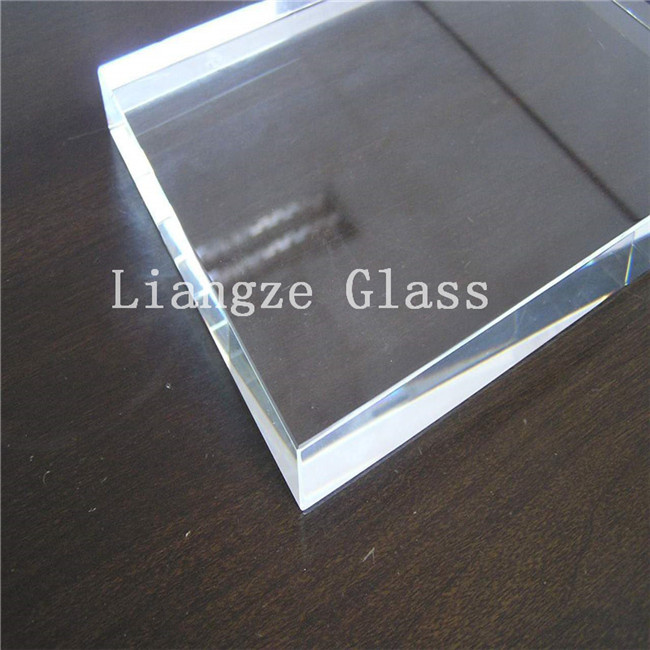

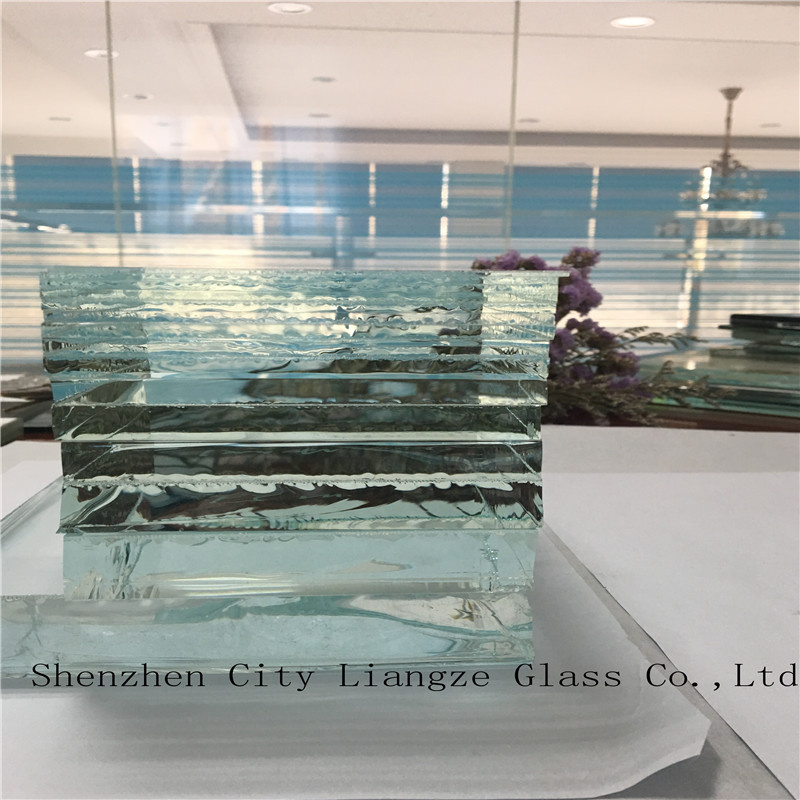

Product pictures
Product Technical Parameters
Optical ParametersThick-
ness | Visible
Light
Transmi-ttance | Visible
Light
Reflec-tivity | Direct
Penetrate | Solar Radiant Heat | Shading Coeffcient | U value
(W/m2k) |
| Reflect | Absorb | Total
Penetrate | Short
Wave | Long
Wave | Total |
| 3mm | 91.60% | 8% | 90% | 8% | 1% | 91% | 1.05 | 0.01 | 1.05 | 5.8 |
| 3.2mm | 91.60% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 |
| 4mm | 91.40% | 8% | 90% | 8% | 2% | 91% | 1.03 | 0.01 | 1.05 | 5.8 |
| 5mm | 91.30% | 8% | 90% | 8% | 2% | 90% | 1.03 | 0.01 | 1.03 | 5.8 |
| 6mm | 91.10% | 8% | 89% | 8% | 3% | 90% | 1.02 | 0.01 | 1.03 | 5.7 |
| 8mm | 91% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.01 | 1.02 | 5.7 |
| 10mm | 90.60% | 8% | 88% | 8% | 4% | 89% | 1.01 | 0.02 | 1.02 | 5.6 |
| 12mm | 90.40% | 8% | 87% | 8% | 5% | 88% | 1 | 0.02 | 1.01 | 5.5 |
| 15mm | 90.10% | 8% | 86% | 8% | 6% | 87% | 0.99 | 0.02 | 1 | 5.5 |
| 19mm | 89.70% | 8% | 84% | 8% | 7% | 86% | 0.97 | 0.02 | 0.99 | 5.5 |
| 22mm | 89.60% | 8% | 82% | 8% | 9% | 85% | 0.95 | 0.02 | 0.97 | 5.5 |
| 25mm | 89% | 8% | 81% | 8% | 9% | 84% | 0.95 | 0.02 | 0.95 | 5.5 |

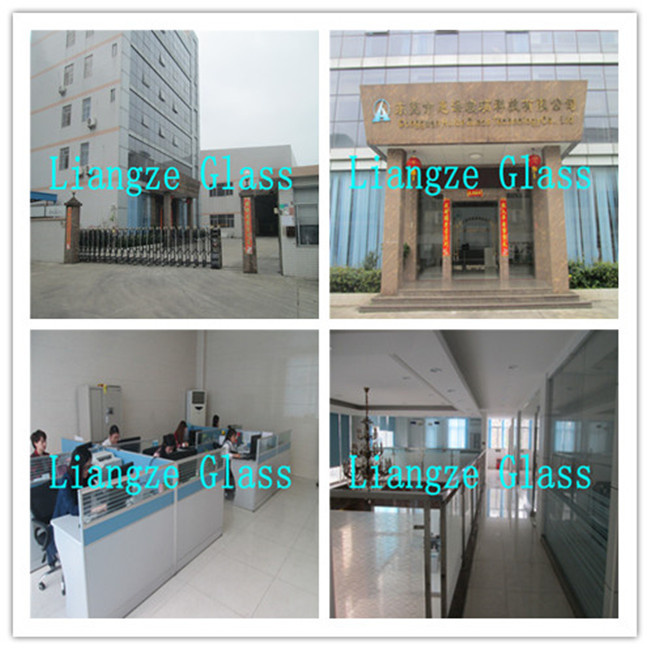

Company informationShenzhen City Liangze Glass Co., Ltd was established in 1986, covers an area of 8000 square meters, there are currently more than 60 employees, including professional and technical personnel more than 20 people, is the Shenzhen Administration for Industry and Commerce approved the establishment of large-scale private enterprises.
Our company supplies different kinds of products. Such as float glass/ultra clear glass/art glass/tinted glass/low-e glass/reflective glass/mirror glass/patterned glass /optical glass etc. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

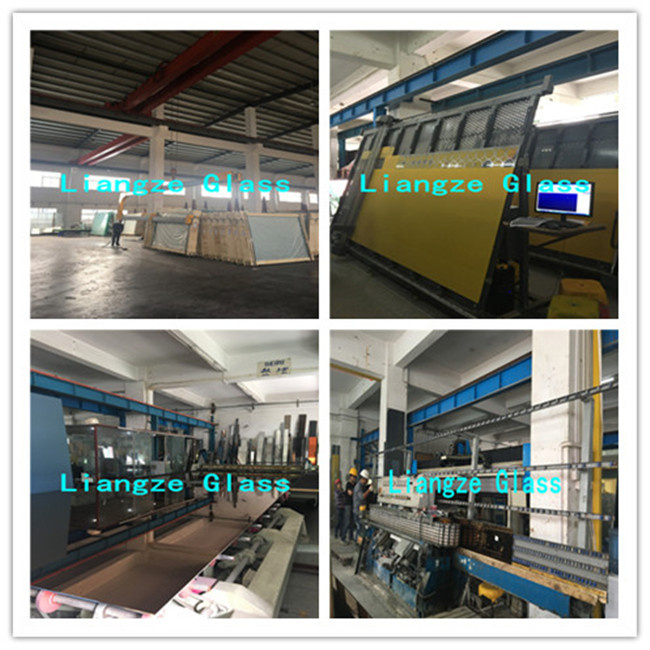

Workshop:
Packing:
FAQ:
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the glass depends on your requirements.
Q: What the your glass package ? Are they safe ?
A: Seaworthy strong plywood crates with paper interleave . The crates will be very strong and every loading worker has 10 years packed, loading and fixation crates with container experience. And we send the loading pictures for you after we loading .
Q: What is your payment term ?
A: Our payment term is T/T 30% in advance ,70% after get the copy of B/L .
If your glass quantity is less or customized, we want to TT 100% in advance . You can payment By T/T, L/C at sight.
Q: Can you supply a free sample ?
A: Yes, if you want us to provide big size sample according to your requirements, you should pay the cost of production.
Contact:
Shenzhen City Liangze Glass Co., Ltd
ADD:NO.18 Longteng Road,Longbeiling Community Tangxia Town,Dongguan City,China.
TEL:86 769 3893 5799
FAX: 86 769 3901 0351
Website:www.liangzeglass.com
By the way ,We are looking for foreign distributor,you could contact us if you were interested about it .
Shenzhen City Liangze Glass Co., Ltd was established in 1986, covers an area of 8000 square meters, there are currently more than 60 employees, including professional and technical personnel more than 20 people, is the Shenzhen Administration for Industry and Commerce approved the establishment of large-scale private enterprises.
Our company supplies different kinds of products. Such as float glass/ultra clear glass/art glass/tinted glass/low-e glass/reflective glass/mirror glass/patterned glass /optical glass etc. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
The best saler product in our company is Ultra Clear Glass.
Ultra clear float glass is also named low-iron glass, crystal clear glass, for they have higher light transmittance (91%) and transparency. Our production lines are imported from PPG (furnace and tin bath). We have total 9 production lines, the production volume is as high as 50 million USD dollars annually.
