Product Specifications
| Prod Model: |
84S |
| Markets: |
South America,Southeast Asia,Eastern Asia |
| Green: |
Good Quality |
Product Description

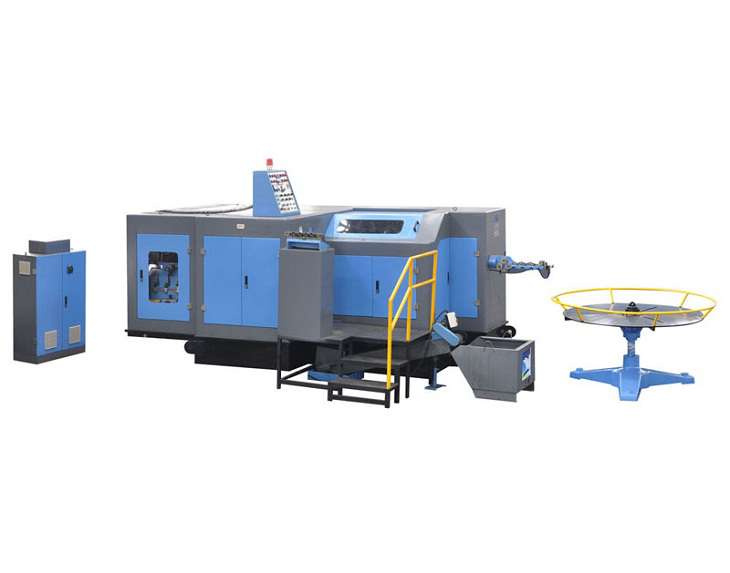

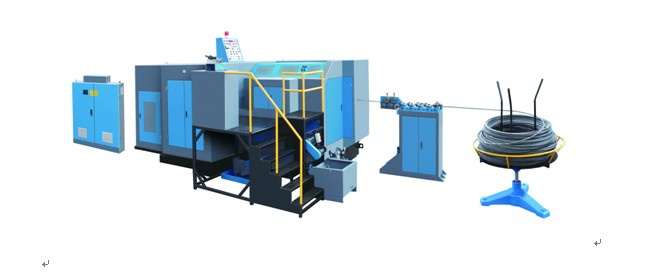

A.Description of goods:
Model SRH-84S
Number of forging Station 4
Forging Force kgs 60,000
Maximum Cut off Diameter mm 10
Maximum Cut off Length mm 115
Knockout stroke mm 92
Main ram stroke 160
Max punch knockout stroke mm 18
Over diameter of cut off die mm φ50x50L
Over diameter of punch die mm φ45x125L
Over diameter of main die mm φ60x130L
Main motor power kw 22
Output pcs/min 120-180
Die pitch mm 70
Shank Length of blank mm 15-90
Approx. Weight T 14
Quantity 1
Applicable bolt diameter mm 5-8
| Model | 64S | 164S |
| Number of Heading Station | 4 | 4 |
| Forging Force (kgs) | 35000 | 210000 |
| Maximum Cut off Diameter (mm) | 8 | 18 |
| Maximum Cut off Length (mm) | 80 | 195 |
| Product Shank Diameter (mm) | 3-6 | 10-16 |
| Max Die kick out stroke (mm) | 70 | 178 |
| Max punch knockout stroke (mm) | 12 | 40 |
| Main Ram Stroke (mm) | 110 | 260 |
| Main Die Size (mm) | 50x85L | 100X190L |
| Punch die dims (mm) | 40x90L | 75X185L |
| Cut-off die dims (mm) | 30x45L | 60X90L |
| Main motor power (KW) | 15 | 55 |
| Output (pcs/min) | 40-210 | 70-100 |
| Die pitch (mm) | 60 | 120 |
| Shank Length of blank (mm) | 10-65 | 70-100 |
| Approx. Weight (kgs) | 8000 | 45000 |
We are the biggest dealer in China. We can get the best price from Manufacture .
We can get lower price than you purchase from manufacture directly and we can give you best after-sale service.
We have engaged in exporting more than 20 years.
80% fasteners machine in INDIA Import from us.
Such as Deepak , Empire ,Poojafore , LPS they all use our machines.
We engaged in exporting good quality products. We can give you the best price and best after-sale services.
If you have any questions, we can send engineer to your city solve problem for you.
For any questions,please feel free to contact me.
Look forward to cooperate with you.
Best regards,
Crystal
HARBIN RAINBOW TECHNOLOGY Co., Ltd. Comes from China National Machinery Import and Export Corp. Harbin branch. By many years market development and experience accumulation, now we have became the biggest Chinese fastener equipment dealer and turnkey consultants of fasteners manufacturing project for abroad customers.
We are supplying high quality and reliable machines for the entire fastener industry with our professional and timely after sale service, our main products include wire drawing machine, Bolt Maker, Nut Maker, Part Former, Heading Machine, Thread Rolling Machine and Mesh Belt Furnace.
With our business reputation and professionalism, our company has experienced a significant growth in business during the recent years and invested in following companies: Zhejiang Shengrui Machinery Co., Ltd., Zhejiang Dongrui Machinery Industry Co., Ltd., Suzhou Industrial Park Wuzhong Electric Furnace Manufacturing Co., Ltd., and Wuxi Pingsheng Science & Technology Co., Ltd., etc. We do these factories' foreign market developing and have received highly praises from a lot of customers.
We have established reputation in countries such as India, Iran, US, Europe and Southeast Asia where we have core customer bases. Meanwhile, we are well respected by the domestic factories and the customers in the mechanical and electrical business.
We have the confidence, backed by our professional knowledge and experience in the mechanical and electrical business, to develop the foreign markets for our home enterprises and to open up the Chinese markets for the companies abroad.
We abide by the principles of honesty, credibility, and mutual-benefit, and do our best to serve clients and customers both at home and abroad. With our top-notch professional knowledge and trading experience, we have seen our market development ability and actual business growth with an increasingly faster pace. We sincerely look forward to working with you to facility your company's foreign market development and China market expansion. Let's build a great future together!
