Product Specifications
Prod Model: |
SCU1290 |
Terms: |
Technical Parameters |
Model: |
Scu1290 |
Power: |
Metal RF 30W Laser Tube |
Software: |
Rdcam |
Controlling System: |
Rd System |
Idle Speed: |
≤1200mm/S |
Min. Line Width: |
0.2mm |
Drive: |
Stepper Motor Drive/Servo Motor Drive |
Net Weight: |
60kg |
Package: |
Standard Crate for Export |
Product Description

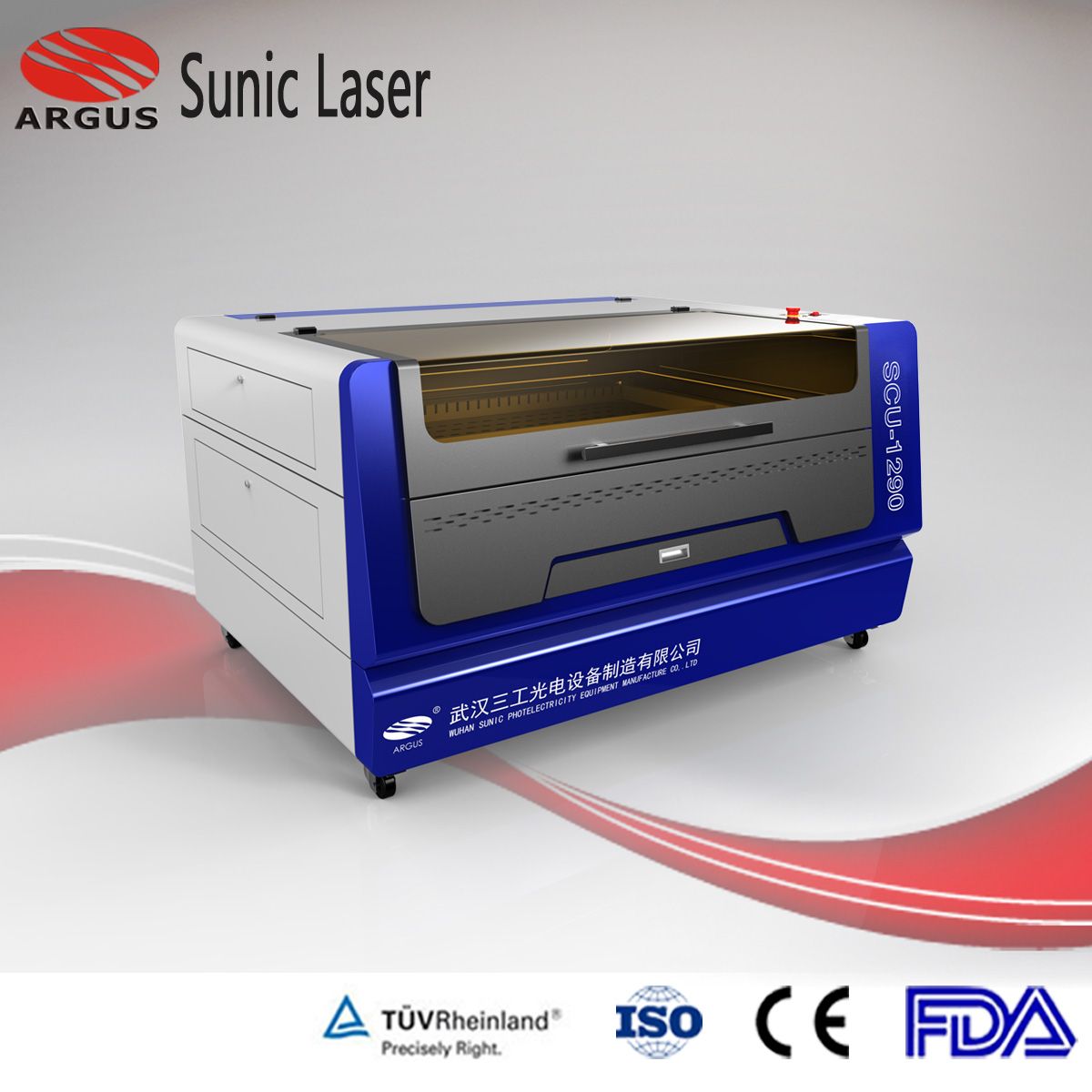

Laser Cutting Machine For Leather Paper

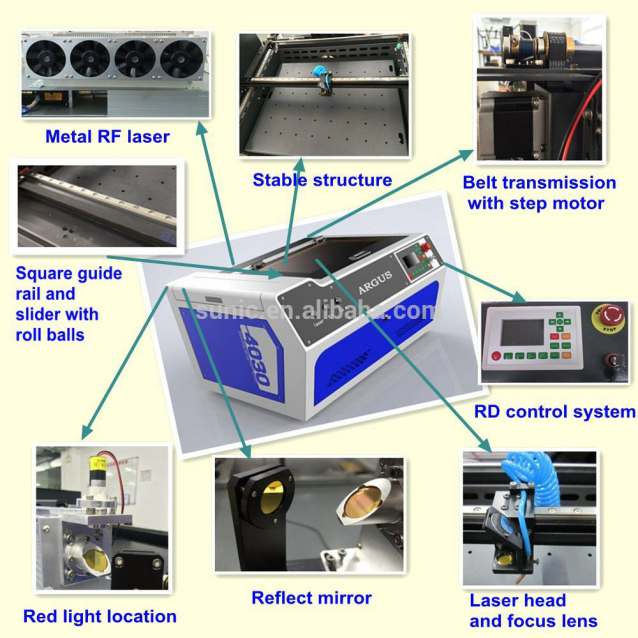

Equipment Performance of Portable Laser Cutting Machine : *Designed for engraving nonmetals and painted metals.
*Unique designed engraving motion system with , providing efficiency work.
*Max.Practical Engraving Speed 1200mm/s.
*Multifunctional Red Light Indication, can be use to adjust optical path.
*High quality&frequency laser beam, spot diameter<0.2mm, more accurate.
*Metal RF laser tube, long lifespan, after inflation can be use again.
*Desktop type, can be set on the desk.Technical Parameters of Portable Laser Cutting Machine SCU4030:Terms | Technical Parameters |
Model | SCU1290 |
Working platform size | 1250X900mm |
Power | Metal RF 30w Laser Tube |
Controlling system | RD System |
Software | RDCAM |
Drive | Stepper Motor Drive/Servo Motor Drive |
Transmission | Belt Transmission/Ball Screw Transmission |
Support format | PLT, BMP, DXF, T100, etc |
Process Material | Nonmetals, Painted Metals |
Idle speed | ≤1200mm/s |
Repeated accuracy | ≤±0.025mm |
Min. line Width | 0.2mm |
Cooling ways | Forced-air Cooling |
Working temperature | 0-35°C |
Working humidity | 5-95% |
Working Power | 220V/50Hz/1.5kVA(Customized) |
Auxiliary Equipment | Air pump, Exhaust Fan |
Up & Down Table | 15cm adjustable, or customized |
Optional configuration | Rotary Device |
Dimension | 2185x1465x1260mm |
Net weight | 60KG |
Package | Standard Crate for export |
Samples: Applicable Fields & Materials: The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on.
*Handcraft industry. Plywood,Glass,Marble,Density board,Gifts,Trophy, Marks, Key chains.
*Furniture, Wood,Bamboo,MDF, Home textile, Seat Cushions,Ceramic.
*Advertising industry, Advertising plate, Acrylic, Plastic, PVC,Signs.
*Garment,Jeans,Leather,Chemical leather, Shoes material.
*Decoration, Paper Board,Organic glass,Vases,Derma.
*Model manufacturing.

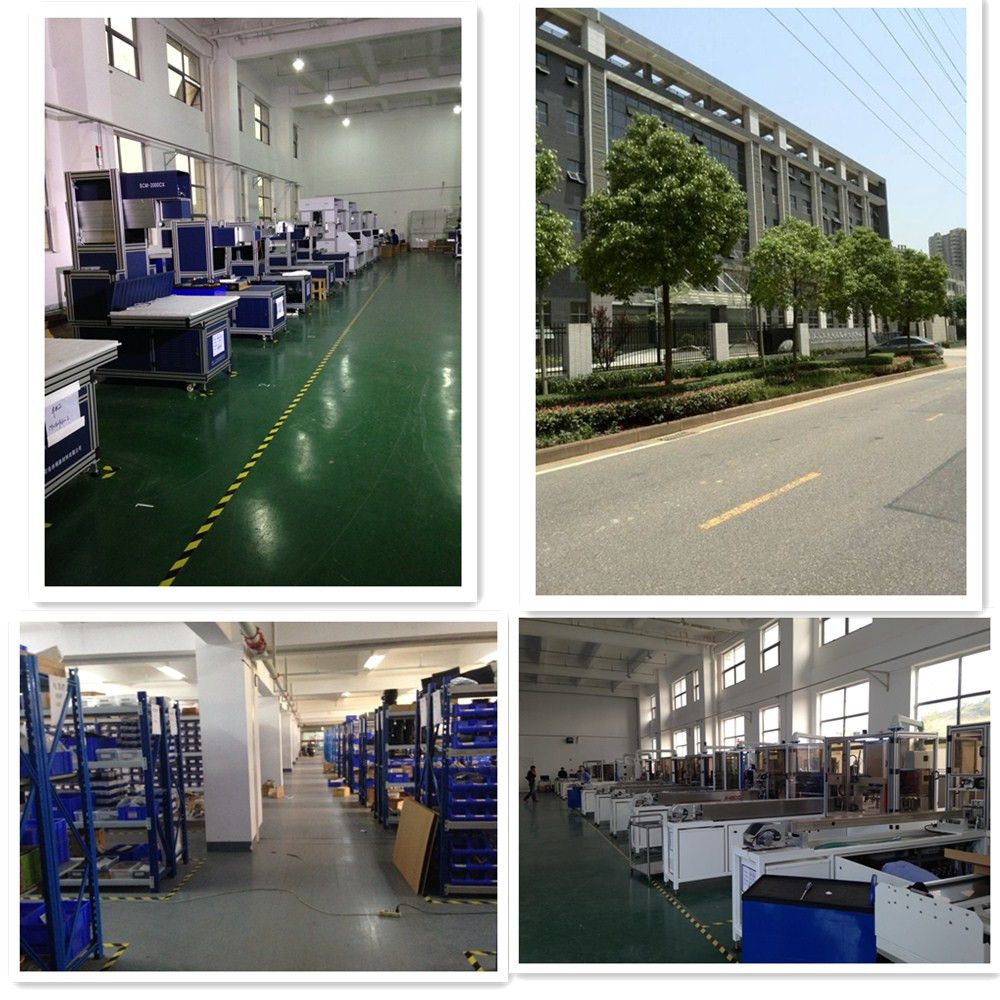

Company & WorkshopWuhan Sunic Photoelectricity Equipment Manufacture Co.,Ltd (Sunic Laser) has been dedicated to the manufacturing of Laser equipments since 1998. We are specialized in designing, manufacturing as well as providing services for Laser processing machines and whole equipments for Solar PV production line. We offer complete solutions with Laser application for customers all over the world. Sunic Laser would like to be customer's technical consultant and support in Laser and solar equipments to make further development and progress together.Our Certifications:Our ServicePre-sales Service:
