8-10 Heads Weighting Bag Packing Machine
| Price: |
US $ 28000-45000set |
| Min Order: |
1set |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Name: |
Automatic Bagging Machine |
| Packing Speed: |
20-40bags/Min |
| Bag Size: |
Length: 80-300mm; Width: 80-200mm |
| The Maximum Width Of Packing Film: |
420mm |
| Bag Making Mode: |
Pillow-Type Bag |
| Power/Voltage: |
1n+PE/50Hz/AC220V/2.2kw |
| Dimension: |
1320×920×1392mm |
| Automatic Grade: |
Automatic |
| Application: |
Dairy Products |
| Driven Type: |
Mechanical |
| Material Type: |
Solid |
| Packaging Material: |
Film |
| Packaging Type: |
Bag |
Product Description

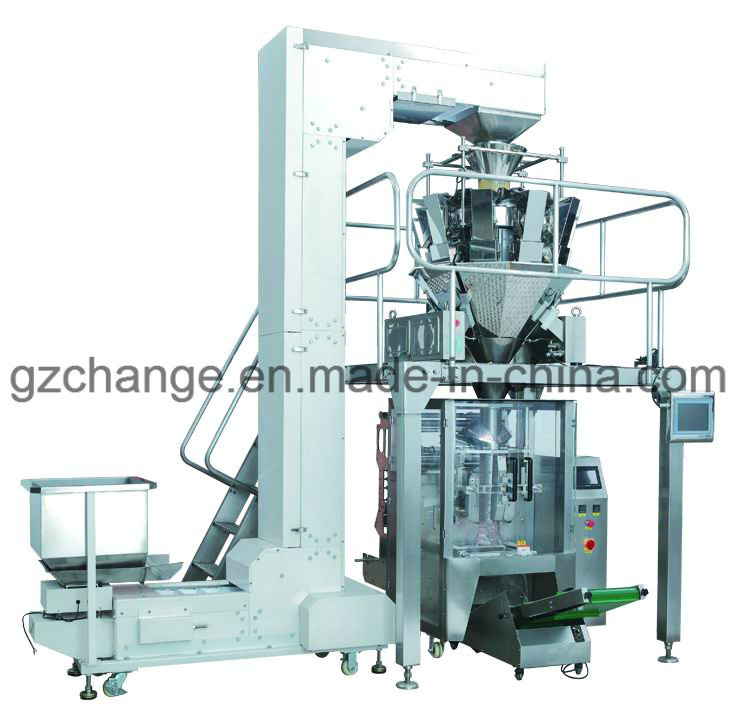

VERTICAL AUTOMATIC PACKING MACHINETechnical characteristics: - English and Chinese screen display ,operation is simple .
- PLC computer system , function is more stable , adjustment any parameters not need stop machine.
- It can stock ten dispose , simple to change variety.
- Sever motor drawing film , position accurately.
- Temperature independent control system ,precision get to±1ºC.
- Horizontal , vertical temperature control ,suitable for various of mix film , PE film packing material.
- Packing type diversification , pillow sealing, standing type ,punching etc.
- Bag-making , sealing, packing, print date in one operation.
- Work circumstance quiet, low noise.
(Technical parameters):
| Bag length | 80-300mm(L) |
| Bag width | 50-200mm(W) |
| Max width of roll film | 420mm |
| Packing speed | 5-60bags/min |
| Measuring range | 150-1200ml |
| Air consumption | 0.65mpa |
| Gas consumption | 0.3m³/min |
| Power voltage | 220V |
| Power | 2.2KW |
| Dimension | (L)1320mm×(W)950mm×(H)1360mm |
| Deadwight of machine | 540Kg |

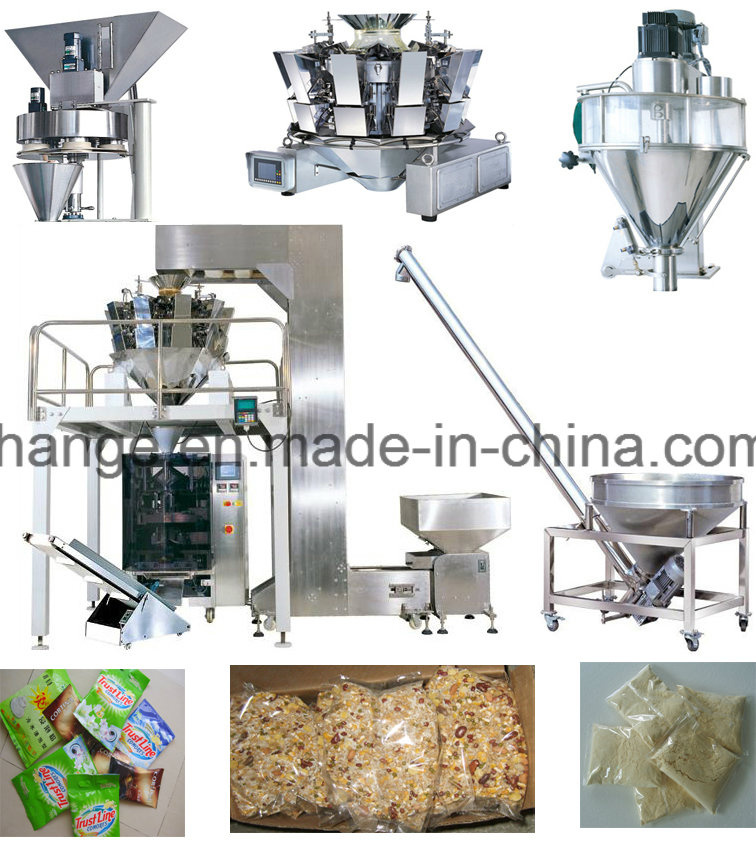

WITH MULTI WEIGTHER SERIELS Technical characteristics: - Multihead weigher measuring , packing weight more precision, cost more low.
Application Application for various of granule , strip , slice , packing range within 1200ml. AC10 Multihead weigher Technical characteristics - Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
- High precision data-type weighing sensor realizes precise weighing.
- Liquid crystal screen operating system in multiple languages such as Chinese and English ,etc.
- IP65 grade water-proof and dust-proof design . It's clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
- It can fine the opening and closing speed of hopper door according to the feather of items to be weighed , and prevent crushing and blocking of material .
- With powerful digital automatic counting function . It can record the index for each batch such as total bag number , pass rate and difference of single bag , etc.
- Optional devices: trigliyph balance ball ,suction hopper ,printing device ,tolerance sorting device .
Application All kind of grain material, sheet material and abnormity material which such as candy , melon seeds ,chips , peanuts, nutlet, preserved fruit, jelly, biscuit, confect , compet foodstuff, dilatant foodstuff , hardware and plastic can be weighed by the ration .Technical parameters | Type | AC-10 |
| Measure number | 10 heads |
| Range of single weighing | 10-1000g |
| Quantity precision | 0.1-1.5g |
| Average tolerance of single bag | 0.2-0.7g |
| Weighing speed | 70bags/min |
| Hopper capacity | 1300ml |
| Hopper type | Double hoppers without memory |
| Preliminary programs | 99kinds |
| Net/gross | 300/370Kg |
| Overall size | H1400×W1130×H1120mm |
DB-130S finished product conveyer DB-375 Z-shaped automatic material elevator machineTechnical parameters):
| Model | CH-130S | CH-375 |
| Convey speed | 800mm | 3750mm |
| Power | 40W | 750W |
| Convey measure | 200mm/min | 4T/H(Rice) |
| Overall size | 1300(L)×430(W)×890(H)mm | 3000(L)×650(W)×3750(H)mm |
