| Price: | US $ 280/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | wm-540 |
|---|---|
| OEM: | Yes |
| Speed: | 70,000rpm |
| Type: | Synthetic Therapy Equipment |

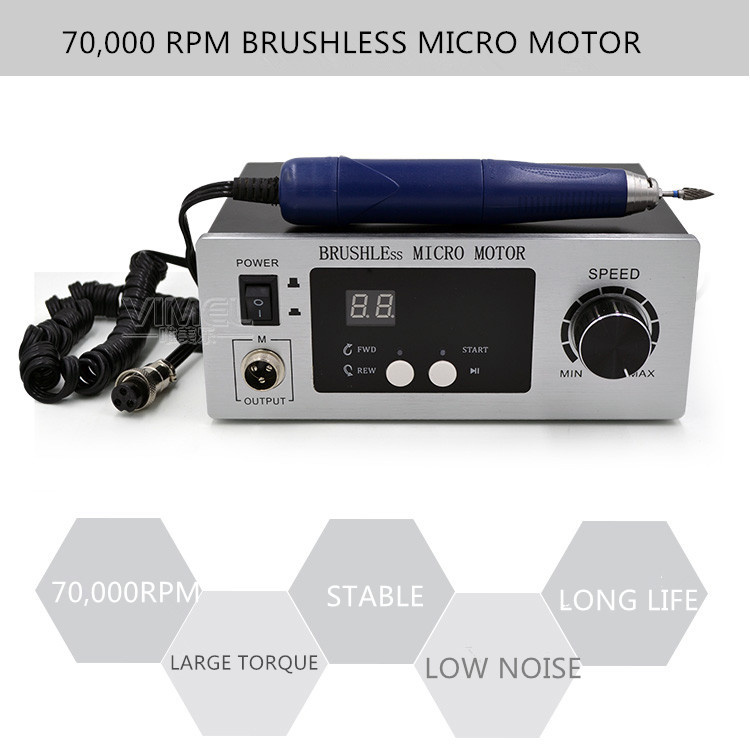

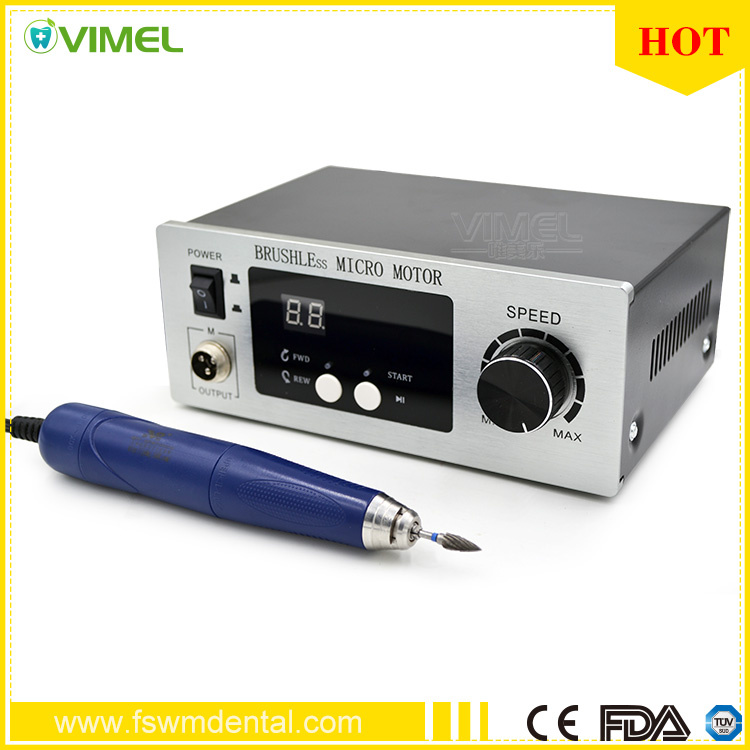

70000 turn NON- carbon brush grinding machine
Product introduction
1.Adopts brushless motor, small size, torque force is big, big power, high efficiency, high speed, low noise, small fever, long life, no interference, without having to replace commutator and carbon brush, high efficiency, high speed, free of maintenance. Motor live longer, saving labor costs and the cost of production. The cutting grinding, power is no longer a problem.
2.intelligent control, speed display, touch digital key, low failure rate; Concise and easy, comfortable to use. Depending on the load size automatically increase the output power, so as to maintain a constant speed, let your technicians, dental, carving processing can be expected. Accurate visible rotating speed and reduce the dependence on experience makes it handy for use.
3. three layers of protection, dust-proof, more careful protection of bearing, extend the service life of bearing.
4.precision manufacturing, small jitter of the cutting tools, machine run more smoothly.
Specifications
Features:
Brand: Asin Medical

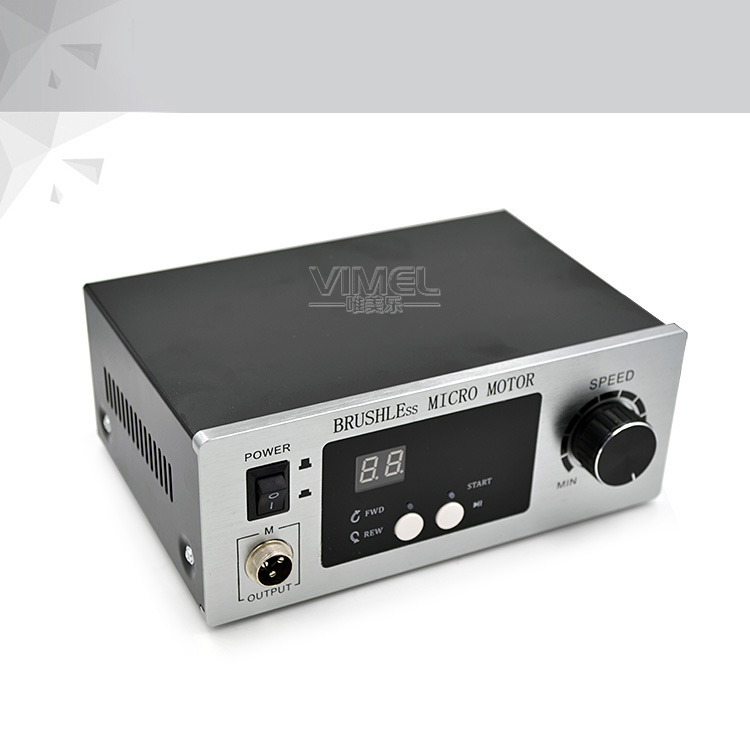

Control unit Model : AS-7000 (Brushless)

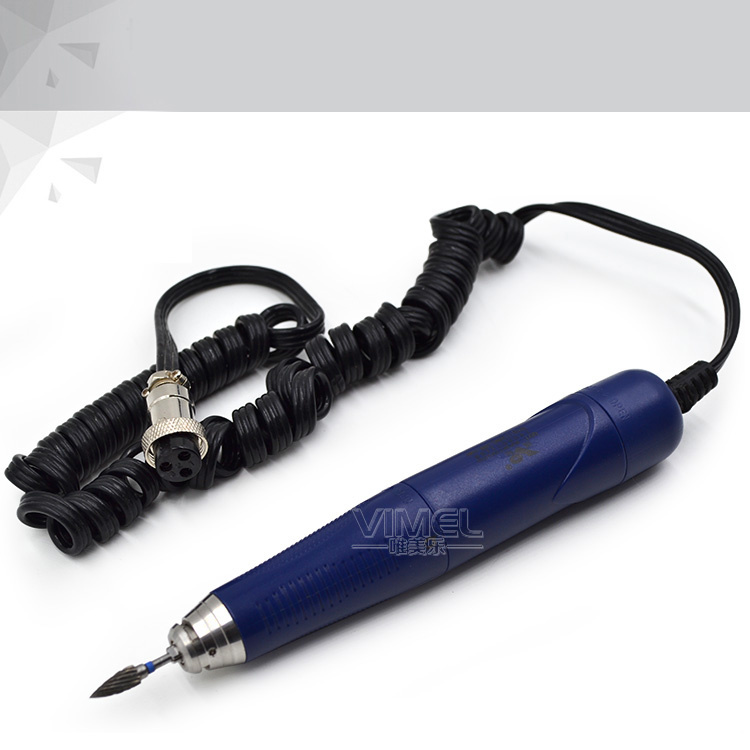

Motor handpiece : 7000X
Variable speed control by Hand dial
Digital speed display (1,000 ~ max. 70,000 rpm).
Maximum Torque set mode
Maximum Rotation speed display set mode
Self diagnosis system
Error code display function
Auto-cruise speed function
Round Cradle for Handpiece mounted inside controller
Convenient Magnetic Bur Holder
We can offer the right plug free to fit your country if necessary
Specifications:
| Power Supply voltage | 110V-220V |
| Cycle | 50/60 Hz |
| Electric Power | 50VA |
| R.P.M | Handpiece Max |
| Weight | 2.9kg |
| Dimension | 157(W)mm X 202(D)mm X 250(H)mm |
| Nonload | 1,000~70,000rpm |
| Max Torque | 8.5Ncm |
| Bur size | 2.35mm |
| Electric Power | 230W |
| Weight | 238g |
| Dimension | 159(L)mm X 27(D)mm |
