6mm Tinted Solar Control Coated Glass

Product Specifications

Prod Model:	Reflective Glass
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Standard Size:	2134X3300mm; 2134X3660mm; 1830X2440mm; etc
Technique:	Coated Glass
Thickness:	3-12mm
Structure:	Solid
Moh's Hardness:	6
Function:	Thermal Function
Processing Method:	Surface Coating
Usage:	Window
Type:	Reflective
Shape:	Flat
Transparency:	Reflective
Preparation Process:	Vacuum Magnetron Sputtering Method
Color:	Clear, Blue, Green, Grey, Bronze, etc
Application:	Buildings, Hotels, Curtain Wall, Furniture, etc.

Product Description

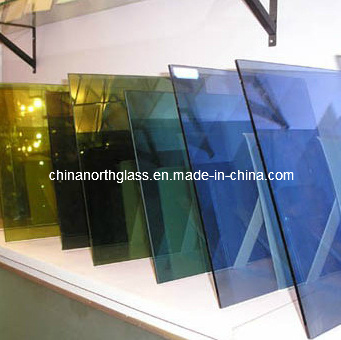

6mm Tinted Solar Control Coated Glass (reflective glass)

Solar control coated glass is a new pyrolytic multilayer coating and energy efficient product by high tech glass coating line which is used in tropic area and large scale glass building.

Online solar control coated glass is a new type solar control coated glass that features high visible light transmittance, low reflectivity and easy thermal processing. The production of solar control coated glass/reflective glass adopts a world advanced MOCVD technology accomplished by applying a continuous & even oxidized metal deposition on the hot float glass substrate surface. Its durable, transparent tough coating offers better thermal/optical qualities. Solar control coated glass/reflective glass is an ideal option for new top architectural glass.

Reflective glass is also called solar control coated glass. We have green reflective glass, blue reflective glass, bronze reflective glass, grey reflective glass, clear reflective glass, etc.

Applications:
Solar control coated glass is widely used in building, hotels and glass curtain wall, which is usually processed to tempered solar coated glass, laminated solar coated glass, insulated solar coated glass.

Specifications:
Specification:
Thickness: 4mm-12mm
Maximum: 3048x5000mm

Size 1830*2440mm, 3300*2134mm, 3210*2250mm, 3300*2250mm, 3660*2134mm

Colors
1. Blue: Sky Blue; Lake Blue; Dark Blue; Royal Blue
2. Grey: Euro Grey; Dark Grey, Mist Grey
3. Green: F. Green (Light Green), Dark Green
4. Bronze: Golden Bronze, Red Bronze
5. Pink
6. Golden
7. Clear etc.

Quality standards: GB/T18915.1-2002
Competitive Advantage:

Features of Solar control coated glass:
1. Superior lighting, heat-blocking properties.
2. Stable chemical properties, strong acid and alkaline resistance.
3. Superior performance in resistance to abrasion.
4. Subtle and elegant color uniform evenness of color.
5. High temperature chemical coating, excellent for tempering and thermal bending.

Besides having the radiation function, solar control coated glass can selectively transmit the visible light. This coating has a clear color and a high transmission of the visible light (for single pane it is normally 40-60%). Due to its low reflection of visible light, the light pollution is reduced to a minimum by reflective glass. Solar control coated glass is durable, easily be tempered, heat bent and can be used as single pane.

	Packing details of 6mm Tinted Solar Control Coated Glass
Thickness	Width	Length	M2	Sheets	M2	Cases	M2	Nett	Container
(mm)	(mm)	(mm)	per	per	per	per	per	Weight	Type
			sheet	case	case	Ctr	Ctr	20'Ctr
			(+/-)	(+/-)	(+/-)	(+/-)	(+/-)	(+/-)
3	2134	3300	7.04	54	380.16	8	3041.28	22800	close top
3	1830	2440	4.47	78	348.66	9	3137.94	23500	close top
4	1830	2440	4.47	58	259.26	9	2333.34	22200	close top
4	2134	3300	7.04	40	281.60	8	2252.80	22500	close top
4	2134	3660	7.81	35	273.35	8	2186.80	22000	close top
5	1830	2440	4.47	47	209.86	9	1888.78	23600	close top
5	2134	3300	7.04	32	225.35	8	1802.80	22500	close top
5	2134	3660	7.81	28	218.69	8	1749.54	22000	close top
6	2134	3300	7.04	28	197.18	8	1577.45	23400	close top
6	2134	3660	7.81	24	187.45	8	1499.60	22500	close top
6	1830	2440	4.47	36	160.75	10	1607.47	24000	close top
6	2440	3300	8.05	28	225.46	7	1578.19	23600	open  top
6	2440	3660	8.93	23	205.40	8	1643.19	24600	open  top
6	3210	2250	7.22	28	202.23	8	1617.84	24268	open  top
6	2250	3660	8.24	24	197.64	8	1581.12	24000	open  top
8	2134	3300	7.04	21	147.89	8	1183.09	23660	close top
8	2134	3660	7.81	18	140.59	8	1124.70	22500	close top
8	1830	2440	4.47	26	116.10	10	1160.95	23200	close top
8	1830	2134	3.91	27	105.44	10	1054.41	22000	close top
8	2440	3300	8.05	21	169.09	7	1183.64	23673	open  top
8	3210	2250	7.22	21	151.67	8	1213.38	24300	open  top
8	2440	3660	8.93	18	160.75	7	1125.23	22500	open  top
8	2250	3660	8.24	18	148.23	8	1185.84	24000	open top
10	2134	3300	7.04	17	119.72	8	957.74	24000	close top
10	1830	3048	5.58	17	94.82	9	853.41	22000	close top
10	1830	2440	4.47	22	98.23	9	884.11	22600	close top
10	1830	2134	3.91	22	85.91	9	773.23	22600	close top
10	3210	2250	7.22	17	122.78	8	982.26	24500	open  top
10	2440	3660	8.93	14	125.03	8	1000.20	25000	open  top
10	2440	3300	8.05	17	136.88	7	958.19	23955	open  top
10	2134	3660	7.81	15	117.16	8	937.25	23500	close top
10	2250	3660	8.24	15	123.53	8	988.20	24500	open top
12	2134	3300	7.04	14	98.59	8	788.73	23662	close top
12	2134	3660	7.81	12	93.73	8	749.80	23000	close top
12	2440	3660	8.93	12	107.16	8	857.32	25700	open  top
12	1830	2440	4.47	18	80.37	9	723.36	22000	close top
12	1830	2134	3.91	18	70.29	10	702.94	22000	close top
15	2134	3300	7.04	11	77.46	8	619.71	23800	close top
15	2134	3660	7.81	10	78.10	8	624.84	23500	close top
15	2250	3210	7.22	11	79.45	8	635.58	24300	OPEN TOP
15	2250	3660	8.24	10	82.35	8	658.80	24700	OPEN TOP
15	2440	3300	8.05	8	64.42	10	644.16	24100	open top
15	2440	3660	8.93	10	89.30	7	625.13	23500	open top
19	2440	3300	8.05	6	48.31	10	483.12	23500	close top
19	2134	3300	7.04	9	63.38	8	507.04	24000	close top
19	2440	3660	8.93	8	71.44	7	500.10	23700	open top
19	2250	3660	8.24	8	65.88	8	527.04	25000	open top
19	2134	3660	7.81	8	62.48	8	499.87	24000	close top
