Product Specifications
| Prod Model: |
BS-FE-60 |
| Solar Panel Power: |
120W 36V |
| Lumen: |
7800-9000lm |
| Working Mode: |
Light Control / Time Control / Microwave Control / |
| Lifespan: |
50000 Hours |
| CRI: |
75ra |
| Visual Angel: |
140X70 |
| LiFePO4 Battery: |
21ah 25.6V |
| Detecting Distance: |
15m |
| Mounting Distance: |
27-30m |
| Mounting Height: |
7-8m |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum Alloy |
| Light Type: |
Solar |
| Usage: |
Courtyard, Park, Square, Community, Port... |
| IP Rating: |
IP65 |
| Certification: |
FCC, SGS |
| With Light Source: |
With Light Source |
| Color Temperature: |
3000-6500K |
| Power: |
60W |
| Technics: |
Die-Casting |
| Illumination Time: |
Continuously 4-5 Rainy Days, 12 Hours Per Night |
| Cell Type: |
LiFePO4 |
| Charging Time (',H): |
6-8 Hours Direct Sunshine |
| Voltage: |
18V |
Product Description

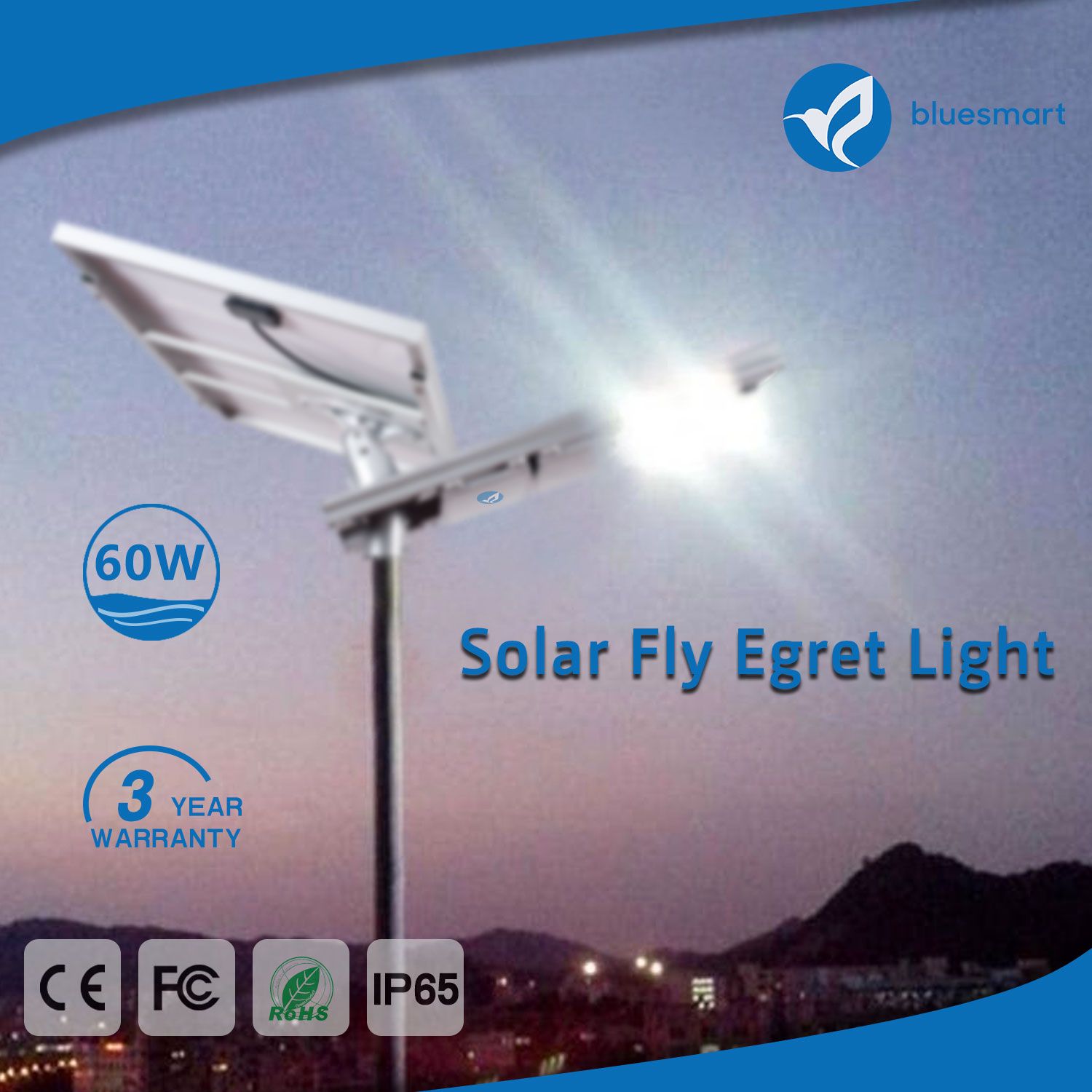

Bluesmart's latest smart integrated solar street light - solar fly egret light
Which is a type of revolutionary solar street light, with it's easily replaceable battery, the customer do not need to worry about how to replace the battery any more if needed.
Bluesmart's most powerful solar led street and garden light which totally change the traditional style, making a great process in it's technology, for all in one solar street light, we are professional!

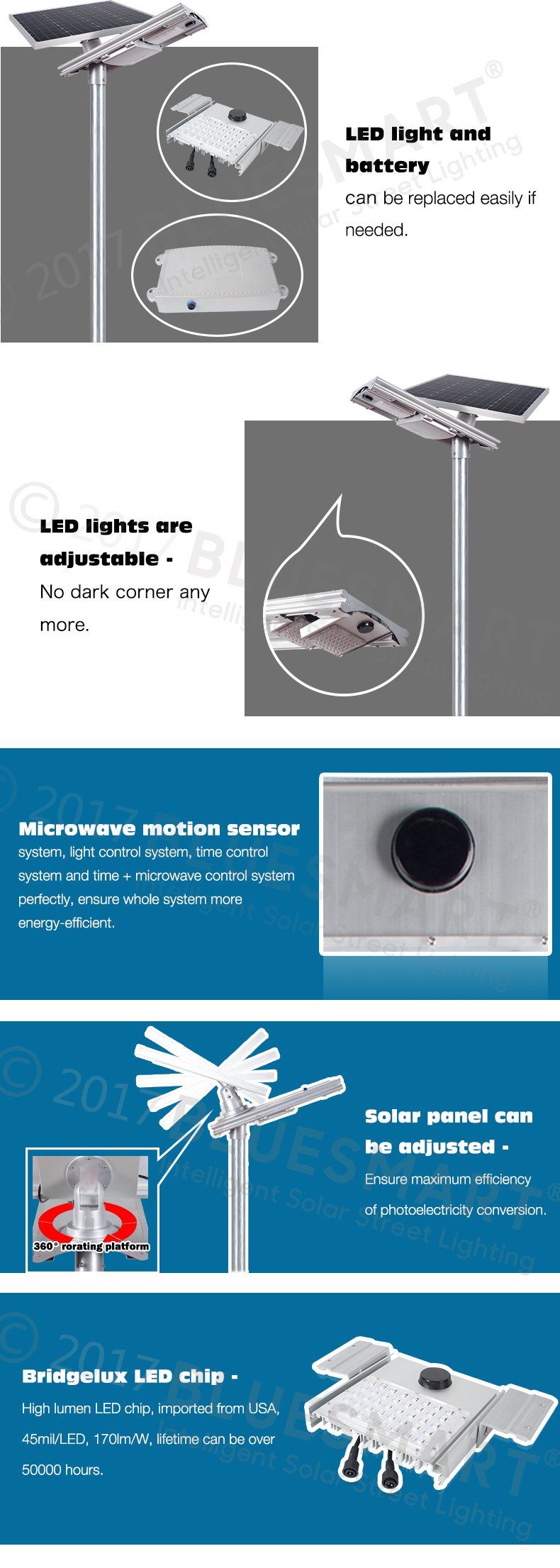

Advantages:
1.This type is very convenient for customers to customize the light under their requirements.
2.Microwave motion sensor system, light control system, time control system and time + microwave control system perfectly, ensure whole system more energy-efficient.
3.Easy installation-No power required, no cables required, easy installation within several minutes.
4.Solar panel and light angle adjustable-Adjustable in vertical direction, ensure maximum efficiency of photoelectricity conversion.
5.Good heat dissipation-Solar panel, battery and light body are not connected directly, LED light and lithium battery are not covered by a panel any more, longer lifetime.
6.All the materials are made of die-cast aluminum, good heat dissipation, high level in wind resistance, salt resistance, humidity resistance.
7.Lithium battery-Adopt lithium-ion ferrous phosphate battery to replace traditional gel battery, longer lifetime.
8.Modular design-All components are modular design and in standardized production. LED light and battery can be replaced easily if needed.
9.Airship shape design, Bluesmart's most innovative design.
10.The lithium battery is in a die-cast aluminum alloy box, which are more waterproof, the lifetime of battery getting longer.
11.The whole light is lighter, so the transport cost is less.
12.Wireless application-Integrated solar panel, LED, lithium battery, controller and other accessories into one system, simple and stylish.
Feature:
1.Beautiful and modern appearance, simple and fashionable.
2.Use solar green energy, environment friendly, saving energy.
3.Low voltage driving, CE, RoHS and FCC have passed, completely meeting the European Union standard.
4.No Hg, Pb or other hazardous materials, no radiation, safe to human body.
5.Protection grade IP65, TVS lightning protection.
6.Long lifetime of whole light, low maintenance costs.
| Item | 60W Solar Fly Egret Light |
| Type | Integrated solar street light |
| Brand | Bluesmart |
| Producing area | Shenzhen city, Guangdong province China |
| Model | BS-FE-60 |
| Solar module | Adjustable angle | 60° |
| Type | High efficiency monocrystalline silicon |
| Power | 120W DC36V |
| Lifetime | 20~25 years |
| Controller | MPPT | solar charging controller |
| Battery | Type | Lithium Iron Phosphate Battery(LiFePO4) |
| Capacity | 422.4WH/21AH 25.6V |
| Lifetime | 5~8 years |
| Detector | Microwave | Detection distance≤15m |
| LED light | Adjustable angle | 360° |
| Power | 60W DC18V |
| LED chip brand | Bridgelux from US |
| LED power | 1 watt DC3V |
| Luminous efficacy | 150lm/w |
| LED quantity | 56 pieces |
| Luminous flux | 7800-9000lm |
| Lifetime | ≥50000 hours |
| Viewing angle | 120° |
| Charging time | By sunshine | 6~8 hours |
| Lighting time | Full power | 9 hours |
| Saving mode | Continuously 4~5 rainy days, 12 hours per night |

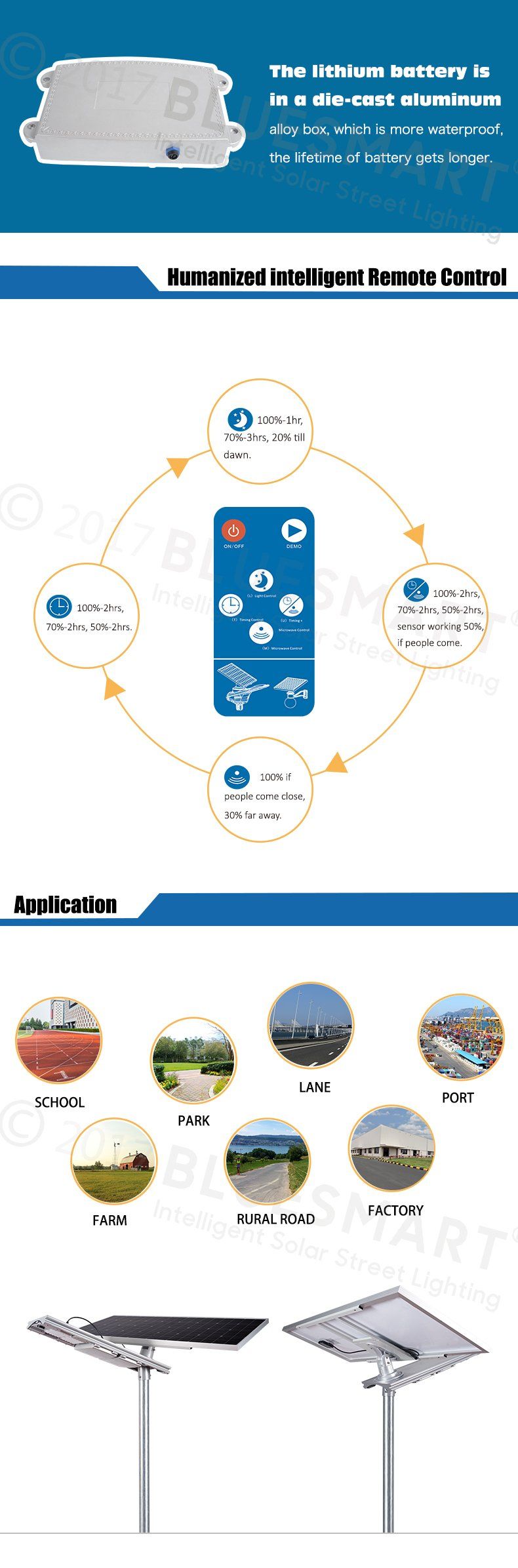

| Control modes | 1.Light control; 2.Time control; 3.Microwave motion control; 4.Time + Microwave motion control |
| Delay time | 10 seconds |
| Light control voltage | 5V |
| Work temperature | Range | -25°C~+65°C |
| Color temperature | Range | 3000~6500K |
| Mounting height | Range | 7~8m |
| Installation distance | Range | 27~30m |
| Lamp body materials | Die casting aluminium alloy |
| Protection grade | IP65 |
| Certificates | CE, RoHS, FCC, SGS |
| Quality warranty | 3 years for the whole light |
