Product Specifications
| Prod Model: |
PEDK-9060 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Production Time: |
7-10 Working Days |
| Payment Term: |
T/T in Advance |
| Engraving Speed: |
1-420000mm/Min |
| Cutting Speed: |
1-10000mm/Min |
Product Description

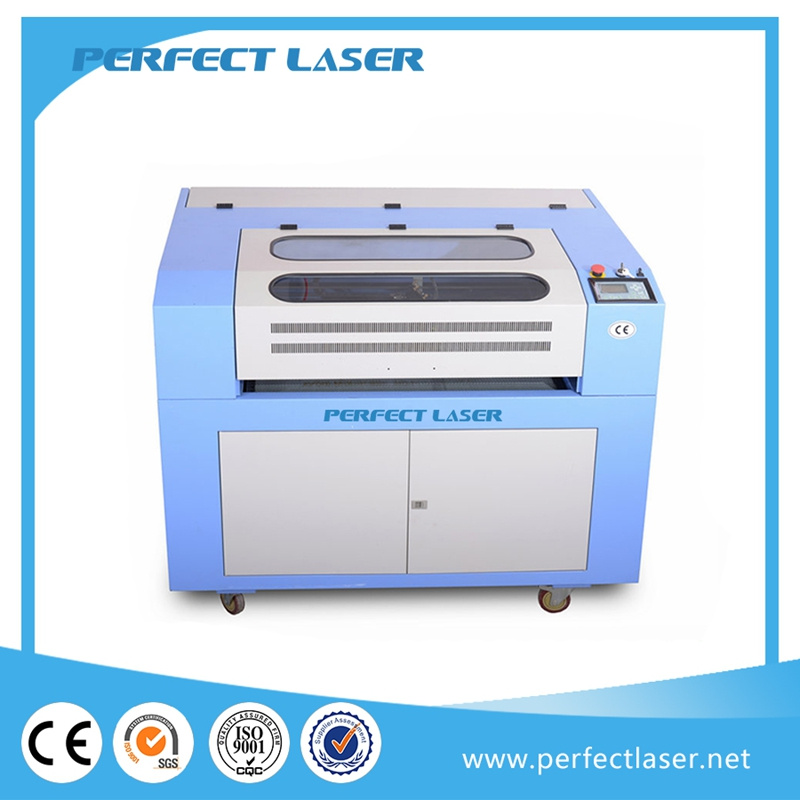

60W / 80W / 100W / 120W / 150W Acrylic / fabric / Leather / wood / PVC non-metal CO2 Laser engraver Price
Applied Industries
The laser cutting and engraving machine has been widely used in the fields of craft, plexiglass, architectural models, rubber plates, bamboo products and even can be used to realize laser engraving plastic, laser cutting plexiglass.
For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys andfurniture etc. Due to its various applications, the machine can also be called laser cutting and engraving machine,laser engraving plastic,laser cutting plexiglass,plastic engraving machine,plexiglass laser cutting machine,laser engraving supplies.
Product Features
1. The plastic engraving machine and the plexiglas laser cutting Machine adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device (Optional Item)
3. Adopt LCD Touch Screen, support USB port and DSP offline control system, can insert U disk to do USB communication.
4. Imported high precision linear guide rail and professional optical system of the laser cutting and engraving machine, dust-proof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, USA Imported Focus Lens and reflect mirror, Chinese Best Quality Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. Adopt fast speed step motor and driver, litter error, numeral timing, simulation quantum control the laser power, repetition high precision, engrave 1×1mm little English letters perfectly.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
11. Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.
Technical Data
| Laser Type | Hermetic and detached CO2 laser tube |
| Laser Power | 60w / 80w / 100w / 130w |
| Engraving Area | 900×600mm |
| Engraving Speed | 0-60000mm/s |
| Cutting Speed | 0-10000mm/s |
| Repeating Location Accuracy | ±0.0125mm |
| Working Voltage | 220V ±10% 50HZ |
| Machine Power | 900w |
| Controling System | CNC professional controlling system |
| Supporting Graphics Formats | BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,CDR,DWG,DXF |
| Cooling Mode | CW-3000 Water Chiller with protection function |
| Auxiliary Devices | Exhaust fan & exhaust pipe |
| Cutting Platform | Professional honeycome / strip work table |
| Power Control Mode | Laser power and moving system cooperate |
| Control Software | Original Perfect Laser laser engraving and cutting software |
| Machine Size | 1400*960*1150mm |
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
