6.38mm Laminated Safety Glass Laminated Glass Tinted Laminated Glass
| Price: |
US $ 3.5-7.5/Square Meter |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
Laminated Glass |
| Shape: |
Flat |
| Appearance: |
Flat |
| Structure: |
Solid |
| Layer Type: |
Common Laminated Glass |
| Function: |
Bullet-proof |
| Melting Point: |
High Temperature |
| Production: |
Wet Laminated Glass |
| Usage: |
Window |
| Intermediate Film: |
PVB |
| Type: |
Laminated Glass |
| Color: |
Any Color Avaliable |
Product Description
Product Description

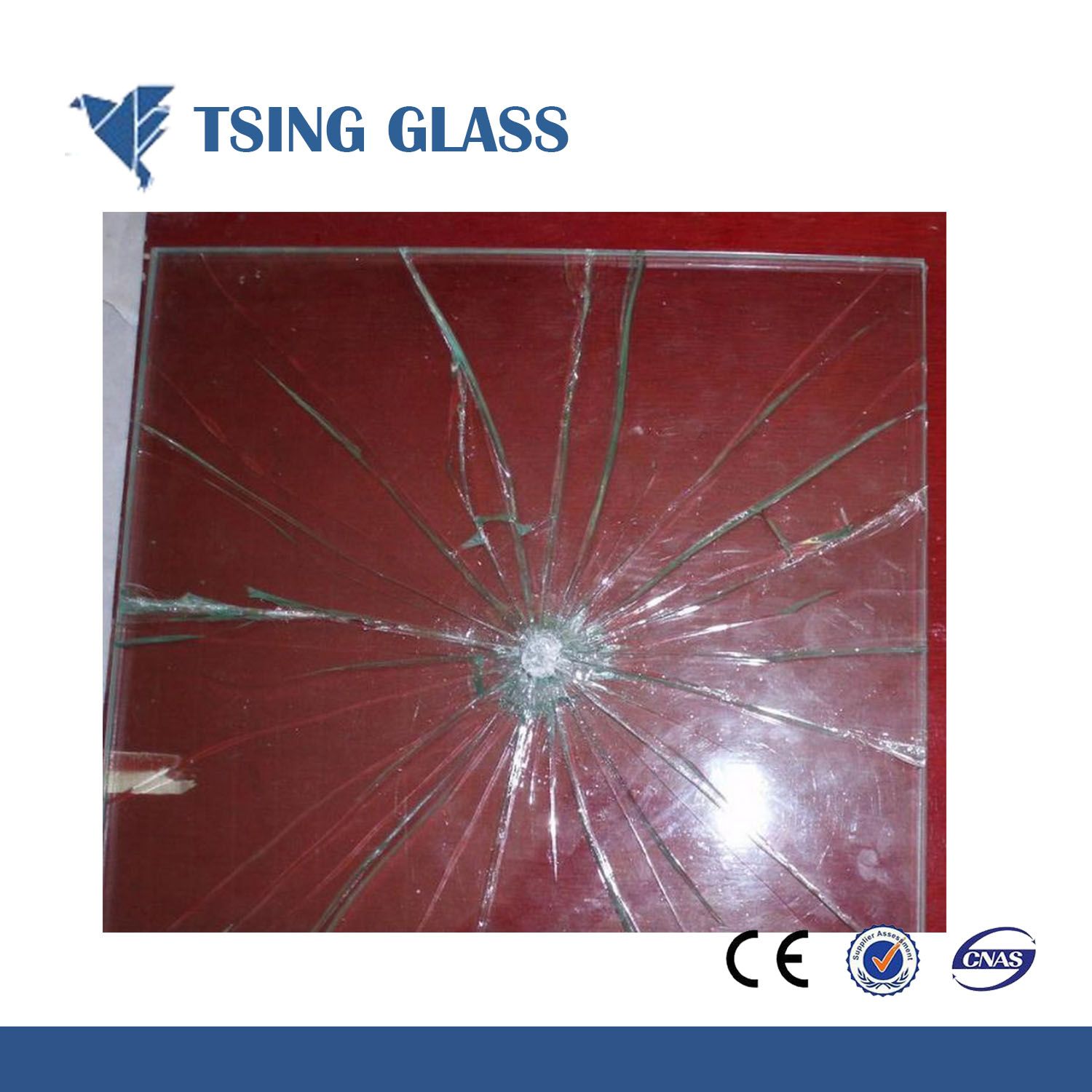

Laminated glass(Safety Glass)Laminated Glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer, typically of polyvinyl butyral (PVB), between its two or more layers of glass. The interlayer keeps the layers of glass bonded even when broken, and its high strength prevents the glass from breaking up into large sharp pieces. This produces a characteristic "spider web" cracking pattern when the impact is not enough to completely pierce the glass.
Products character:1. Safety: When it breaks by force, it only appears crack but no fragments. In order to keep body from hurting.2. Avoid hurricane and earthquake: When it breaks, the fragments still stay there, so people love to adopt them.3. Good avoid noise: PVB glue can stop sound wave, in order to stop noise and sound.4. Avoids sunshine:It can reduce transmission of sunlight, in order to reduce cooling.5. It can avoids ultraviolet rays, but it can not break light into the room. In order to avoid furniture and ornament being maturing.6. Avoiding water pressing: It has not only strength, but also has good avoiding water characte
Thickness avaliable :
Glass thickness: 2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Pvb thickness: 0.38mm,0.76mm,1.14mm,1.52mm,1.90mm,2.28mm
Size avaliable:
1)Normal size 1830x2440mm, 2134x3300mm, 2250x3300mm could be produced as per request.
2)also size required by order

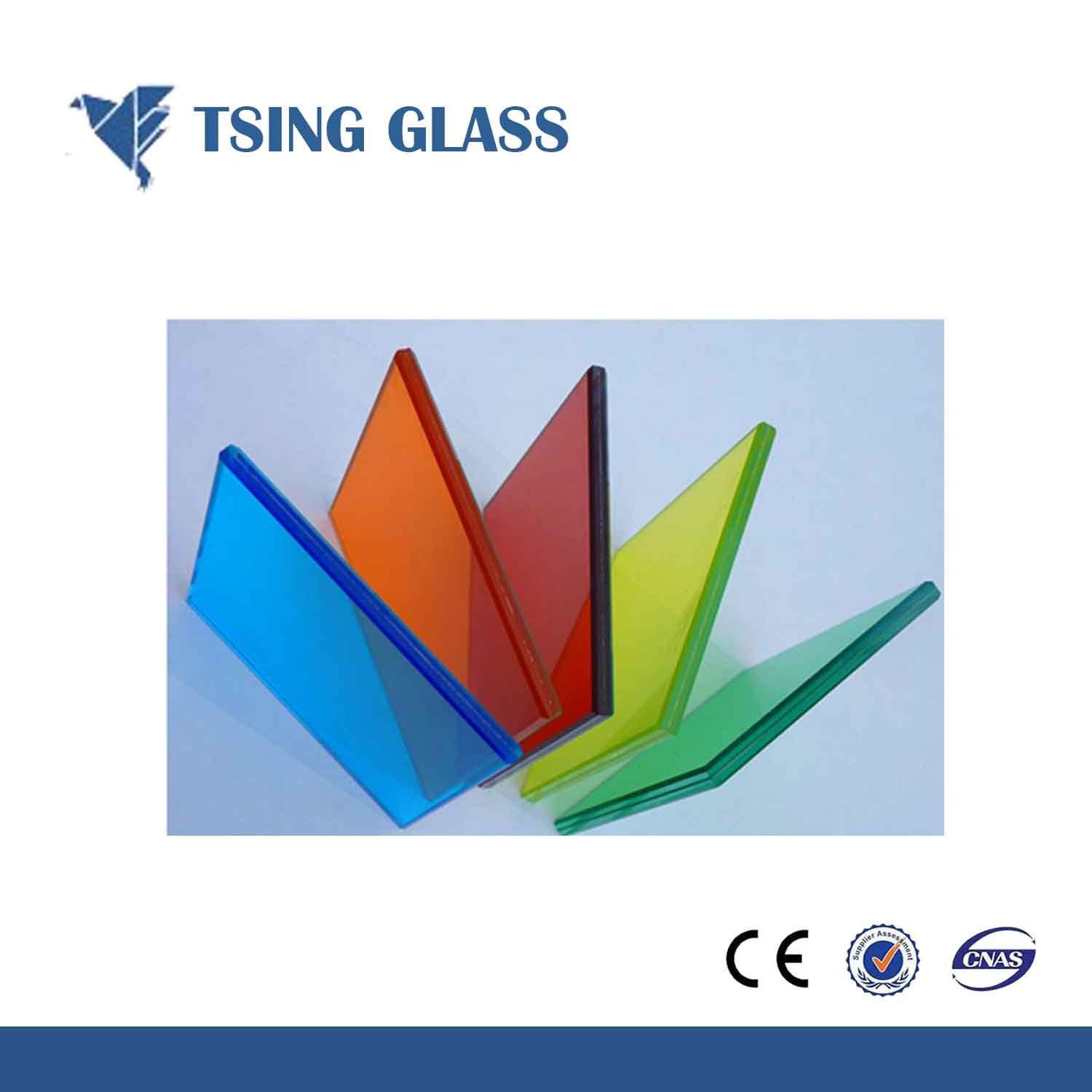

Color avaliable
Glass color clear,bronze, grey, green etc.
Pvb color clear,milk,bronze,grey etc
Products types:
1)Common clear and colored laminated glass
2) painting laminated
3) tempered laminated
4) low-e laminated
Packing conditions :
packing in wooden crates with paper between each sheet | Standard: GB 15763.3-2009; |
| Glass Thickness | PVB Thickness | Glass Size(mm) | Visible light transmittance |
| 2mm-19mm | 0.38mm, 0.76mm
1.14mm, 1.52mm | 2440X18303300X2134 3300X2440, 3660X2134, 3660X2440 | As your require of the used glass or PVB |
| |
| PVB Color |
Clear, Green, Blue, Bronze, Grey, Milk white etc. |
| Glass Color: | Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey etc. available with reflective glass also. |
| Thickness: | 3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm, 6+0.38+6mm, 3+0.76+3mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm etc, could be produced as request |
| Delivery Time: | Within two weeks after order confirmation. |
Our Other Glass:
Clear Float Glass:Thickness: 2mm-25mm
Sizes: 1524x2134mm, 1830x2440mm, 2140x3300mm, 2140x3660mm, 2250x3300mm, 3660x2140mm, 3660x2250mm etc.
Extra Clear Glass:
Thickness: 3mm-19mm
Sizes: 1830x2440mm, 2140x3300mm, 2140x3660, 2250x3300mm, 2250x3660mm etc.
Tinted Float Glass:
Colors: Euro Bronze, Golden Bronze, Euro Grey, Mist Grey, Dark Grey, French Green, Dark Green, Lake Blue, Dark Blue, Ocean Blue, Pink etc.
Thickness: 3mm-12mm
Sizes: 1524x2134mm, 2140x3300mm, 2250x3210, 2250x3300mm, 2140x3660mm, 2250x3160mm etc.
Patterned Glass:
Thickness: 3mm, 3.5mm, 4mm, 5mm, 6mm and 8mm
Sizes: 1220x1830mm, 1524x2134mm, 1830x2440mm, 3300x2140mm etc.
Colors: Clear, Bronze, Blue, Amber, Grey, Green, Blue etc.
Patterns: Aqualite, Bamboo, Beehive, Chinchilla, Crystal, Diamond, Flora, Karatachi, Masterlite, Millennium, Mistlite, Morgon II, Moru, Nashiji, Rain and Wanji etc.
Reflective Float Glass:
Colors: Euro Bronze, Golden Bronze, Euro Grey, Dark Grey, French Green, Dark Green, Lake Blue, Dark Blue, Pink, Silver etc.
Thickness: 3mm-10mm
Sizes: 1524x2134mm, 2140x3300mm, 2250x3210, 2250x3300mm etc.
Mirror:
Types: Silver Mirror, Aluminum Mirror, Copper and Lead Free Mirror, Safety Mirror, Solar Mirror and Beveled Mirror etc.
Thickness: 1.5mm, 1.8mm, 2mm, 2.7mm, 3mm, 4mm, 5mm and 6mm etc.
Sizes: 1524x2134mm, 1830x1220mm, 1830x2440mm, 2140x3300mm, 2250x3300 etc.
Laminated Glass:
PVB Color: Clear, Green, Blue, Bronze, Grey, Milk white etc.
Glass Color: Clear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey etc. Float glass and reflective glass are available etc.
Thickness: 3+0.38+3mm, 4+0.38+4mm, 5+0.38+5mm, 6+0.38+6mm, 3+0.76+3mm, 4+0.76+4mm, 5+0.76+5mm, 6+0.76+6mm etc. till to 42.3mm
Sizes: 1830x2440mm, 2140x3300mm etc.
Tempered Glass/Toughened Glass:
Thickness: 3,4,5,6,8,10,12,15,19mm
Max Size:2400x4200mm
Mini Size:300x300mm
Looking forward to cooperate with you,we will supply you high quality glass with competitive prices! And we will give you our best service!Fiona
Tsing Glass Co.,LTD
Tsing Glass is a professional processed glass manufacturer and exporter in China.
We are decided to provide advanced glass solution to building facades and home decoration.
Service
Our goal is not only to provide high quality glass, but also to maintain a personalized and professional relationship with each customer. No matter how big or small your requirement we will do our best to meet your demand. Our sales group has extensive glass expertise, as well as sound market knowledge and resources to help you make well-informed purchasing decisions. Furthermore, our sales professionals provide prompt "after sales service" and support to ensure a smooth glass purchasing experience.
Quality & Main Products
Our wide assortment of both raw and processed glass products in various colors and customizable options make it even easier to make all your glass purchasing decisions from one supplier.
Main products: Toughened glass, laminated glass, insulated glass, painted glass, mirror

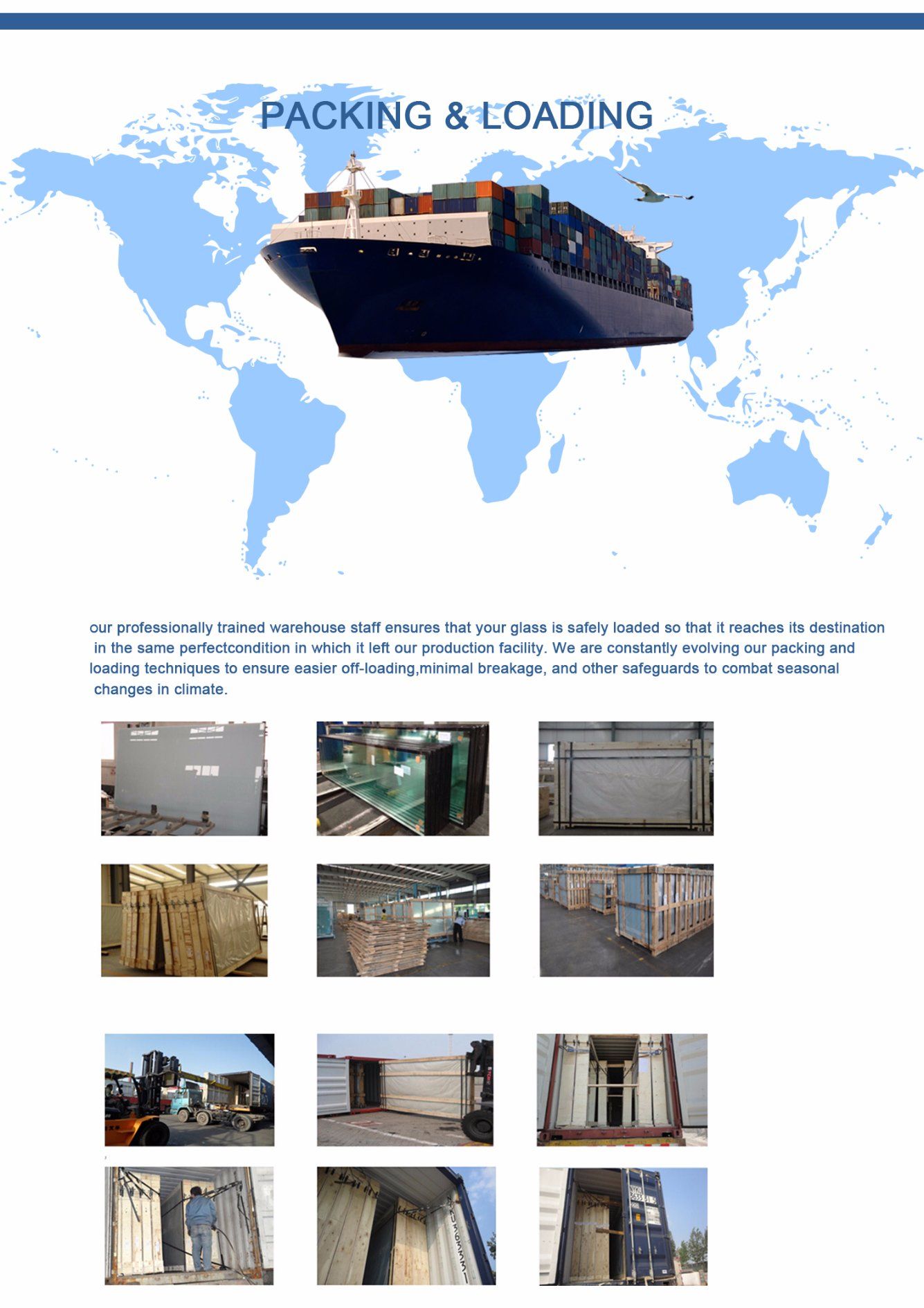

Packing & Loading
Our professionally trained warehouse staff ensures that your glass is safely loaded so that it reaches its destination in the same perfect condition in which it left our production facility. We are constantly evolving our packing and loading techniques to ensure easier off-loading, minimal breakage, and other safeguards to combat seasonal changes in climate.
We have the following quality certificates and inspection credentials: AS/NZS 2208: 1996.
