Product Specifications
| Prod Model: |
FIT-400K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor: |
Bitzer/Bock/Copeland |
| Gas: |
R22/R404A |
| Cooling Mode: |
Water Cooled/Air Cooled |
| External Dia.: |
22mm, 29mm, 35mm |
| Power Supply: |
380V/3p/50Hz/ 220V/3p/60Hz |
| Daily Capcity: |
40000kg |
| Ice Shape: |
Bullet |
| Certification: |
CE |
| Condition: |
New |
Product Description
Tube ice is a kind of regular hollow cylindrical transparent ice. Its external diameter can be divided into three specifications such as ø22, ø29 and ø35mm, ranging from 25~50mm long. The inner hole diameter can be adjusted according to ice-making time, typically between ø5~10mm.
Compared with other kinds of ice, tube ice has the highest density which is pure, difficult to melt and completely conforms to food standard. It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, etc.
FOCUSUN Tube ice machines are divided into small capacity and large capacity.
Small capacity tube ice machine
A complete unit with all equipments assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to power and water, the machine is ready to run.
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Install power |
Operating
weight |
Size (L×W×H) |
| FIT-10 | 1T | R404A | 4.74KW | 6KW | 890 kg | 1400×800×1800 mm |
| FIT-30 | 3T | R22/R404A | 11.01KW | 13.5 KW | 1250 kg | 1700×920×2000 mm |
| FIT-50 | 5T | R22/R404A | 16.03KW | 20 KW | 1650 kg | 1700×1200×2200 mm |
| FIT-60 | 6T | R22/R404A | 18.42KW | 28 KW | 1650 kg | 1800×1250×2200 mm |
| FIT-80 | 8T | R22/R404A | 24.55KW | 30 KW | 1650 kg | 2000×1450×2200 mm |

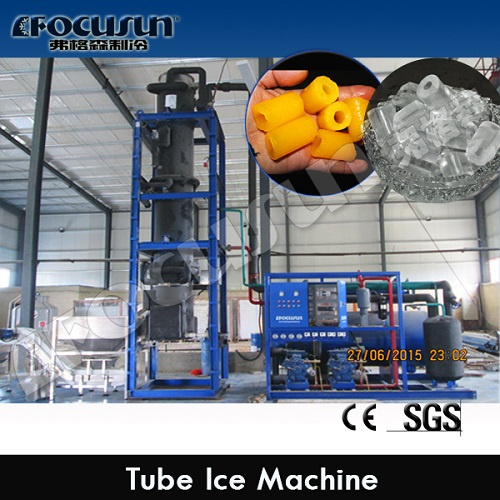

Large capacity tube ice machine
A modular design is adopted, consists of 3 modules.
Evaporator module: The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting, place the evaporator horizontally and stand it upright when installing.
Compressor module: Compressor, condenser, reservoir, liquid receiver, oil separator, and electric control box are installed on a steel frame to form the whole set.
Cooling tower module: Cooling tower, water pump and water pipes.
Model |
Daily
Capacity |
Refrigerant |
Electricity
consumption |
Install
power |
Operating
weight |
Size (L×W×H) |
| FIT-100 | 10T | R22/R404A | 34.95KW | 45 KW | (unit):1560 kg | 1800×1500×1600mm |
| (evaporator):2296 kg | 1180×1180×3500mm |
| (cooling tower):670 kg | Φ2000×2410mm |
| FIT-150 | 15T | R22/R404A | 48.4KW | 60 KW | (unit):1890 kg | 2000×1800×1600mm |
| (evaporator):2685 kg | 1250×1250×4200mm |
| (cooling tower):1120 kg | Φ2175×2565mm |
| FIT-200 | 20T | R22/R404A | 68.5KW | 85 KW | (unit):2260 kg | 2200×2000×1800mm |
| (evaporator):3650 kg | 1350×1350×4600mm |
| (cooling tower):1120 kg | Φ2175×2565mm |
| FIT-250 | 25T | R22/R404A | 85.3KW | 105 KW | (unit):2680 kg | 2400×2200×2000 |
| (evaporator):4260 kg | 1450×1450×4800mm |
| (cooling tower):1300 kg | Φ2650×2645mm |
| FIT-300 | 30T | R22/R404A | 105KW | 130 KW | (unit):3280 kg | 2800×2200×2000mm |
| (evaporator):4860 kg | 1450×1450×5200mm |
| (cooling tower):1630 kg | Φ3050×2780mm |
| FIT-350 | 35T | R22/R404A | 116KW | 140 KW | (unit):3860 kg | 3500×2200×2000mm |
| (evaporator):5650 kg | 1500×1500×5500mm |
| (cooling tower):2730 kg | Φ3770×3490mm |
| FIT-400 | 40T | R22/R404A | 139.6KW | 170 KW | (unit):4250 kg | 3600×2200×2000mm |
| (evaporator):5890 kg | 1500×1500×5800mm |
| (cooling tower):2730 kg | Φ3770×3490mm |
| FIT-500 | 50T | R22/R404A | 177KW | 220 KW | (unit):4560 kg | 4300×2200×2000mm |
| (evaporator):6500 kg | 1800×1800×6000mm |
| (cooling tower):3770 kg | Φ3770×3690mm |
Related product:
Tube ice packing machine;
Tube ice storage room;
Tube ice crusher;
FAQ:
Q1: How many steps can I get the machine from your factory to my hand?
a. send us enquiry, tell us your demand as specific as you can;
b. phone/online communication → the most suitable models suggested → design drawings → comments & modification → quote;
c. visit factory if required,
d. down payment → production → balance payment → delivery;
e. local preparation ready → engineers fly to installation if needed → after sales;
Q2: Production time?
It usually takes 38~45 working days to produce since the day when we confirm your down payment, for series equipments may need more days, will inform you before order.
Q3: Payment method?
100% TT is preferred, 50% TT before production, the balance 50% before delivery.
