Product Specifications
| Prod Model: |
CV4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
CV4000 |
| Capacity: |
4000 Kg in 24 Hours |
| Certification: |
CE |
| Cooling Way: |
Water Cooling System |
| Control System: |
PLC Program Control |
| Comrpessor: |
Bitzer/Copeland/Refcomp |
| Refrigerant: |
R22 or R404A |
| Freezing Time: |
20mins or 23mins |
| Natural: |
Food-Grade |
| Control: |
Electric |
| Structure: |
Integral Type |
| Application: |
Commercial |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Material: |
Stainless Steel 304 |
| Ice Shape: |
Solid Ice Cube with Crystal |
| Power: |
15000W |
Product Description

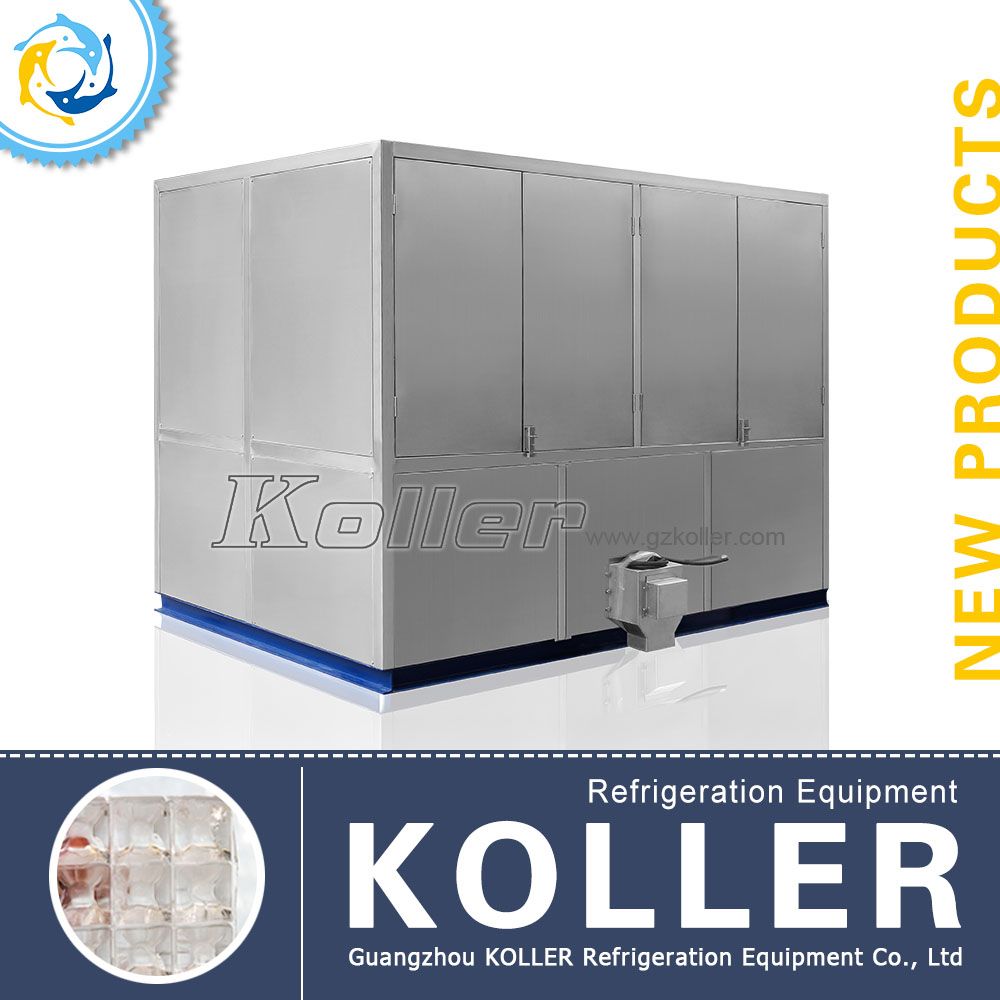

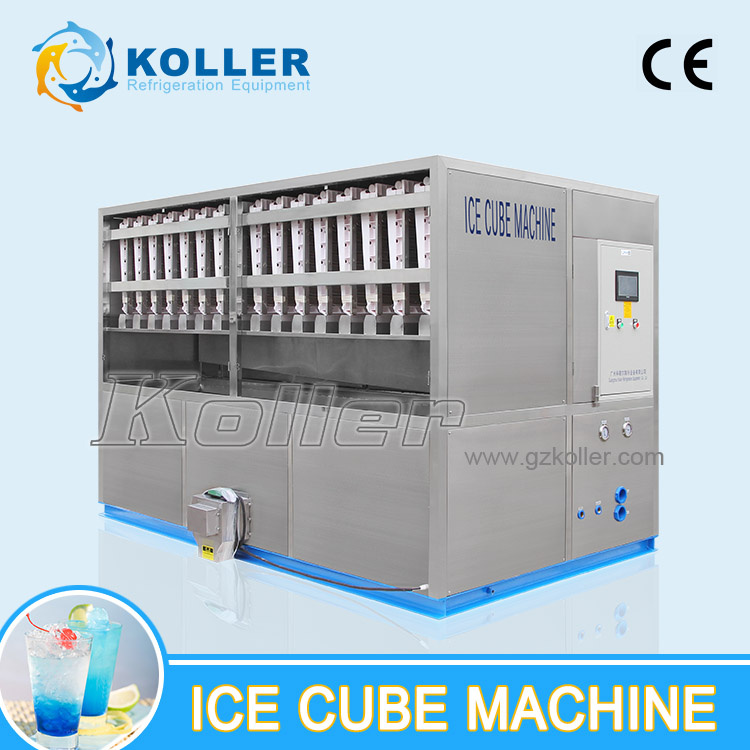

CV4000 Ice Cube Machine/Cube Ice Machine
(1) Capacity: 4tons in 24hrs
(2) Ice size: 22mm*22mm*22mm or 29mm*29mm*22mm
(3) PLC program control
CV4000 cube ice machine is made up of two parts: Cube ice machine & cooling tower. They are size as follow:
Cube Ice Machine is: 2690mm*1930mm*1870mm
Cooling tower: 1650mm*1650mm*1480mm.
1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;
2. Greatly save energy, only 80-85kw powers are consumed to produce one-ton ice;
3. Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing;
4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags.
5. Operation manual and CD, Supply failure alarming system, and no need worker to monitor.
6. Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; Ice stopping production when the ice bins are full, Automatic water making up.
7. Freezing time: 20 minutes to 23 minutes.
| Model | Capacity
(Ton/24hrs) | Compressor
Power(KW) | Compressor
brand | Water pump power (KW) | Outer Dimension(mm) (Length*Width*Height) |
| CV1000 | 1 | 3 | Maneurop/Bitzer | 0.55 | 1380*1440*1800 |
| CV2000 | 2 | 6 | Bitzer/Copeland/Refcomp | 1.5 | 1770*1510*2040 |
| CV3000 | 3 | 9 | Bitzer/Copeland/Refcomp | 1.5 | 2070*1920*2030 |
| CV4000 | 4 | 15 | Bitzer/Copeland/Refcomp | 3 | 2690*1930*1870 |
| CV5000 | 5 | 18.5 | Bitzer/Copeland/Refcomp | 3 | 3060*1920*2020 |
| CV6000 | 6 | 22.5 | Bitzer/Copeland/Refcomp | 3 | 4000*2100*2100 |
| CV8000 | 8 | 30 | Bitzer/Copeland/Refcomp | 4 | 5200*2050*2100 |
| CV10000 | 10 | 37.5 | Bitzer/Copeland/Refcomp | 4 | 5880*2050*2100 |
| CV15000 | 15 | 57.45 | Bitzer/Copeland/Refcomp | 7.5 | 8200*2100*2100 |
| CV20000 | 20 | 74.30 | Bitzer/Copeland/Refcomp | 7.5 | 11600*2100*2100 |
1. Research, Design, Sale, Manufacture
2. Cube Ice Machine / Block Ice Machine / Plate Ice Machine / Tube Ice Machine.
3. Products sold well in Southeast Asia, Europe, Middle Ease, Africa, South America, Australia, South Pacific Islands etc.
Guangzhou Koller R & E Co., Ltd. (Koller) is established under the management of Guangzhou Vista M&E Equipment Co., Ltd since 2004. Because of foreign investment, our company decides to expand investment and moves to Panyu District, Guangzhou, China for a better purchase platform and high-quality products.
Our experience: We have engaged in the refrigeration for more than seven years and have rich experience in research, design, production, sales and after sales in refrigeration and heat exchange.
Our Service Team: With strong team cooperation, great passion, and 100% patience, responsibility for each department for each staff.
Our Aim: 100% satisfaction
Our After sales Service: Have owned an exquisite refrigeration engineers team with advanced refrigeration technology and mechanical treatment technology, service at any time with best attitude.
Our Customer Project Country: South Africa, Tchad, Nigeria, Mali, Malaysia, Cambodia, Philippine, Vietnam, Turkey, Papua New Guinea, Iran, Saudi Arabic, Mexico, Venezuela, Curaco.
Our Product Application Filed: Large edible ice plants, supermarkets, aquatic products processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing and concrete cooling
Our Products: Commercial Ice Cube Machine; Commercial Ice Block Machine; Industrial Ice Block Machine; Tube Ice Machine; Plate Ice Machine; Ice Packaging System; Ice Conveyor System; Cold Room (Walk In Freezer).
