Product Specifications
| Prod Model: |
HSGP-2Kc |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Focus Diameter: |
0.02mm |
| Max Engraving Speed: |
120000points/Minute |
| Laser Head: |
Single |
| Focal Length: |
100mm |
| Laser Power: |
3W |
| Authenticate: |
CE, SGS, FCC, FDA |
| Cooling: |
Air Cooling |
| Beam Quality: |
M2<1.5 |
| Max Engraving Scope: |
(300mm*400mm)*150mm |
| Size: |
103*120*77cm |
Product Description
3D Photo in Glass (300X300X150MM) (HSGP-2KC)
Applicable:
Our HSGP series is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Suitable material :
Our machine suitable for engraving inside of the crystal cube, common glass. transparent acrylic,and also can marking on surface of metal and hard plastic .
Product Description for 3D Photo in Glass (300X300X150MM) (HSGP-2KC)

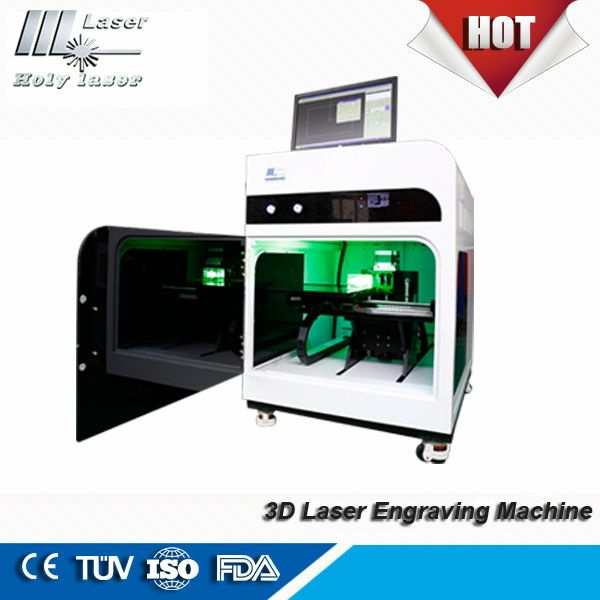

Our 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
Advantages for 3D Photo in Glass (300X300X150MM) (HSGP-2KC)1. CE,FCC, FDA approved,
2.This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed.
5, Our machine also good for big size engraving as big as 300*400*80mm (also very suitable for family ,friends ..etc)
Factory Profile:
Supported by the Yiwu City Government
Copperate with the Zhejiang University, update for technology
We are the manufacturer, our price are more competitive.
With 15 years history on reseaching and producing all kind of laser machine
Our company welcomes AGENTS all over the world
After-sale service:
Two year guarantee period for product quality. (man made damaged is negotiable).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided.
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
|
HSGP-2KC |
| laser / laser wavelength | semiconductor diode/ 532nm |
| laser repetition frequency | 2000hz |
| marking speed | 120, 000dots/min. |
| max. marking scope | 300*400*150mm |
| focus diameter/resolution | 0.02nm/ 800DPI |
| working | with high speed scanner+X+Y+Z (5 axis) |
| positioning accuracy | 10μ m |
| continuous working time | 24 hours |
| coolinf/quality warranty | air colling |
| lifetime | more than 20, 000hours |
| gross power/noise | 1.5KW/ 50db |
| power requirement | single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz |
| software | self reseach software for 3D, 2Ddots cloud,
and for control machine |
| suitable materials | Crystal, glass, hard plastic, acrylic, metal, etc. |
| working environment | temperature10-28° C, humidity |
| Operation system | Windows XP, Windows 7 |
| Software language | English, Portugal, Russion etc. |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
