Product Specifications
| Prod Model: |
HSGP-2KC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Holy Laser |
| Factory: |
Yiwu |
| Laser: |
Semiconductor |
| Engraving Speed: |
120, 000dots/Min |
| Cooling Mode: |
Air Cooling |
| Dimension(L*W*H): |
150*200*80mm |
| Gross Power: |
1.5kw/ 50dB |
| Applicable Material: |
Acrylic, Crytal, Glass, Metal, Plastic |
| Graphic Format Supported: |
Dxf, Dwg, Obj, Pic |
| After-Sales Service Provided: |
Engineers Available to Service Machinery |
| Engraving Machine Type: |
Laser Engraving Machine |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
Semiconductor |
| Usage: |
Glass.Crystal.Acrylic |
Product Description

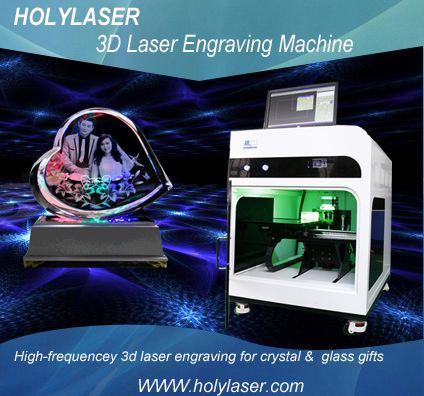

Applicable for 3D laser engraving machine HSGP-2KC:
The crystal engraving laser machine, is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Description for 3D laser engraving machine HSGP-2KC:
HSGP-2KD portable 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration.
Advantages for 3D laser crystal engraving machine:
1. CE, FCC, FDA approved,
2. This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production
4. With newest laser, high speed.
Technical Paramer:
Laser / laser wavelength: Semiconductor diode/ 532nm
Laser repetition frequency: 2000Hz
Marking speed: 120, 000dots/min.
Max. Marking scope: 150*200*80mm
Focus diameter/resolution: 0.02nm/ 800DPI
Positioning accuracy: 10μ M
Continuous working time: 24 hours
Lifetime: More than 25, 000hours
Gross power/noise: 1.5KW/ 50dB
Power requirementSingle phase: 220V or 110 V (+/- 10%), 50Hz or 60 Hz
Suitable materials: Crystal, glass, hard plastic, acrylic, metal, etc.
Working environment Temperature: 15-30° C
After-sale service:
Two years guarantee period for product quality. (man made damaged is negotiable).
Lifetime maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.
Free samples marking of customer provided
|
|
HSGP-2KD |
|
laser / laser wavelength |
semiconductor diode/ 532nm |
|
laser repetition frequency |
2000hz |
|
marking speed |
120,000dots/min. |
|
max. marking scope |
150*200*80mm |
|
focus diameter/resolution |
0.02nm/ 800DPI |
|
working |
with high speed scanner+X+Y+Z (5 axis) |
|
positioning accuracy |
10μm |
|
continuous working time |
24 hours |
|
coolinf/quality warranty |
air cooling |
|
lifetime |
more than 25,000hours |
|
gross power/noise |
1.5KW/ 50db |
|
power requirement |
single phase 220V or 110 V (+/- 10%),
50Hz or 60 Hz |
|
software |
self reseach software for 3D, 2Ddots cloud,
and for control machine |
|
suitable materials |
Crystal, glass, hard plastic, acrylic, metal, etc. |
working environment |
temperature10-30°C, humidity less than 70%,
non-condensed |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
