3D Laser Engraving Machine Crystal Metal Marking Machine (ECL6230)
| Price: |
US $ 12000-30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
ECL6230 |
| Laser Type: |
Fiber Laser |
| Coding Type: |
Dynamic Coding/Static Coding |
| Power Supply: |
100~240V AC50/60Hz |
| Operating System: |
Ec-Jet 'seq' Operating System |
| Character Height: |
0.8mm-300mm |
| Coding Range: |
From 70mm to 300mm |
| Cooling Method: |
Water Cooling |
| Protection Level: |
IP55 |
| Interface: |
10.4 Inches Touch Screen |
| Power: |
10W,20W,50W |
| Usage: |
Daily Industrial |
| Automatic Grade: |
Fully Automatic |
| Working Patterns: |
On-Line |
| Supplies: |
Non-ink |
| Packaging Type: |
Box |
| Type: |
Laser Coding Machine |
| Principle Of Classification: |
Laser Coding Machine |
Product Description

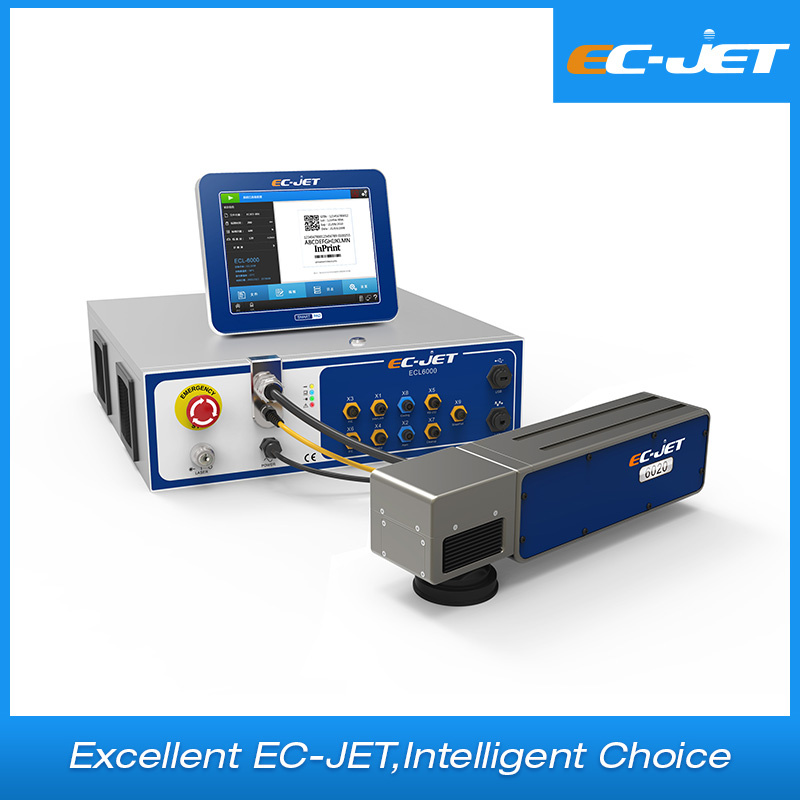

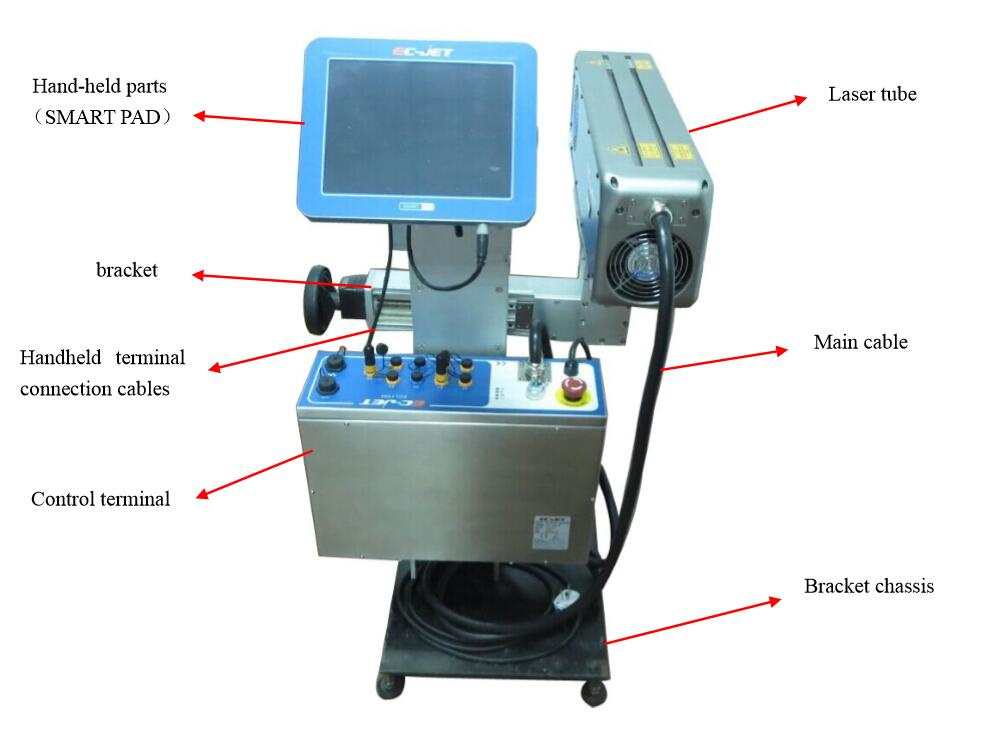

3D laser engraving machine crystal metal laser marking machine (ECL6230)Component
Laser marking is a non-contact printing method that offers advantages over other technologies including mark quality, permanence and fewer consumables. EC-JET's line of laser marking systems includes CO2, Fiber and UV laser sources in different power outputs to address a range of substrates and applications. In addition, EC-JET offers a comprehensive portfolio of laser accessories including lenses and beam turning units to simplify integration into your production lines and maximize the laser's performance.Parameter | Model | ECL6010 | | ECL6020 | | ECL6050 | |
| Laser type | Fiber |
| Coding type | Dynamic coding/static coding |
| Laser power | 10W | 20W | 50W |
| Coding line | Setting freely within marking area |
| Character height | 0.8mm-300mm |
| Barcode | A variety of 1D and 2D barcode types |
| Graphics format | BMP/DXF/HPG/JPEG and many other graphics formats |
| Text type | Fixed text, serial number, date, counter, shift code, random code |
| Coding range | Choosing from 70mm to 300mm |
| Interface | 10.4-inch industrial touch screen with high precision |
| Operating system | EC-JET "SEQ" operating system |
| Standard port | Synchronous port, the product detector port, external alarm port, standard USB port, Ethernet port, RS232 port |
| Appearance | Industrial-grade stainless steel casing and industrial-grade aluminum shell |
| Controller installation | Portable or desktop |
| Operating temperature | 5~40ºC |
Relative humidity
(no condensation) | 10~90% |
| Protection grade | IP55 |
| Power supply | 100~240V AC50/60Hz |
| Dimensions | Fiber |
| Laser head:441*97*108 |
| Controller:510*460*150 |
| Handheld Touch Screen:272*21*218 |

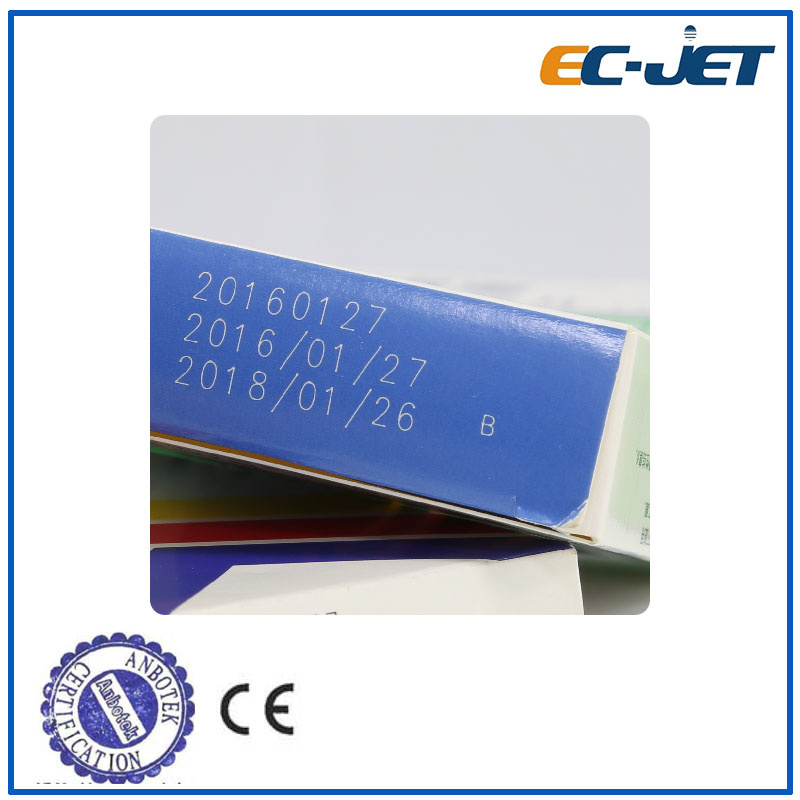

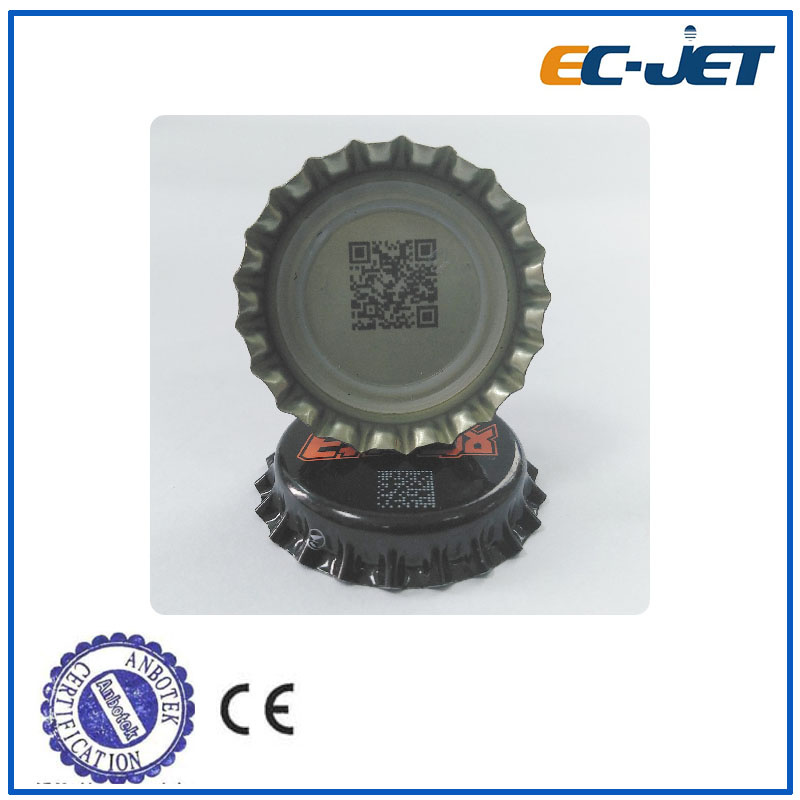

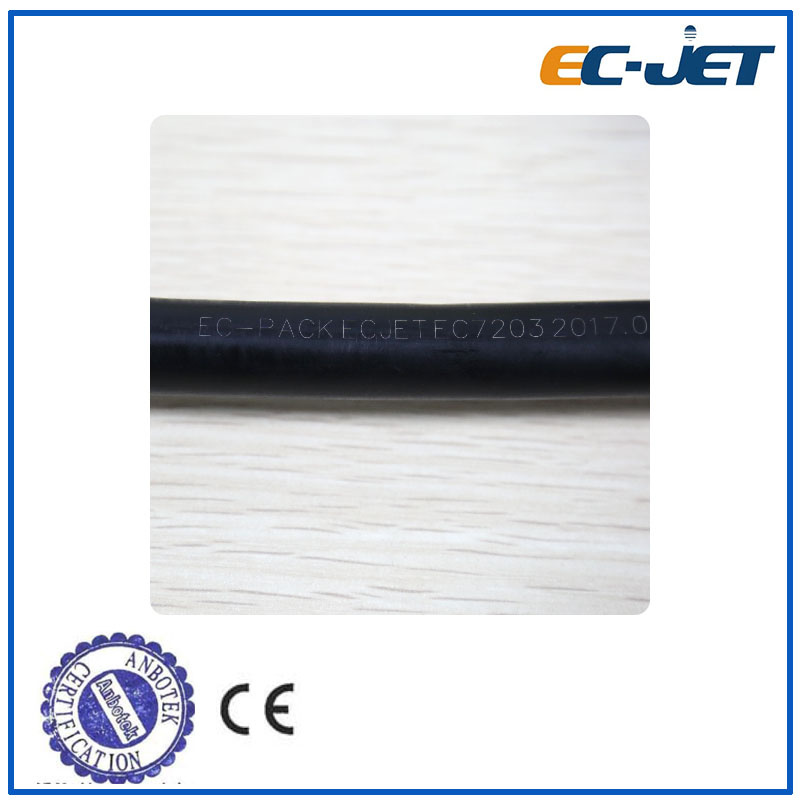

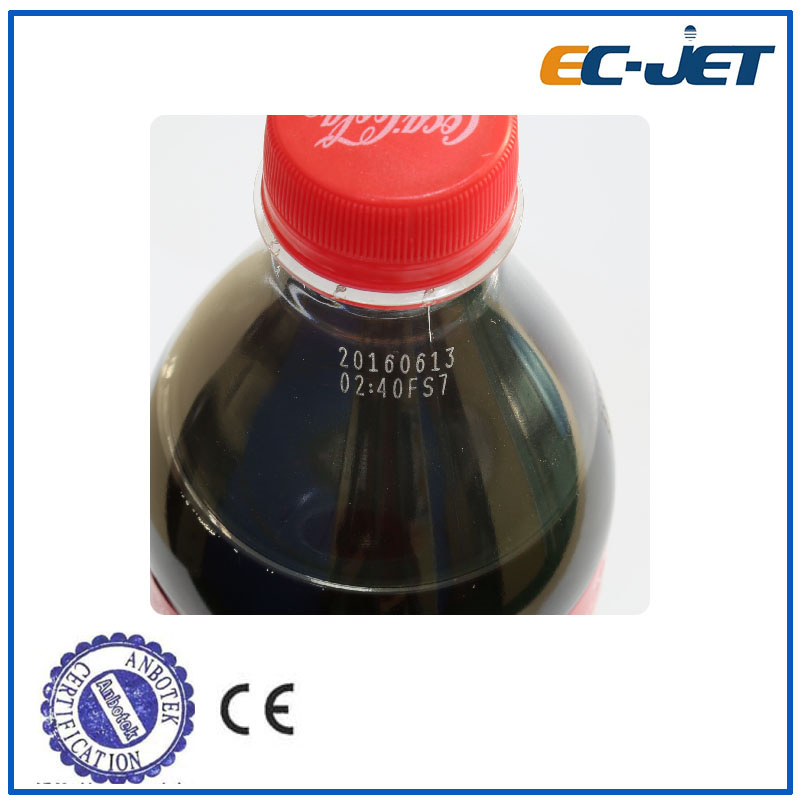

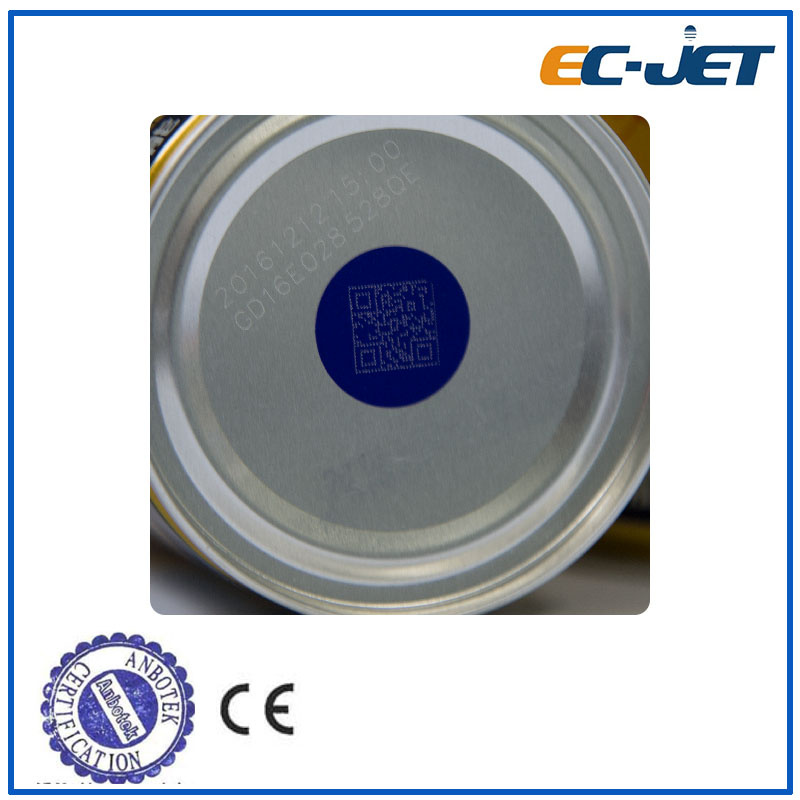

Printing sample
If any enquiry,Please contact us ASAP.
