| Price: | US $ 0.1/Set |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union |
| Prod Model: | HSGP-2KD |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: | Laser Engraving Machine |
| Control: | Automatic |
| Current: | AC |
| Laser Type: | Semiconductor |
| Usage: | Crystal; Galss; Hard Plastic |
| Focus Diameter: | 0.02mm |
| Max Engraving Speed: | 120000points/Minute |
| Laser Head: | Single |
| Focal Length: | 100mm |
| Laser Power: | 3W |
Our HSGP series is a high resolution laser engravingmachine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Suitable material :
Our machine suitable for engraving inside of the crystal cube, common glass. transparent acrylic,and also can marking on surface of metal and hard plastic .

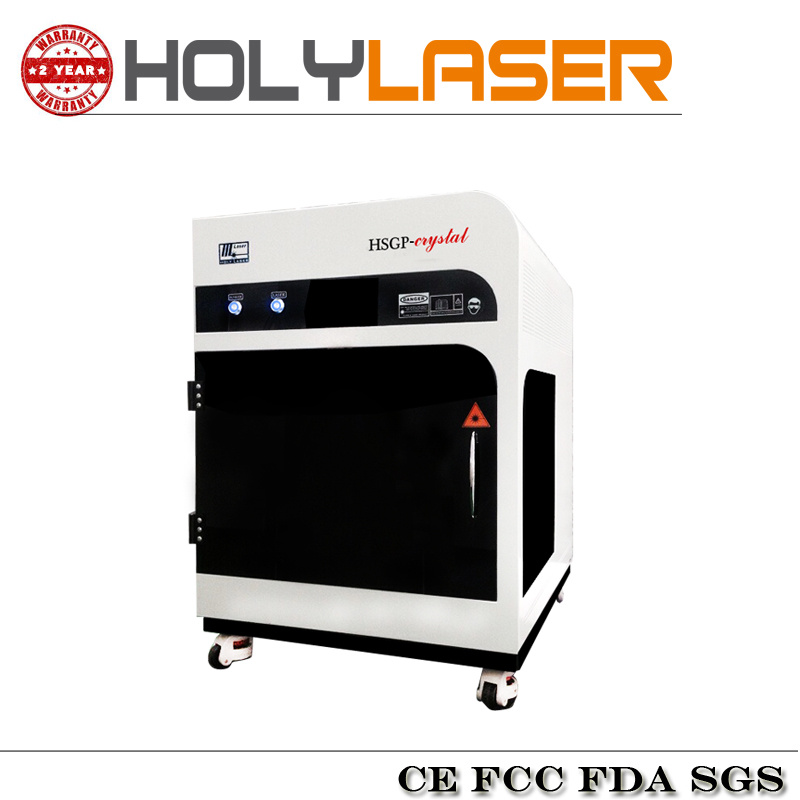

Product Description for 3D Crystal Laser Inner Engraving Machine
Our 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
Advantages for 3D Crystal Laser Inner Engraving Machine
1. CE,FCC, FDA approved,
2.This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed.
5, Our machine also good for QTY(also very suitable for family ,friends ..etc)
Factory Profile:
After-sale service:
Warmly welcome you visit our factory!!!
Warmly welcome you contact us directly for more information!!!
| Style No. | HSGP-2KD(150*200*80) | |||||||||
| Laser pumping | semiconductor diode | |||||||||
| Laser wavelength | 532nm | |||||||||
| Laser frequency | 2kHZ(4000HZ) | |||||||||
| Maximum pulse energy | 1.2mj | |||||||||
| Laser power | 3w | |||||||||
| Q-mode | Acousto-optic-Q | |||||||||
| Pulse width | 7ns | |||||||||
| Beam quality | m2 < 1.5 | |||||||||
| Maximum engrave speed points | 120000dots/minutes | |||||||||
| Maximum marking scope | 150mm*200mm*80mm | |||||||||
| Laser head | one | |||||||||
| Resolution | 800DPI -1200DPI | |||||||||
| Focal length | 100mm | |||||||||
| Focus diameter | 0.02mm | |||||||||
| Cooling | air cooling | |||||||||
| Application materials | crystal .glass etc | |||||||||
| Device input power | AC220V±10% 50-60Hz | |||||||||
| Machine weight | 175kg for machine, 235 kg after packing with computer | |||||||||
| Machine size | 70*90*92cm for machine, 104*78*120 after packing | |||||||||
