Product Specifications
| Prod Model: |
HS GP-2KC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
CNC Engraving Machine |
| Control: |
CNC |
| Current: |
AC |
| Laser Type: |
Semiconductor |
| Usage: |
Glass |
| Brand: |
Holylaser |
| Style Number: |
Hsgp-2kc |
Product Description

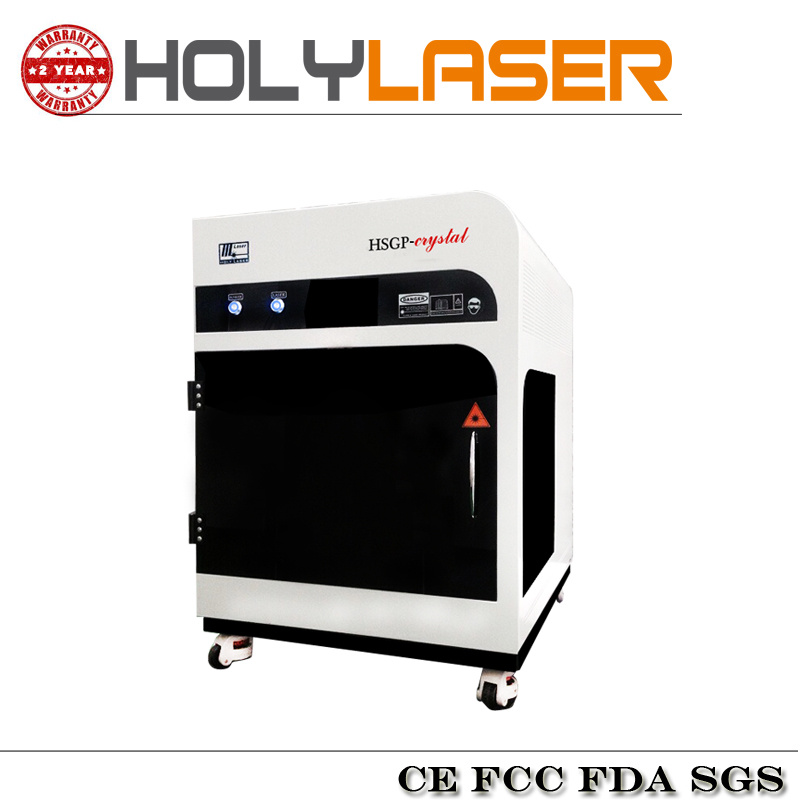

Machine HSGP-2KC high-speed laser engraving machine
CE/FCC authenticate
High efficiency, resolution, stability
Introduction for HSGP-2KC
HSGP-2KC high frequency laser engraving machine is noted in the film that is carved portrait engraving requirements developed by the semiconductor diode laser, the stability of a strong, , no maintenance, traditional engraving machine speed is 20 to 30 times and more elaborate carving point.
HSGP-2KC series high resolution laser engraving machine is really a fine processing machine with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
Specifications for our HSGP-2KC
1, worktable and galvanometer integration technology greatly improved the efficiency of laser processing, make max. Marking scope as 300x400x150mm.
2, High-Frequency laser and galvanometer motion system guarantee high -speed laser engraving. Mosaic engraving technology greatly expands the range of engraving. Which will meet customers' requirement of large format engraving, high-speed, and personalized production.
3, Laser lifetime guarantee to more than 20000. Easy to maintain.
4, without consumables. Don't have spare parts and don't need to replace the Xe Lamp frequently such as the lamp pumped laser device and adjusting the optical path.
5, Automatic positioning technology improves the precision of positioning the crystal in the table, reducing the time of the crystal orientation.
6, The unique frequency selection technology ensure the output rate of the unique point laser reach to 100%, no running point and the leakage phenomenon;
The application of the conversion mode of the four types of point cloud software make the engraving effect showing in various form.
High-precision screw improve the system's positioning accuracy and stability;
Automatic monitoring system of the temperature ensure the normal operation of the equipment;
The chain device at the door guarantees the safety of the operator.
| Technical index: |
| Style: HSGP-2KC |
| Laser pumping: semiconductor diode |
| Laser wavelength: 532nm |
| Laser frequency: 2000Hz |
| Maximum pulse energy: 1.2mj |
| Laser power: 3w |
| Q-mode: Acousto - optic Q- |
| Pulse width: 7ns |
| Beam quality: m2 less than 1.5 |
| Maximum engrave speed points: 120000points /minutes |
| Maximum marking scope (300mm*400mm)*150mm |
| Laser head: one |
| Resolution: 500DPI |
| Focal length: 100mm |
| Focus diameter: 0.02mm |
| Cooling : air cooling |
| Application materials : crystal . glass etc |
| Machine weight: 200kg |
| Device input power : AC220V± 10% 50-60Hz |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
