Product Specifications
Prod Model: |
HSGP-3KC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: |
CNC Engraving Machine |
Control: |
Automatic |
Current: |
AC |
Laser Type: |
Semiconductor |
Usage: |
Glass |
Brand: |
Holylaser |
Product Description

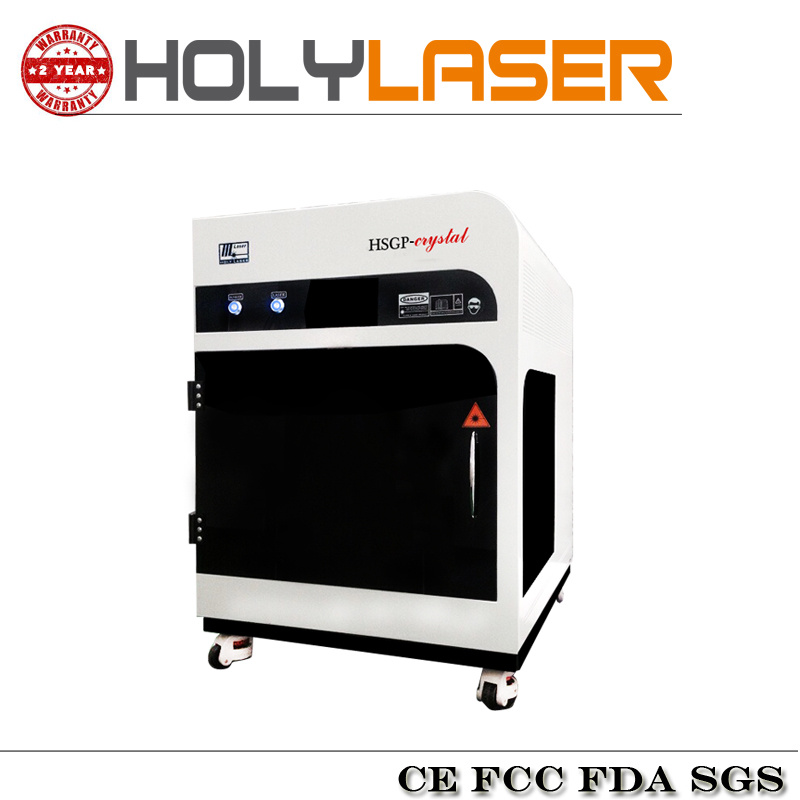

Machine HSGP-3KC high-speed 3D laser crystal engraving machine
CE/FCC authenticate
High efficiency, resolution, stability
Introduction for HSGP-3KC 3D laser crystal engraving machine:
Processing:
HSGP-3KC: Provide perfect glass/ crystal sub-surface engraving in large size(300*400*150mm ), with marking speed: 120, 000points/min. So you can engraving a crystal as big as 300*400*150mm, and also can engraving so many smaller size together in one time. To finish 1 PC need less 2 min.
So this type is very suitable for shops, small quantity production.
Specification for HSGP-3KC
1, Our HSGP-3KC
Worktable and galvanometer integration technology greatly improved the efficiency of laser processing, make max. Marking scope as 300x400x150mm.
2, HSGP-3KC High-Frequency laser and galvanometer motion system guarantee high -speed laser engraving. Mosaic engraving technology greatly expands the range of engraving. Which will meet customers' requirement of large format engraving, high-speed, and personalized production.
3, Laser lifetime guarantee to more than 25000. Easy to maintain.
4, without consumables. Don't have spare parts and don't need to replace the Xe Lamp frequently such as the lamp pumped laser device and adjusting the optical path.
5, Automatic positioning technology improves the precision of positioning the crystal in the table, reducing the time of the crystal orientation.
6, The unique frequency selection technology ensure the output rate of the unique point laser reach to 100%, no running point and the leakage phenomenon;
Payment Term:
1. Payment by T/T
40% in advance, 60% balance
2. Lead time: Within 10 days upon your payment
3. Delievery ways: DHL, TNT, FedEx door to door, or by sea, by air
4. MOQ: 1 SET
The application of the conversion mode of the four types of point cloud software make the engraving effect showing in various form.
High-precision screw improve the system's positioning accuracy and stability;
Automatic monitoring system of the temperature ensure the normal operation of the equipment;
The chain device at the door guarantees the safety of the operator.
Technical index: |
Style: HSGP-3KC |
Laser pumping: semiconductor diode |
Engraving Area: 300*400*130mm |
Laser wavelength: 532nm |
Laser frequency: 3000Hz |
Maximum pulse energy: 1.2mj |
Laser power: 5w |
Q-mode: Acousto - optic Q- |
Pulse width: 7ns |
Beam quality: m2 less than 1.5 |
Maximum engrave speed points: 180, 000points /minutes |
Maximum marking scope : (300mm*400mm)*150mm |
Laser head: one |
Resolution: 800DPI |
Focal length: 150mm |
Focus diameter: 0.02mm |
Cooling : air cooling |
Application materials : glass etc |
Machine weight: 300kg |
Device input power : AC220V± 10% 50-60Hz |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
