| Price: | Negotiable/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | T/T |
| Prod Model: | MD-200D |
|---|---|
| Application: | Automobile Machine |
| Warranty: | 1 Year |
| Condition: | New |

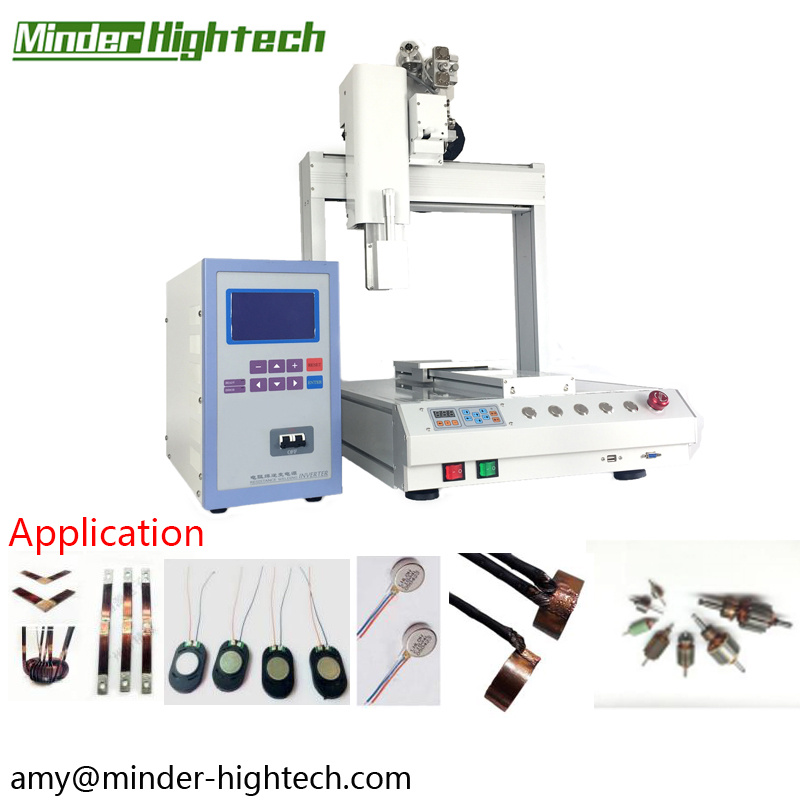

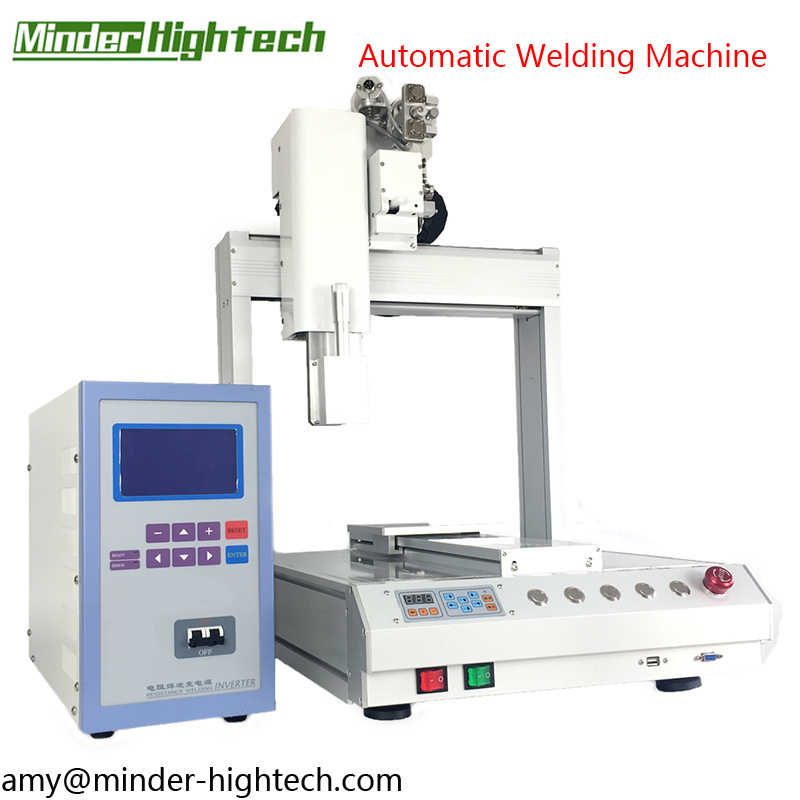

PRODUCT SHOW
WELDING SAMPLES
1. Built in DC resistance welding inverter, high control precision
and stable output.
2. Step motor drive the movement of workpiece, accurate positioning.
3. Automatic welding, saving labor costs.
4. High production efficiency, good welding consistency.
5. Provide the design and machining of fixture for customer.
TECHNICAL PARAMETER
Type | MD-200D | MD-300D |
Range of travel | 200(x))*200(y)*80(z) mm | 300(x))*300(y)*80(z) mm |
Repetition precision | ±0.02 mm (x/y/z) | |
Applications | Resistance spot welding or hot bar | |
Driving mode | Stepper motor | |
Axes | 3 (Max. up to 4 axes) | |
Display | LCD | |
Control system | Point-to-point control | |
Programming mode | Teaching box | |
Program capacity | 9999 | |
Platform | 1 | |
Welding head | 1 | |
Compressed air pressure | 0.1~0.6 MPa | |
Input voltage | AC 220 V 50 Hz | |
optional function | Visual positioning system | |
Dimensions (L*B*H) | 380*500*725 mm | 480*600*725 mm |
Weight | 35 kg | 42 kg |
QUALIFICATION HONOR
COMPANY INFORMATION
Guangzhou Minder-Hightech Co.,Ltd(MINDER-HIGHTECH CO.LIMITED HONGKONG ) is focused on connection(welding).
We are comprised by a group of high educated specialists,with the leader of overseas professor, some of us have more than 20 years welding experience,our goal is to provide high performance product but low price and exceeded service.
We care for the safety of operator, this year, we developed a safety system in spot welding industry named SOFT TOUCH system,which can prevent heavy pinch point injury.
We are specialized in most of the connection(welding) technics,the most application we have participated in are electronic component(resistance,capacitor,inductor),chip on board,automotive electronic accessories,cell phone,IC cards,motor armature commutator etc.By material, we have engaged in connecting the Aluminum, Copper, Brass, Au(gold), Platinum, Nickel, Enameled wire, etc.
We also provided the full IC package line; and LED producing line; Crystal oscillator producing line; as well as the wafer machining equipment.
Our product are classified into resistance spot welding,inverter seam welding, ultrasonic wire bonding,hot bar soldering,automatic TIN soldering,stud welding, all the product are with mature latest technology,high performance,high precision,and high reliability.
At the same time, we maintain a good relationship with the high school scientific research institution,we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.
We chose the most open and industrialized city-guangzhou-to be our base head place,to ensure the efficiency and rapidly response.
These years,we proud of our growth with the famous company such as TPT,K&S,ASM,Bosch,Miyachi,Uniteck,Avio,Apollo,LPKF etc.
If you need more further details about our machine, please feel free to contact us .
