Product Specifications
| Prod Model: |
206/308 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
3.579 - 60MHz |
| Load Capacitance Cl: |
10pf Std. Series Available |
| Frequency Tolerance Fl: |
+/-10 - 50ppm |
| Temperature Tolerance Tl: |
+/-50ppm Std. |
| Operating Temperature Ot: |
-10 to +60c Std |
| Storage Temperature St: |
-55 - +125c |
| Shunt Capacitance Co: |
7pf Max |
| Drive Level Dl: |
0.01 - 1mw |
| Insulation Resistance Lr: |
500min (100DC) |
| Aging @ 25c: |
+/-5ppm Max |
Product Description

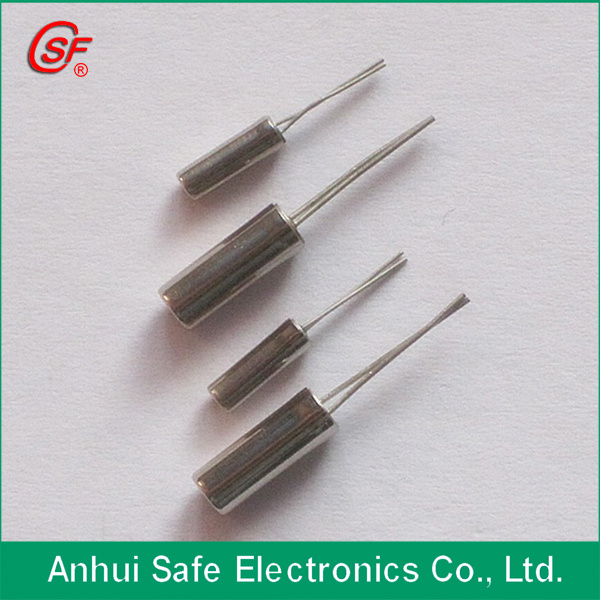

32.768Khz Columnar Crystal Resonator For Clock
Features
1) Pin type
2) Time keep clock signal
3) Suitable for small telecommunication equipment
4) Size: Diameter 2.0 x6.0, 3.0x8.0
|
Frequency Range |
3.579 - 60Mhz |
|
Load Capacitance CL |
10pf Std. Series available |
|
Frequency Tolerance FL |
+/-10 - 50ppm |
|
Temperature Tolerance TL |
+/-50ppm Std. |
|
Operating Temperature OT |
-10 to +60C Std. |
|
Storage Temperature ST |
-55 - +125C |
|
Shunt Capacitance CO |
7pf Max |
|
Drive Level DL |
0.01 - 1MW |
|
Insulation Resistance LR |
500Min (100DC) |
|
Aging @ 25C |
+/-5ppm Max |
Operation Mode
|
Frequency |
Mode |
RS(Q Max) |
|
3.579 - 3.699 |
FUMD |
200 |
|
3.700 - 3.999 |
FUMD |
180 |
|
4.000 - 4.099 |
FUMD |
150 |
|
4.100 - 4.999 |
FUMD |
120 |
|
5.000 - 5.999 |
FUMD |
100 |
|
7.000 - 9.999 |
FUMD |
80 |
|
10.000 -11.999 |
FUMD |
70 |
|
12.000 -13.999 |
FUMD |
60 |
|
14.000 - 15.999 |
FUMD |
50 |
|
16.000 - 30.000 |
FUMD |
40 |
|
27.000 - 60.000 |
3 rd Overtone |
100 |
