| Price: | US $ 160-240/Ton |
|---|---|
| Min Order: | 1/Ton |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | SW241 |
|---|---|
| Certificate: | ISO9001 |
| Usage: | Sandblasting, Water Jet Cutting |
| Specific Gravity: | 3.7-4.2g/cm3 |
| Bulk Density: | 1.8-1.9g/cm3 |
| Mohs Hardness: | Mohs 7.5-8.0 |
The garnet is a kind of garnet consisting of iron aluminum silicate. The main colors are orange red, brown red and cherry red. The hardness is 7.5-8. It's a kind of weakly magnetic mineral,
transparent, luster. It's good natural abrasive by it`s harness, high toughness, sharp edge and stable chemical property. It is also a new type of water purification material by it`s large proportion, acid, wear resistance, high strength and chemical stability.
| Mesh | MM | Percentage Retention - Typical(%) | |||||
| - | - | 8/12 | 12/25 | 20/40 | 30/60 | 80 | 100 |
| 8 | 2.360 | 0 | |||||
| 12 | 1.700 | 0-3 | |||||
| 14 | 1.400 | 10-21 | 0-1 | ||||
| 18 | 1.000 | 70-85 | 12-25 | ||||
| 20 | 0.850 | 0-7 | 30-45 | 0-5 | |||
| 30 | 0.600 | 0-3 | 30-50 | 50-70 | 0-5 | ||
| 40 | 0.425 | 3-11 | 10-20 | 15-30 | 0 | ||
| 50 | 0.300 | 0-10 | 40-60 | 15-30 | |||
| 60 | 0.250 | 10-25 | 20-30 | ||||
| 80 | 0.180 | 5-10 | 20-50 | 0-10 | |||
| 100 | 0.150 | 5-10 | 20-40 | ||||
| 120 | 0.125 | 40-60 | |||||
| 140 | 0.106 | 5- | |||||
| Product Name | Almandite Garnet / Garnet Sand | |
| COLOUR | Red Coloured; Intensely Red; Red/Brown; Reddish pink; Reddish brown | |
| SIZE | 8/12 &12/25 &20/40 & 30/60 & 80# & 100# &120#; | |
| APPLICATION | Sand blasting; Water & liquids filtration; Waterjet Cutting. | |

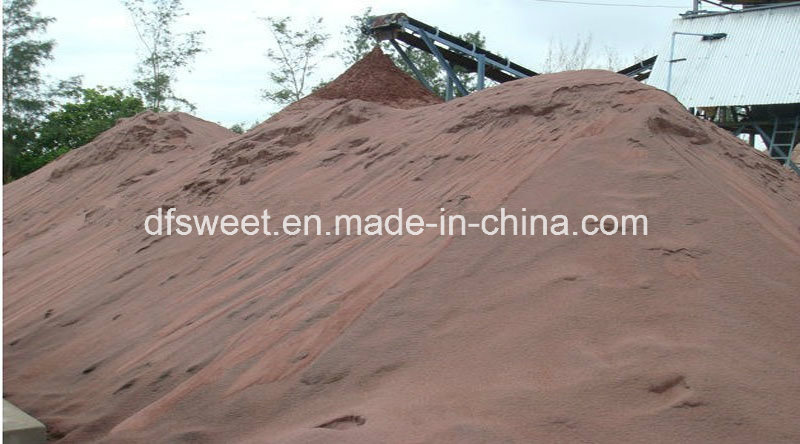

| RAW MATERIAL | Rock garnet sand mined from 200 meters underground. | |
| PRODUCTION PROCESS | Crushing→magnetic separation→washing →drying →screening | |
| MINERALOGICAL COMPOSITION | Garnet (Almandite) | 95% at least |
| Ilmenite | 1-2% | |
| Quartz | <0.5% | |
| Others | 0.5% | |
| CHEMICAL ANALYSIS | Silicon Dioxide (SiO2) | 39.03% |
| Ferric Oxide (Fe2O3) | 24.62% | |
| Aluminium Oxide (Al2O3) | 15.14% | |
| Calcium Oxide(CaO) | 10% MAX | |
| Magnesium Oxide (MgO) | 6%MAX | |
| TIO2 | 2%MAX | |
| MnO | 1% MAX | |
| PHYSICAL CHARACTERISTICS | Chloride | <25PPM |
| Hardness (Mo's ale ) | 7.5 to 8 | |
| PH | >7 | |
| Conductivity | 105 μS/cm | |
| Bulk density | 2.34 g/cm3; 145 lb/ft3 | |
| Specific gravity | 4.10 g/cm3 | |
| Grain shape | Sharp angular | |
Mainly Application:
1.For glass, crystal, jade and other products.
2.For sandpaper and sponge; s urface preparation.
3.For free grinding and polishing. resin abrasives. coated abrasives.

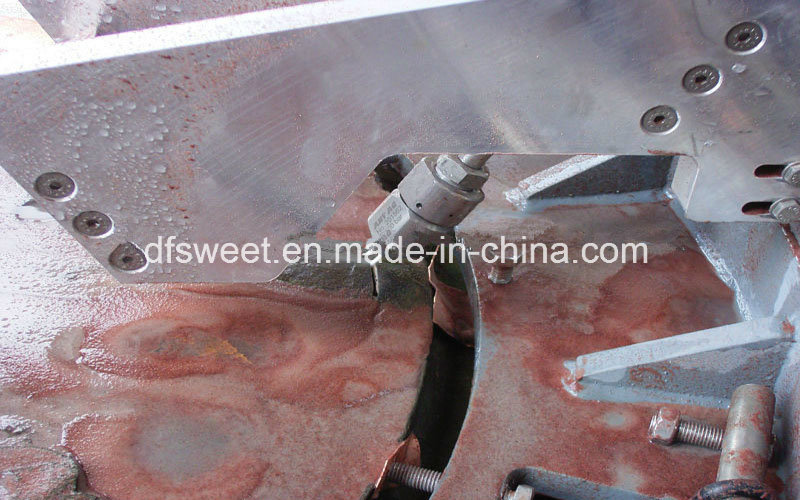

4.For sandblasting. waterjet cutting.water filtration. stone washing.
5.for various of applications used on metal, brick, concrete and masonry.
6.For polishing of glass screen, single crystal silicon, optical lens, rust sand blasting.

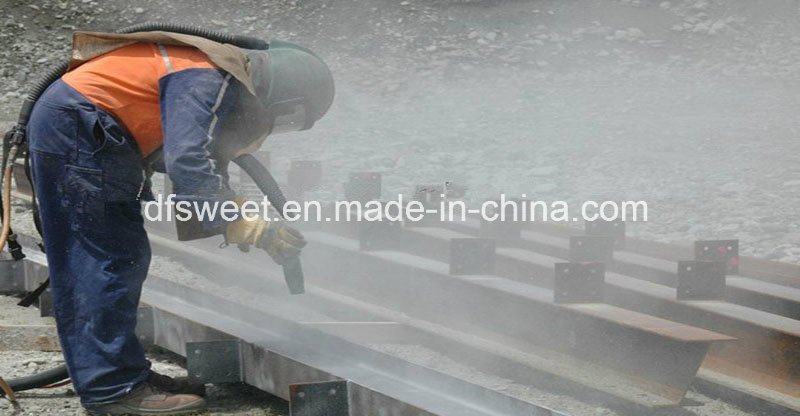

7.For sandblasting abrasive media, it is mainly used in remove rust, paint and corrosion.
Our Services
1.Our strong team provide you reliable service that make you feel purchasing is more easier
2. We ensure that we can supply capability with competitive price.
3. Work strictly to guarantee product quality,
4. Highest standard of integrity. Guarantee customer's benefit.
5. Supplying Pet Coke, Met coke, Foundry Coke, Carbon Raiser etc.
Other informations

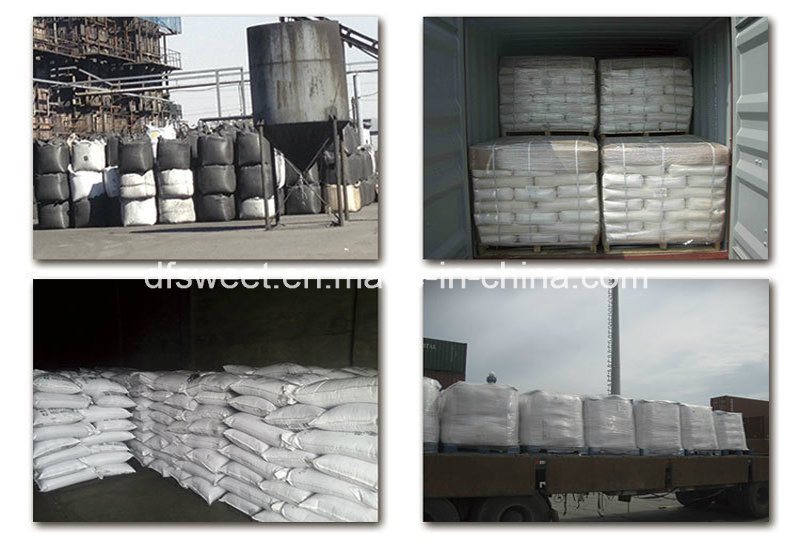

| packing | 25kg PVC bags+1MT big bag or as customers'requested |
| Trade terms | FOB CNF CIF |
| Payments terms | 1).T/T 50%advance ,the balance against copy of B/L 2).Irrevocable L/C 3).Negotiated |
| Delivery time | 1).After we receive deposit within 7-10days 2).After we receive L/C within 7-10days 3).Negotiated |
| Sample | Sample is free within 1kgs |
| MOQ | 20`ft container |
| Loading port | Tianjin port ,China |
