Product Specifications
| Prod Model: |
CV3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cube Ice Machine |
| Ice Size: |
Cube: 22mm*22mm*22mm & 29mm*29mm*22mm |
| Control System: |
Siemens PLC Program Control |
| Compressor: |
Bitzer/Refcomp/Copeland |
| Cooling Way: |
Water Cooled Condenser |
| Freezing Time: |
20 Minutes or 23 Minutes |
| Refrigerant: |
R22/R404A |
| Supply Power: |
380V, 50Hz, 3p or 220~240V, 60Hz, 3p |
| Refrigeration Components: |
Castal or Danfoss |
| Electrical Components: |
LG (Ls) |
| Structure: |
Integral Type |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Control: |
Siemens PLC Program Control |
| Material: |
Stainless Steel 304 |
| Ice Shape: |
Crystal Cube Ice |
| Application: |
Hotel, Beverage, Bar, Restaurant, etc |
| Power: |
9000W |
Product Description

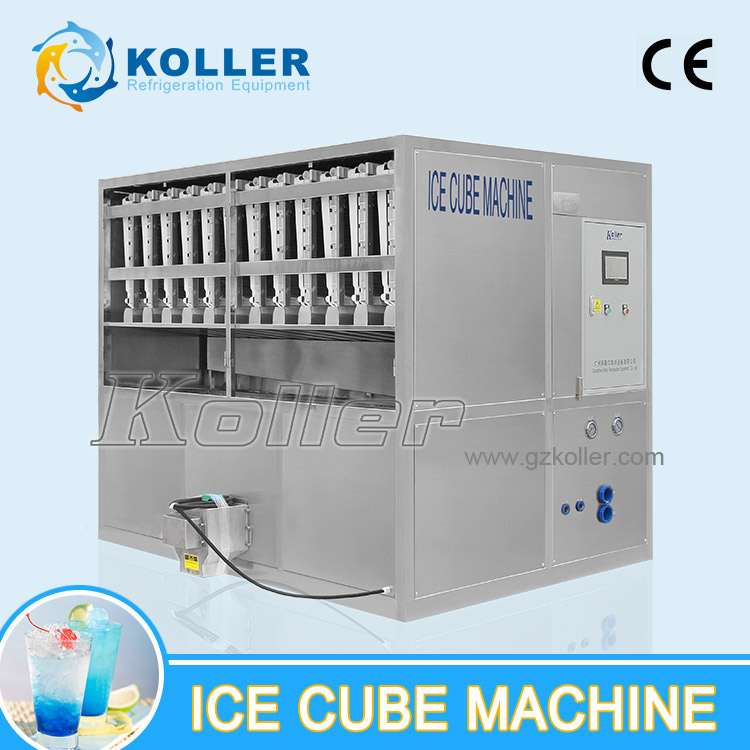

(1) Cube Ice Machine CV3000 by PLC Program System
1. Capacity: 3tons in 24hrs
2. Ice size: 22mm*22mm*22mm & 29mm*29mm*22mm
3. PLC program control
4. Ice freezing time: 20 to 23 minutes
(2) Supply power: 380V/50Hz/3P or 220V~240V/ 60Hz/3P
(3) Packing: In standard plywood case.
(4) Installation:
1). Installing by the user: We will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
(5) Any delay due to customer's reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.
(6) Warranty period: One year for the machine. If there are some problems, we will try our best to solve it. Meanwhile, we will offer you some spared parts.
(7) Delivery time: 30 days after receiving the advanced payment.
(8) All necessary parts such as water pipes, water pumps and accessories are offered free of charge when delivery.
(9) Operational manual and CD will be offered to guide the installation.
KOLLER Commerial Ice Cube Machine/Ice Cube Machine / Ice Machine adopts the first-class refrigerant components of the world with the characteristics of high efficiency, energy saving and low noise. Meanwhile, the ice maker has passed the International Assurance Standard, ISO9001: 2008 & CE.
| Model | Capacity
(Ton/24hrs) | Compressor
Power(KW) | Compressor
brand | Water pump power (KW) | Outer Dimension(mm) (Length*Width*Height) |
| CV1000 | 1 | 3 | Maneurop/Bitzer | 0.55 | 1380*1440*1800 |
| CV2000 | 2 | 6 | Bitzer/Copeland/Refcomp | 1.5 | 1770*1510*2040 |
| CV3000 | 3 | 9 | Bitzer/Copeland/Refcomp | 1.5 | 2070*1920*2030 |
| CV4000 | 4 | 15 | Bitzer/Copeland/Refcomp | 3 | 2690*1930*1870 |
| CV5000 | 5 | 18.5 | Bitzer/Copeland/Refcomp | 3 | 3060*1920*2020 |
| CV6000 | 6 | 22.5 | Bitzer/Copeland/Refcomp | 3 | 4000*2100*2100 |
| CV8000 | 8 | 30 | Bitzer/Copeland/Refcomp | 4 | 5200*2050*2100 |
| CV10000 | 10 | 37.5 | Bitzer/Copeland/Refcomp | 4 | 5880*2050*2100 |
| CV15000 | 15 | 57.45 | Bitzer/Copeland/Refcomp | 7.5 | 8200*2100*2100 |
| CV20000 | 20 | 74.30 | Bitzer/Copeland/Refcomp | 7.5 | 11600*2100*2100 |
1. Research, Design, Sale, Manufacture
2. Cube Ice Machine / Block Ice Machine / Plate Ice Machine / Tube Ice Machine.
3. Products sold well in Southeast Asia, Europe, Middle Ease, Africa, South America, Australia, South Pacific Islands etc.
Guangzhou Koller R & E Co., Ltd. (Koller) is established under the management of Guangzhou Vista M&E Equipment Co., Ltd since 2004. Because of foreign investment, our company decides to expand investment and moves to Panyu District, Guangzhou, China for a better purchase platform and high-quality products.
Our experience: We have engaged in the refrigeration for more than seven years and have rich experience in research, design, production, sales and after sales in refrigeration and heat exchange.
Our Service Team: With strong team cooperation, great passion, and 100% patience, responsibility for each department for each staff.
Our Aim: 100% satisfaction
Our After sales Service: Have owned an exquisite refrigeration engineers team with advanced refrigeration technology and mechanical treatment technology, service at any time with best attitude.
Our Customer Project Country: South Africa, Tchad, Nigeria, Mali, Malaysia, Cambodia, Philippine, Vietnam, Turkey, Papua New Guinea, Iran, Saudi Arabic, Mexico, Venezuela, Curaco.
Our Product Application Filed: Large edible ice plants, supermarkets, aquatic products processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing and concrete cooling
Our Products: Commercial Ice Cube Machine; Commercial Ice Block Machine; Industrial Ice Block Machine; Tube Ice Machine; Plate Ice Machine; Ice Packaging System; Ice Conveyor System; Cold Room (Walk In Freezer).
