3 Layers Vibrating Sieve for Citric Acid Crystal
| Price: |
US $ 850-2500/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
XZS1200-3 |
| Material: |
Stainless Steel |
| Power: |
0.75kw |
| Voltage: |
110V/220V/380V/440V |
| Phase: |
Single Phase/Three Phase |
| Frequency: |
50Hz/60Hz |
| Used For: |
Sizing/Sifting |
| Application: |
Citric Acid Crystal |
| Layer: |

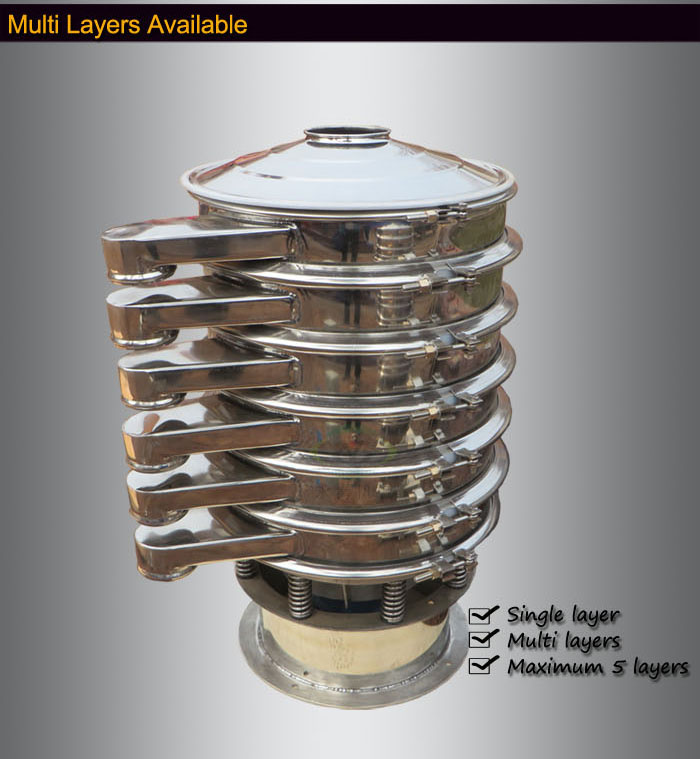

1-5 Layers |
| Mesh Size: |
0.02--20mm |
| Certification: |
Ce,ISO |
| Type: |
Circular |
| Object: |
Chemicals |
| Shaft Number: |
Single |
| Condition: |
New |
| Function: |
Screening/Sifting |
| Usage: |
Citric Acid Sieve |
| Works: |
Rotary Vibration |
Product Description

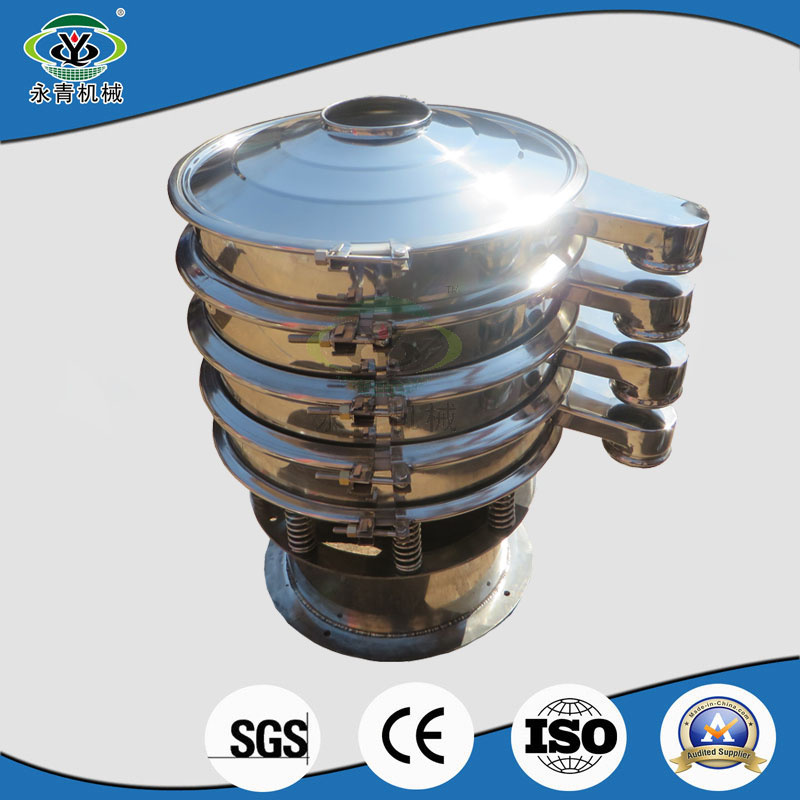

Citric Acid Crystal Vibrating Screen
Introduction of Citric Acid Vibrating Screen:

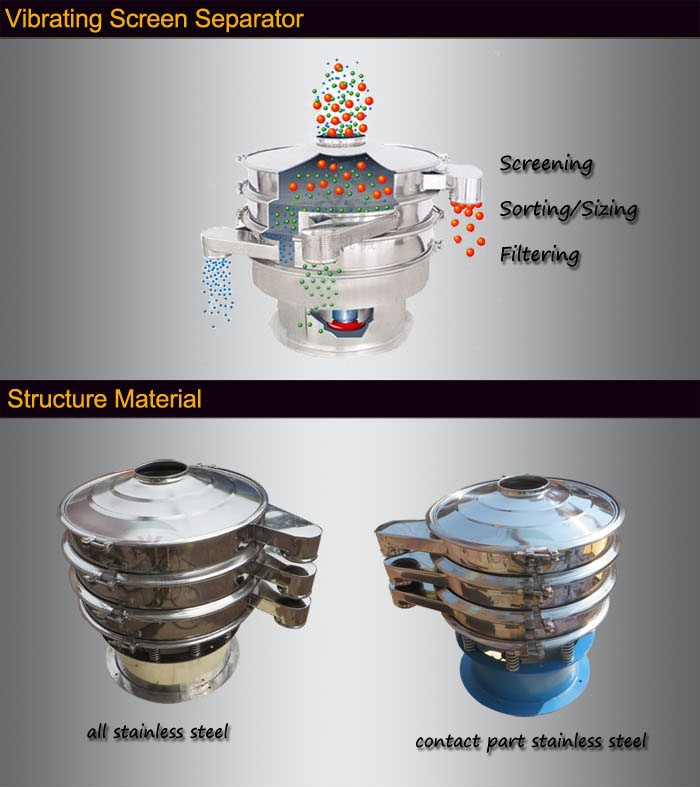

The XZS series vibration screen is a sorting /separation /sizing /screening machine for mining , food processing ,agriculture and chemical industries . use vibrating motor as vibraion source making materials in the screen box move centrifugally ,then separate to several fractions by different mesh size . by adjusting eccentric blocks' angles of the motor , can easily change the vibrating force , and then change materials movement trails.
Application of Vibration Screen:The sieve shaker machine is suitable for screening powders , granule particles and liquids.
Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime, , juices, beverages, sugar, salt, monosodium glutamate, spices , sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering
Features of Vibrating Sieve:1. high efficiency in screening , separating.
2. suitable for all kinds of powders ,particles and liquids,

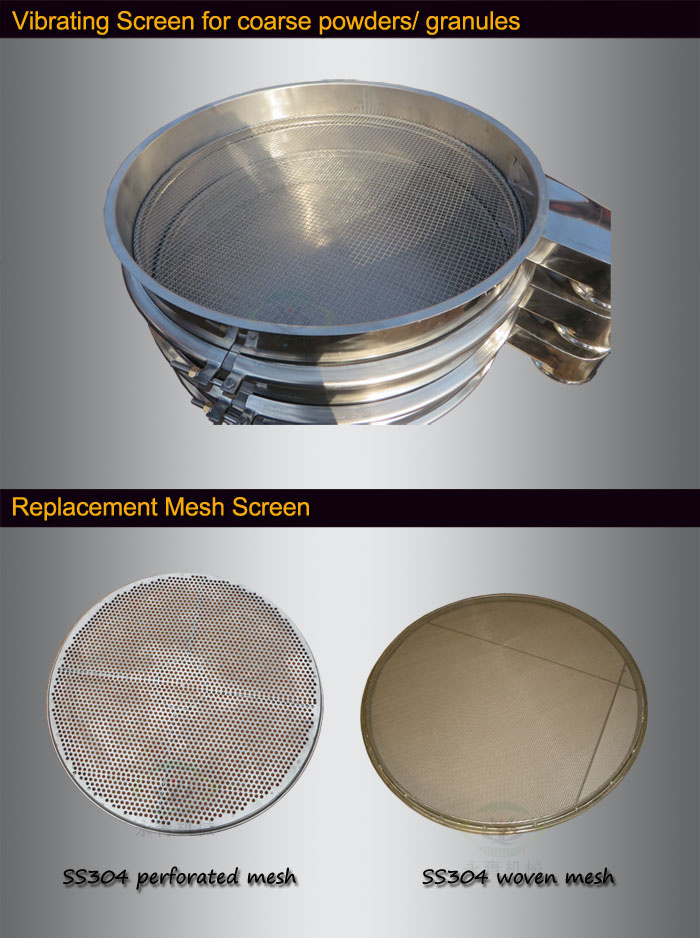

3. no block of screen nets , adding bouncing ball for screening fine powders
4. with quick release ring ,fast and flexible in change of screen
5. environment friendly , the dustproof lid prevent powder flow efficiently
6. the outlet direction can be adjusted freelyQ : How to Get a Suitable Vibratory ScreenA : Please kindly confirm following information , then suitable screening solution will be offered .
1. what is your raw material ?
2. what is your process capacity per hour ?
3. what is the screen mesh size you need ? Different Models for Vibrating Screen Machine | Model | XZS-
500 | XZS-
600 | XZS-
800 | XZS-
1000 | XZS-
1200 | XZS-
1500 | XZS-
1800 | XZS-
2000 |
| Dia (mm) | 500 | 600 | 800 | 970 | 1170 | 1470 | 1770 | 1970 |
| Layer | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-3 | 1-3 |
| Screen Dia (mm) | 430 | 530 | 730 | 900 | 1100 | 1400 | 1700 | 1900 |
| Screen Mesh | 0.02--20mm |
| Maximum particle size(mm) | <20 | <20 | <30 | <30 | <50 | <50 | <50 | <50 |
| Vibration time (times/min) | 1440 |
| Power(kw) | 0.25-
0.55 | 0.25-
0.55 | 0.55-
0.75 | 0.75-
1.5 | 1.1-
1.8 | 1.5-
2.2 | 2.2 | 2.2 |
Company Profile:Yongqing company is built in 2006, located in XinXiang City, Henan Province, China. Over the years , we concentrated on screening machines. With reliable product , reasonable charge , superior customer service , our company gains great reputation home and abroad.provide solutions for various materials screening , separating.

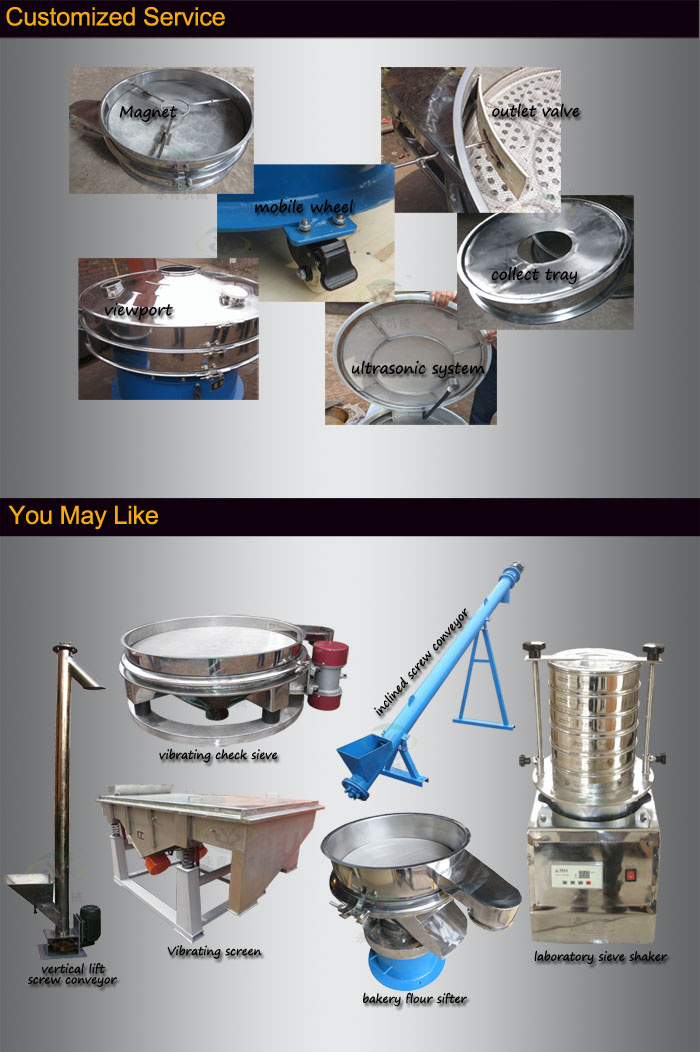

The production mainly includes: circular vibrating screen, linear vibraitng screen, test sieve shaker, mining vibrating screen, cement vibrating screen, vibrating motor, vibrating feeder, screw conveyor, bucket elevator and vibrating table.
Welcome to visit and communicate.
As a Chinese screening equipment, conveying unit, and feeding device provider, Yongqing Screen Machine Co., Ltd. Was founded in Xinxiang City, Henan Province, China, in Oct. 2006. We have rich experience in the product research, development, manufacturing, and professional service. Our products include vibrating screen, vibrating motor, belt conveyor and so on. They can be widely used for food screening, impurity removing from ceramic glaze, ore processing, and so on. If clients need special products, our R&D department can either update our existing products or design new products according to the requirements.
We have more than 5 years of international trade experience, while our screening machines and related accessories have entered more than 50 countries and regions. Currently, you can find our first level agencies in Indonesia and Portugal.
Our premium screening equipment, conveying equipment and feeding machine have been widely welcomed by our customers for our processional production techniques, considerate support and service, and reasonable price, In addition, we also provide various services like project design, production technique design, non-standard product design, and on-site technical support.
We have established an efficient quality control system conforming to ISO9001 standard, covering from raw material purchasing, components processing, product assembly, up to the finished products tests. Three quality inspection procedures for the production department, quality insurance department, and our customers, respectively, have been continuously optimized to guarantee the excellent product quality.
In spite of the successes we have accomplished, we will never stop progressing and providing better products. Just contact us if you are interested in our products or have any advice for us.
