| Price: | US $ 0.003-0.005/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Chrome Steel Ball |
|---|---|
| Size Range: | 0.6mm-180mm Chrome Steel Ball |
| Grade: | G10-1000 Chrome Steel Ball |
| Hardness: | 58-65 HRC Chrome Steel Ball |
| Material Mark: | AISI 52100/ 100cr6/ 100c6/ Suj2/ Wks 1.3505 |
| International Equivalent: | AISI 52100/ 100cr6/ 100c6/ Suj2/ Wks 1.3505 |
| Shape: | Solid Round Chrome Steel Ball |
| Certifications: | BV; ISO; ASTM |
| Model No.: | AISI 52100 Chrome Steel Ball |

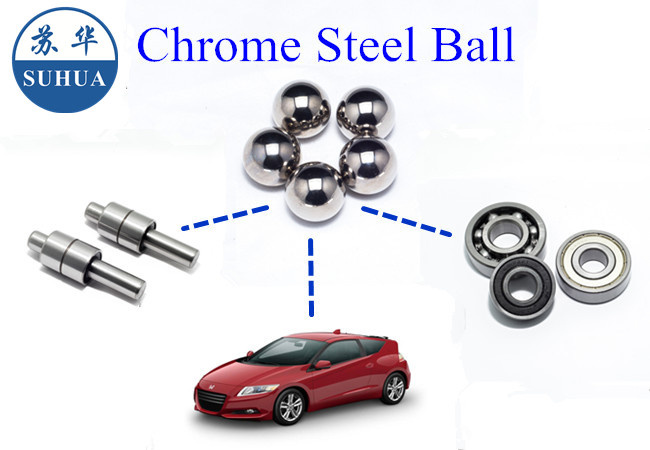

| Application: | Ball Bearings, Bicycles, Automobile Industry |
| Magnetic: | Yes |
3.175mm 52100 Bearing Steel Ball from China Factory
Introduction:
1. This is an oil hardened steel, which is universally used by the ball and roller
bearing industry.
2. This steel has very good hardness, very good physical characteristics and
excellent wear resistance.
Application:
Detailed information:
| Stainless steel ball AISI 52100 | ||||||||||
| 1. Material | AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505 | |||||||||
| 2. Size Range | 0.6mm-180mm | |||||||||
| 3. Grade | G10-1000 | |||||||||
| 4. Hardness | 58-65 HRC | |||||||||
| 5. Characteristic | (a)Mainly used in bearings (b)Good hardness (c)Good resistance to deformation with excellent wear resistance (d)Low corrosion | |||||||||
| 6. Magnetic | YES | |||||||||
| 7. Application | Ball bearings, bicycles, automobile industry | |||||||||
| 8. Chemical composition | ||||||||||
| C% | Si% | Mn% | S% | P% | Cr% | Mo% | Cu% | AI% | O% | |
| min. | 0.93 | 0.15 | 0.25 | --- | --- | 1.35 | --- | --- | --- | --- |
| max. | 1.05 | 0.35 | 0.45 | 0.015 | 0.025 | 1.65 | 0.1 | 0.3 | 0.05 | 0.0015 |
| 9.Packing | Standard: 10kg or 20kg per carton, 1 ton per pallet or as customer required | |||||||||
| 10.Conditioning | dry or oiled | |||||||||
| 11.Delivery time | Stock within a short time or 35 days. | |||||||||
| CHANGZHOU HCCHAUARI STEEL BALL CO., LTD. | ||||||||||

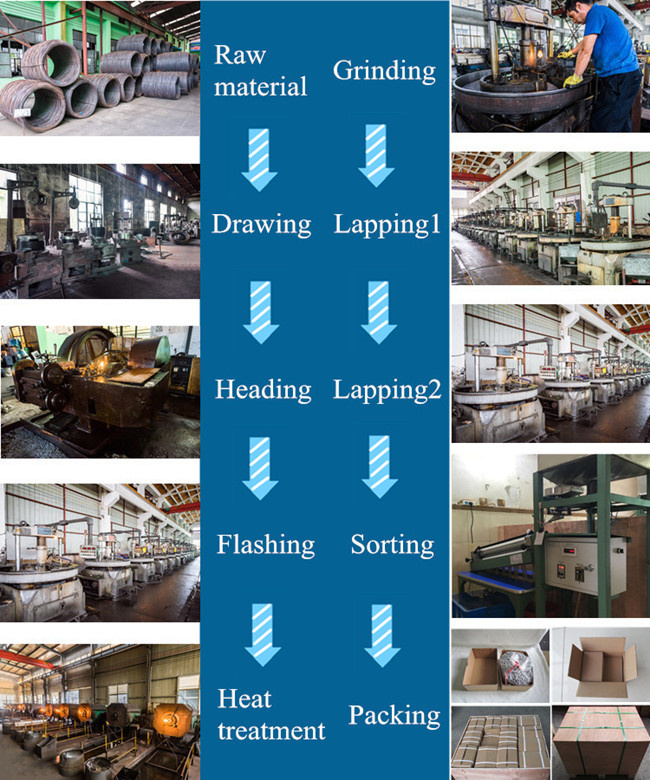

| Manufacture process of steel balls | ||||
| Step 1 Heading | Balls blanks are cold headed from rolls of wire. | |||
| Step 2 Flashing | Rolling balls between two hard alloy plates to removes the slight band and small protrusions. | |||
| Step 3 Heat treat | Heating balls to a high temperature in furnace and quenching balls in a liquid bath. | |||
| Step 4 Rough grind | Rolling balls between the face of a fixed iron plate and a very hard fire-grit grinding wheel. Then rolled the hardened ground balls between two cast iron plates. | |||
| Step 5 Cleaning | The final production operation cleans the finished balls and adds a shiny luster. | |||
| Step 6 Final Inspection | Balls are gauged, visually inspected and subjected to other quality tests to insure every customer's specifications are achieved. | |||
| Step 7 Packaging | The balls are packaged in accordance with customer specifications for shipping. | |||
Services:
1. All the inquiries will be reply within 24 hours
2. For the steel ball, please kindly let us know the size, material, grade and quantity.
3. For the bearing, please kindly let us know bearing type, material, Accuracy Grade/Class, and quantity.
Certification:
Exhibition:
FAQ:
A: Stainless steel ball, Chrome steel ball, Carbon steel ball, Brass ball, Aluminum ball, Copper ball, coated ball.
A: T/T 30% as deposit, and 70% before delivery.
A: EXW, FOB, CFR, CIF.
A: Inventory with 1-3 days or 25-30 days. The specific delivery time depends on your quantity.
