Product Specifications
| Prod Model: |
MCACR |
| Color: |
White |
| Usage: |
Refractory |
| Purity: |
95%-99.7% |
| Raw Material: |
95%-99.7% Alumina Ceramic |
| Density: |
3.6 - 3.9g / Cm3 |
| Temperature: |
1500c - 1800c |
| Delivery Time: |
6-30days |
| Product Name: |
Alumina Ceramc Ring |
| Refractoriness (',℃): |
1770< Refractoriness< 2000 |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Material: |
Alumina Cement |
| Shape: |
Ring |
Product Description

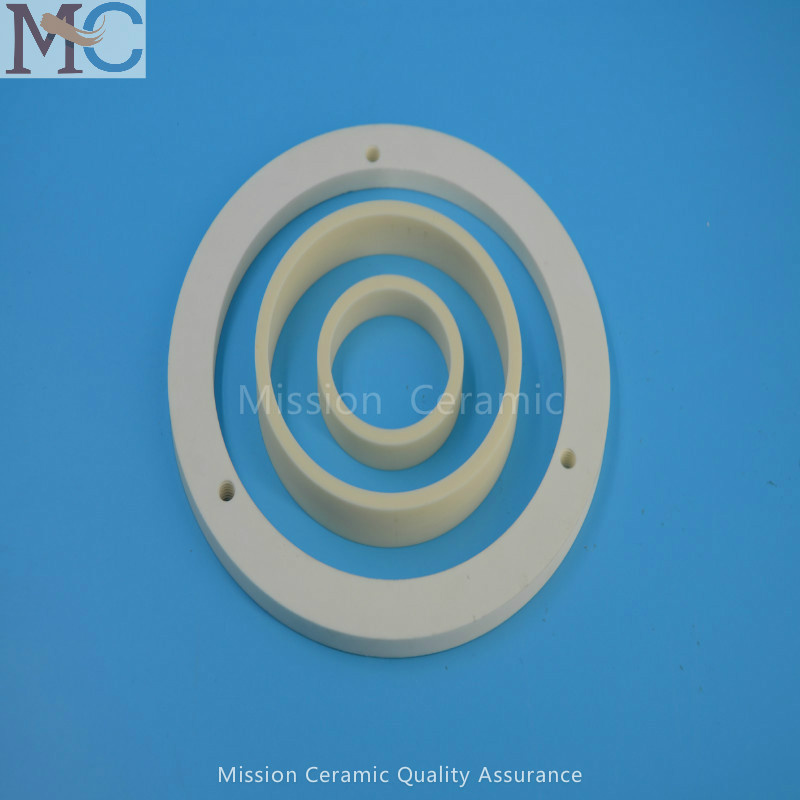

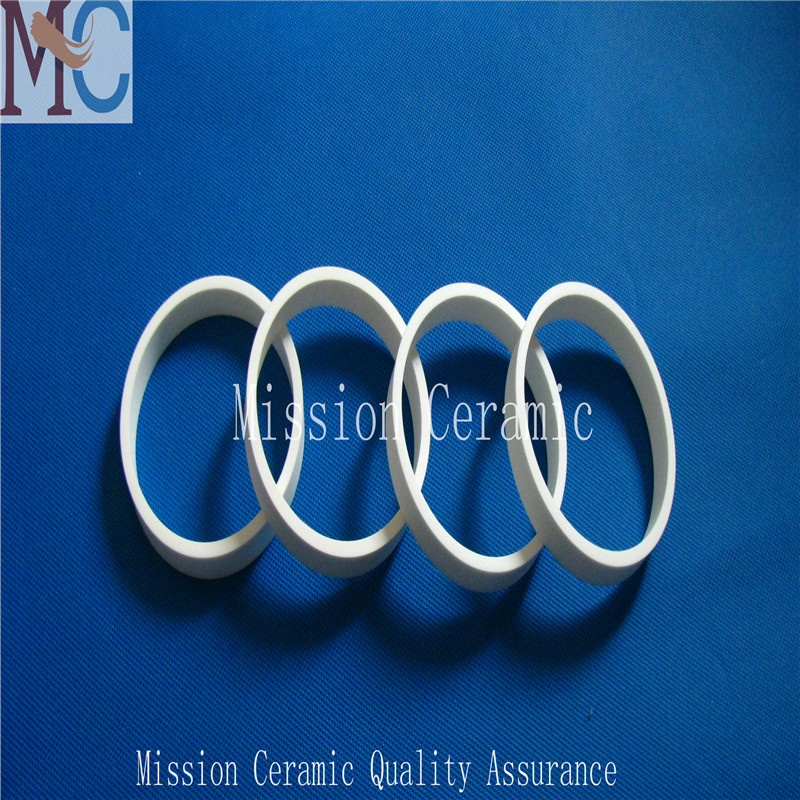

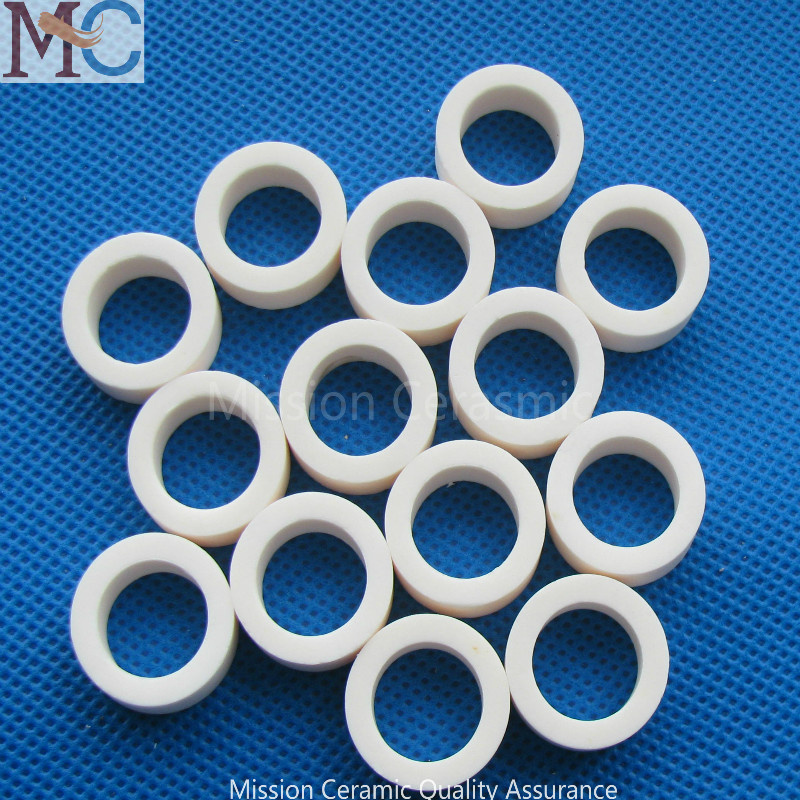

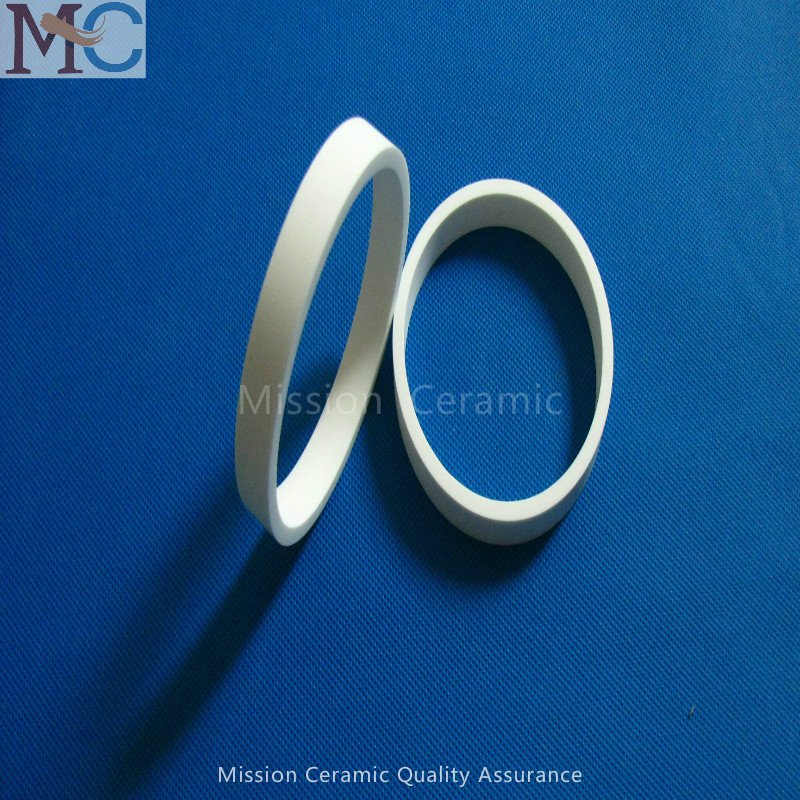

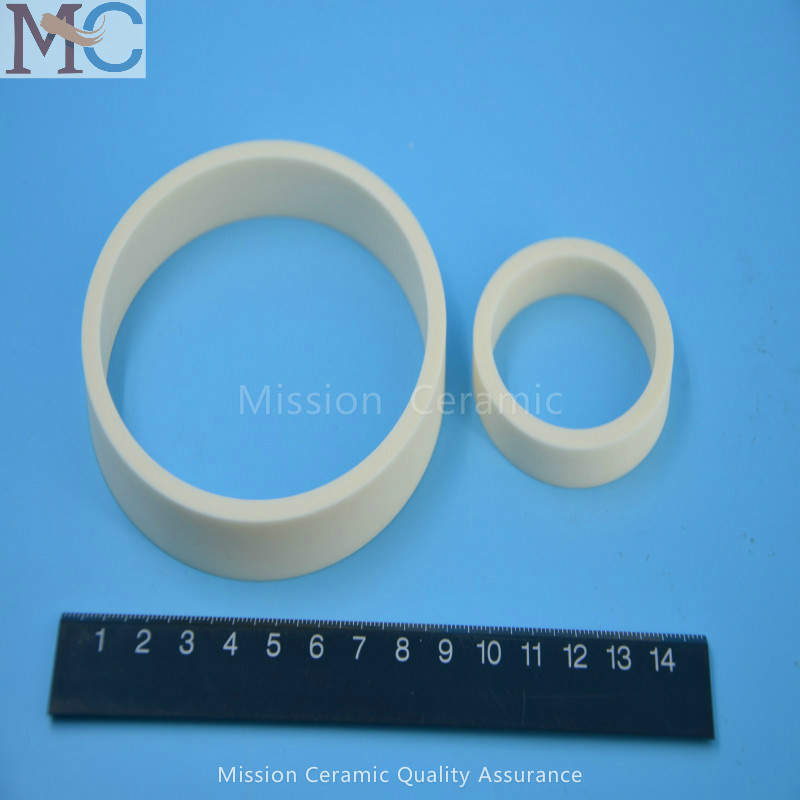

Alumina 2mm White Ceramic Ring1. High strength
2. High hardness
3. Good insulation
4. Heat resistance
5. Good Wear resistance
6. High chemical etching resistance.
Alumina Ceramic Ring is the best-known advanced ceramic material, is widely used in automotive, petro-chemical, fluid control,materialtransfer,Industry,electrical and electronic,semiconductor.Sapphire is single-crystal alumina.
Mission Ceramic is making high quality ceramic products.
Alumina ring is our main product. It's mainly made by 95% and 99.7% Al2O3. Density from 3.6g/cm3 to 3.9g/cm3 .
We have the ability to machine the alumina ring, Tolerance can reach to +/-0.02mm after machining. Surface roughness can reach to Ra0.2um. Holes and grooves can be machined as you need.
Very big sized and small sized rings can be made according to your need.
Warranty:
If any broken during shipment, we will send replacement for free or send back your payment. (In case we arrange the shipping).
If tolerance is not same with what we discussed, we will send replacements.
Technical Data| Al2O3 Purity (%) | Density
(g/cm3) | Bending Strength
(Mpa) | Expansion
(X10-6/ºC)
(25-800ºC) | Thermal Conductivity
(W/(m.R)) | Dielectric Strength
(kv/mm) | Max Working Temperature (ºC) | Water Absorption
(%) |
| 95 | 3.60 | 364 | 7.6 | 20 | 11 | 1500 | <0.2 |
| 99.7 | 3.90 | 450 | 8.0 | 35 | 12 | 1800 | <0.1 |
1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all Pump electric products, electric heating products and wear resistant machinery parts.
Detailed Images
Packaging: 1. Clean plates by washing. 2. Warped with bubble plastic paper. 3. Put in wood box padded with foam board. 4. Sealed the box with screws which is easy to be opened. 5. Fragile warning stick. Shipping Method: By sea, by Air, by express way.
Our CompanyOur company has been working in ceramic industry for years. Thanks to our diligent employee and excellent customers,our enterprise is growing fast. It's our mission to provide high quality products and good service.Mission is professional in production and design of industrial ceramic .Our main material is alumina; zirconia,silicon carbide and boron nitride are available.
Zhengzhou Mission Cermaic Products Co., Ltd12th Floor, Shenglong Building B, Science Avenue.High-Tech Zone, Zhengzhou, Henan, ChinaTel: 86-371-56689683Fax: 86-371-61176723Web site: www.mscera.com
Zhengzhou Mission Ceramic Products Co., Ltd. Locates in Zhenzhou City, Henan Province, central part of China. We have been working in advanced ceramic and thermal industry since 2013.
Our products has been exported to more than 40 countries like USA, UK, Russia, France, Australia Korea etc. We win good reputation from customers because of good quality and service.
Our main products as bellow.
1. Alumina ceramic products, including tubes, rods, crucibles, plates, and other part made by your
Design.
2. Zirconia Ceramic products, including tubes, crucibles, plates and other parts as you need.
3. Silicon carbide ceramic products, includng beams, plates, tubes, crucibles etc.
4. Boron nitride ceramic products, including plates, crucible, and other parts as you need.
5. Alumina ceramic fiber products, including fiber, board, and other parts as you need.
6. Heating elements, including MoSi2 heating element and MoSo2 heating element.
If you are intersted in any of our products, please contact with us. We will try our best to provide good products and sevice!
