Product Specifications
| Prod Model: |
HSGP-4KB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Focus Diameter: |
0.02mm |
| Max Engraving Speed: |
220,000 Points/Minute |
| Laser Head: |
One |
| Focal Length: |
160mm |
| Laser Power: |
3W |
| Pulse Width: |
7ns |
| Beam Quality: |
M2<1.5 |
| Max Engraving Scope: |
300*400*150mm |
| Resolution: |
800dpi |
Product Description

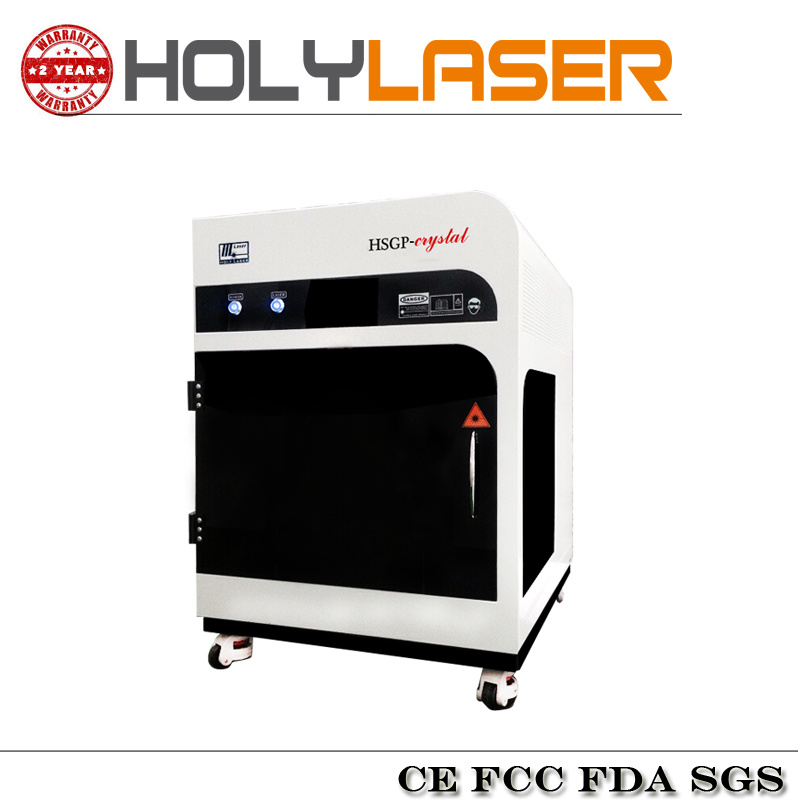

The economic 2d 3d crystal engraving machine, is a high resolution laser engraving machine, is really a fine processing machine with advantages of high fidelity and high stablity, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc. For laser crystal engraving.

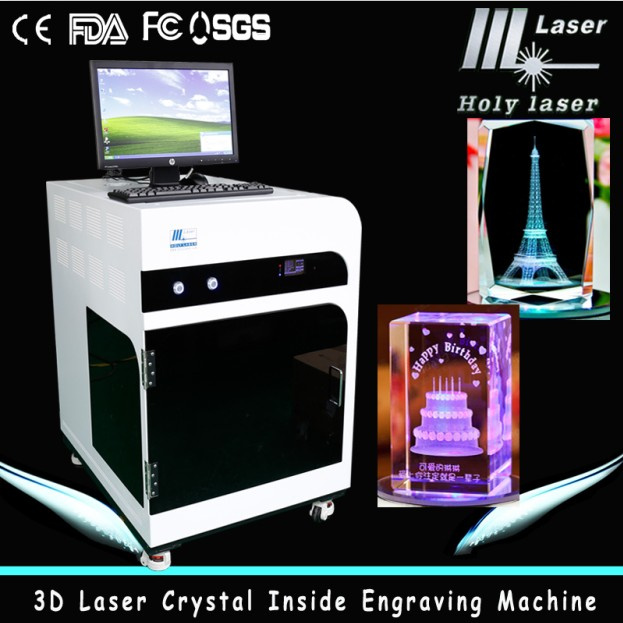

Description for economic 3D laser crystal engraving machine:
Our 3D laser engraving machine adopts industrial design, which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that' s elaboration for your home decoration
CERTIFICATES:
CE, FCC, FDA, SGS
AFTERSALE SERVICE:
1. One year guarantee period for product quality. (man made damaged is negotiable).
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
5. Free samples marking of customer provided.
ADVANTAGES:
1. CE, FCC, FDA approved,
2. This machine can engraving both 2D nad 3D, (depends on your design).
3. Our machine good for quantity production.
4. With newest laser, high speed.
5, Our machine also good for big size engraving as big as 300*400*150mm (also very suitable for family, friends...Etc)
WARMLY WELCOME YOU VISIT OUR FACTORY! ! !
LOOKING FOR AGENTS ALL OVER THE WORLD! ! !
Model |
HSGP-4KB |
laser / laser wavelength |
semiconductor diode/ 532nm |
laser repetition frequency |
4000hz |
marking speed |
220, 000dots/min. |
max. marking scope |
300*400*130mm |
focus diameter/resolution |
0.02nm/ 800DPI |
working |
with high speed scanner+X+Y+Z (5 axis) |
positioning accuracy |
10μ m |
continuous working time |
24 hours |
coolinf/quality warranty |
air colling |
lifetime |
more than 20, 000hours |
gross power/noise |
1.5KW/ 50db |
power requirement |
single phase 220V or 110 V (+/- 10%), 50Hz or 60 Hz |
software |
self reseach software for 3D, 2Ddots cloud, and for control machine |
suitable materials |
Crystal, glass, hard plastic, acrylic, metal, etc. |
working environment |
temperature10-28° C, humidity |
Operation system |
Windows XP, Windows 7 |
Software language |
Chinese, English, Portugal, etc. |
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
