Product Specifications
| Prod Model: |
C-N24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mode: |
Electric |
| Color: |
Grey-White |
| Material: |
Silver |
| Degree Of Automatic: |
Automatic |
| Coating Width: |
650mm |
| Coating Thickness: |
0.2-2mm |
| Coating Speed: |
0-20m/Min |
| Power: |
4.6kw |
| Machine Size: |
87*134.5*118cm |
| Machine Weight: |
330kgs |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Packaging Material: |
Wood |
| Type: |
Roll Coater |
| Application: |
Electronics |
| Packaging Type: |
Case |
Product Description

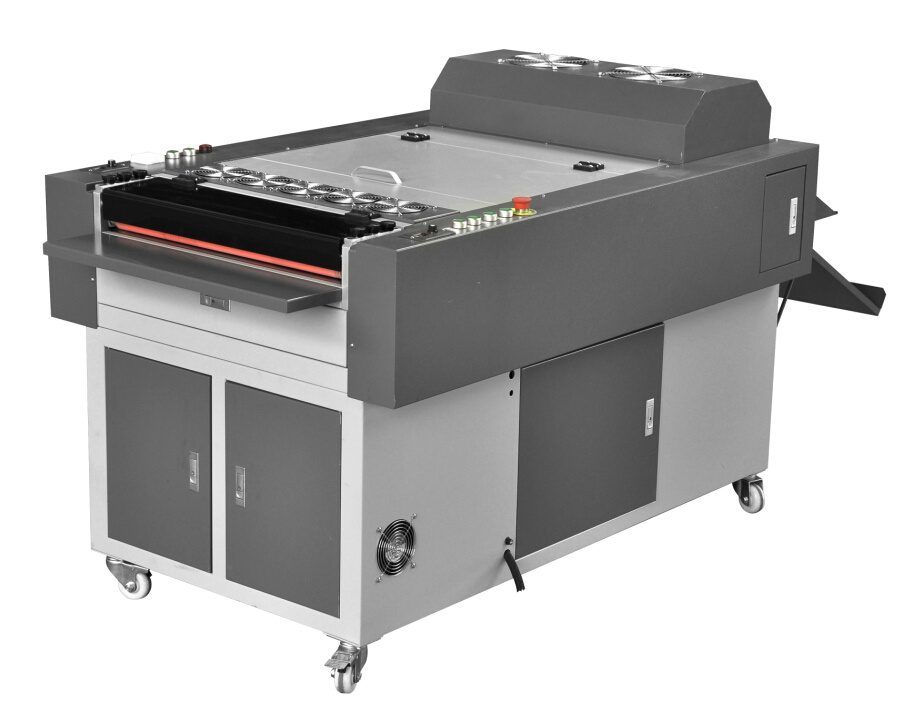

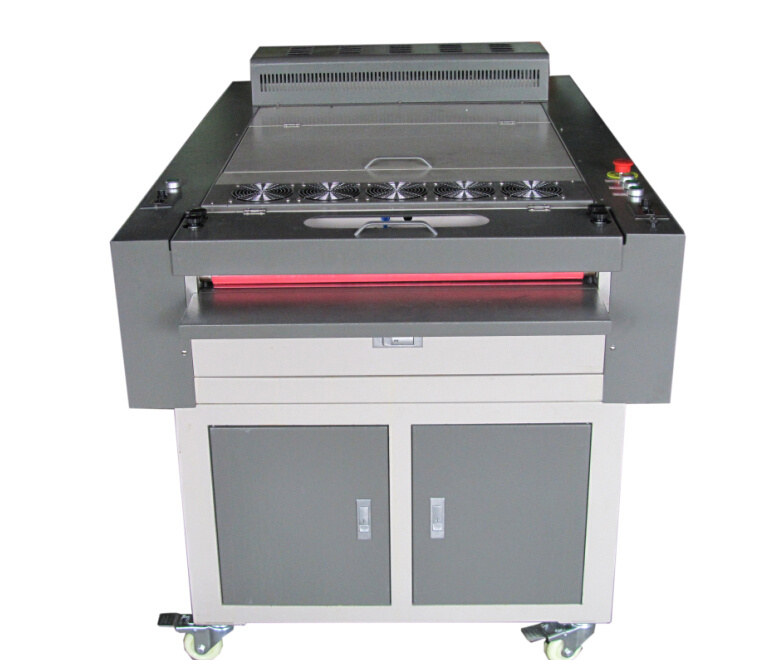

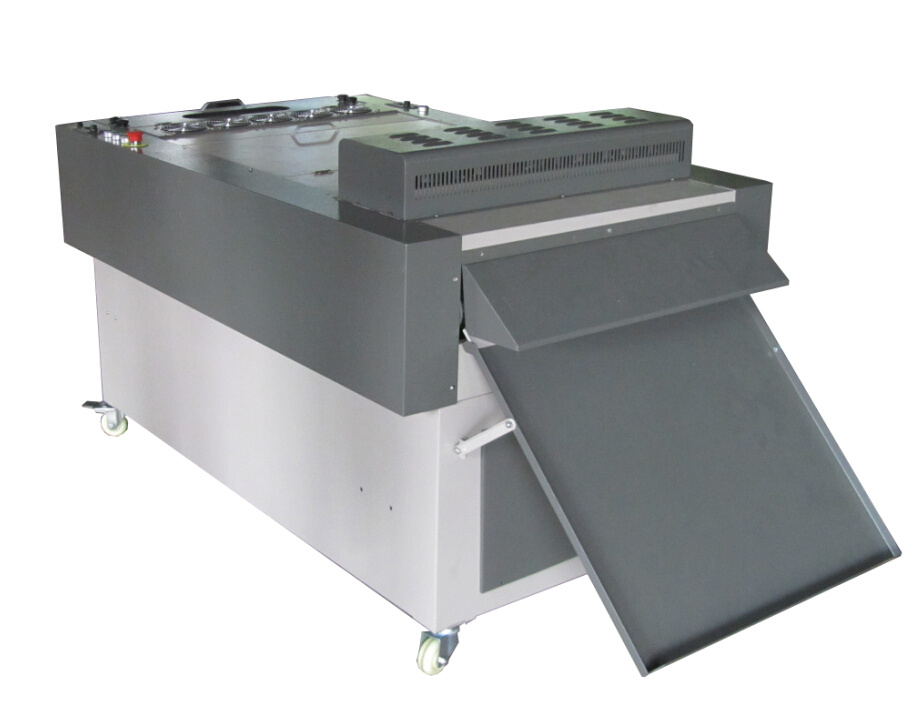

Newest Automatic Crystal UV coating machine C-N24
Introduction:
Newest crystal uv coating
innovation, change the history of traditional glossy laminating
with weakness of fine line,bubbles and uneven
Replace of the traditional crystal film and reduce the cost than using film
Widely usage range
Special material made double rolling worm design, use isolated sealed ultraviolet light fast dry, very safety. The thickness of the pictures is adjustable, very suitable for Album, Advertising, handcraft paintings, prints etc.
PS: Assemble infrared ray device is optional.
Feature1) achieving a smooth,bright and crystal's effect
2) the maximum speed can reach to 15m/min
3) to break the traditional lamination of a long leveling time.slow flat bright effect.
it's the effect and quality which have been pursued and worshiped of the industry's professionals
4) to change the traditional glossy lamination with weakness of fine lines,bubbles and uneven lamination,instead of the traditional lamination largely,
it's a surpassing reformation and innovation of coating machine ,
5) save cost for liquid. . Completely replace the traditional crystal film effects ,
Product parameters:
Coating width: 650mmCoating thickness: 0.2~2mmCoating speed: 0~20m/min
Drying way: Ultraviolet rays/ultrared rays
Operation way: electric
Voltage: AC220V/50Hz
Power: 4.6KW
N. W/G. W: 330kg/368kg
Machine size: 87*134.5*118cm
Packing size: 1213*155*6.1cm=2.1
Package: Wooden case
Origin: Hangzhou China
DETAILS
View:
We also supply comb binding machine, wire binding machine, spiral binding machine, perfect binding machine, punching machine and creasing machine, laminator, paper punching machine, binding accessories...
Innovation Design Value Custom made Quality
Hangzhou Supu Business Machine Co., Ltd. is a professional manufacturer and export of binding machines in China. We produce a wide range equipment after printing, including comb binding machine, wire binding machine, coil binding machine, spiral binding machine, paper punching machine, heavy-duty punching machines, creasing machine and laminator. Our products are made to the very high quality standard and we endeavor to develop and improve our products through constant innovation programs and design intiatives. We have more than 40 patents include 2 international invention patent. We have been accredited with the ISO 9001-2000, CE and cETL, SAA, CB certificates.
We have been exporting our products to the States, South Amrica, Europe, Korea, Turkey, Malaysia, Australia, India and so on, and they all believe in our SUPU, which stands for quality, design, practicality, durablity and value.
SUPU is now the market leader with a broad portfolio of high quality products and SPPU is your assurance of innovation, quality, design &Value.
