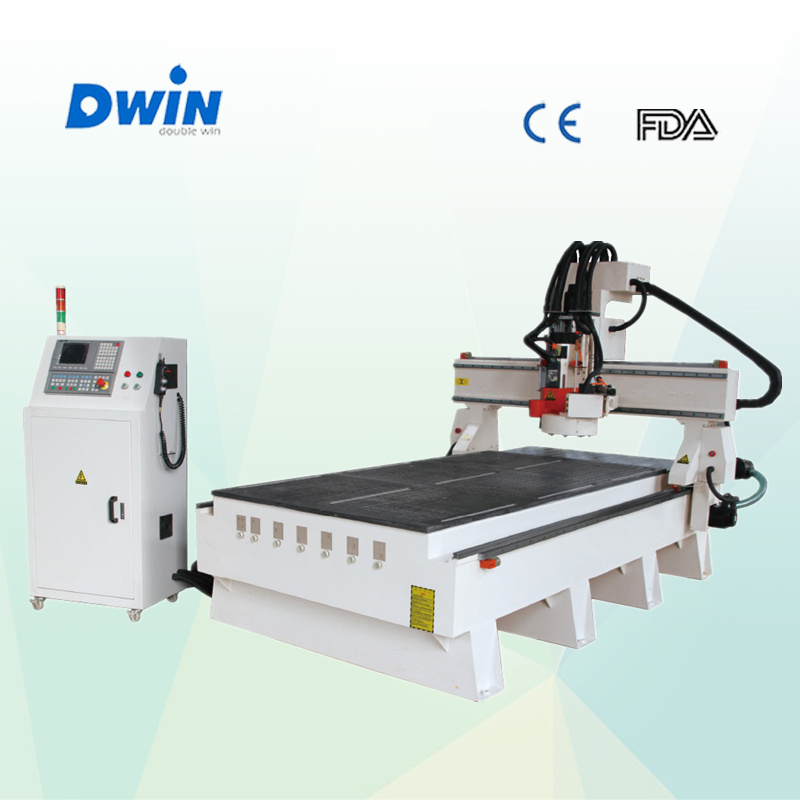

2030 Woodworking CNC Router Wood Machine with Auto Tool Changer

Product Specifications

Prod Model:	DW2030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Atc CNC Router
Working Area:	1500X3000mm
Control System:	Nc Studio/ DSP
Spindle:	9kw
Motor:	Yaskawa Servo Motor Anbd Driver
Rail:	Hiwin Square Rail
Table:	Vacuum Table
Tramnission:	Ball Screw
Warranty:	18 Months
Knifes:	8 PC Knifes
Spindle Layout:	Vertical
Spindle Number:	Single-Spindle
Feed Mode:	Manual
Controlling Mode:	CNC
Certification:	CE

Product Description

2030 Woodworking CNC Router Wood Machine with Auto Tool Changer
This machine adpot imported italy cnc spindle, has high precision, with auto tool changing system can be used for making all type of complex work, including engraving, carving, cutting, etc.

Its Machine Features :

1. This is an economic tool changer (ATC) CNC router; it can change 8 tools automatically.
2. This model chooses Italian 9KW HSD ATC air cooling spindle, Yaskawa servo system and Delta 11 KW inverter.
3. Siemens 808D control system to avoid the mistake of the software. It can protect the table and the machine. This is a simple auto-tool changer CNC router for wood working. It can save the time to change the tools.
5.Option Model :DW-1325ATC, DW-2030ATC


Technical Parameters:


working area	1300X2500X500mm
Max moving speed	40000mm/min
Max Engraving Speed	25000mm/min
Reposition Accuracy	<0.05/300mm
Spindle	9KW Italy HSD ATC spindle
Inverter	11kw Taiwan Delta inverter
Spindle rotation:	6000-24000rpm
Tool magazine and number of tools	Disc  ATC, 8 tools
Tool diameter	2mm-20mm
Transmission	X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw
X, Y, Z Rail	Taiwan HIWIN or PMI 25mm linear guide way
Beam	cast Steel
Frame	Tube structure
Table surface	vacuum & T-slot combined
Control System	Germany Siemens 808D Control System
Typeset software	Type3, Art CAM
Motor/ Driver	1kw Japan YASKAWA servo motor and driver
Voltage:	AC380V/50HZ

ATC CNC Router machine Features:
1, Welded structure by thick profiled steel
2, Assembled with precise parts.
3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the side of working   pieces. Vacuum working table is with double cavities and bakelite material  with high absorption power.
4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.
5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.

Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object



After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any questions.
6, We can record videos of operating the cnc router
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
