Product Specifications
| Prod Model: |
SP153-A |
| Brand: |
Autel |
| Model: |
Maxivideo Mv208 5.5mm |
| Language: |
English |
| Material: |
Plastic |
| Warranty: |
One-Year Limited Warranty |
| Special Features: |
Diagnostic |
| Certification: |
CE |
| Update Method: |
by Internet |
| Testing Equipment Type: |
Diagnostic Tool |
Product Description

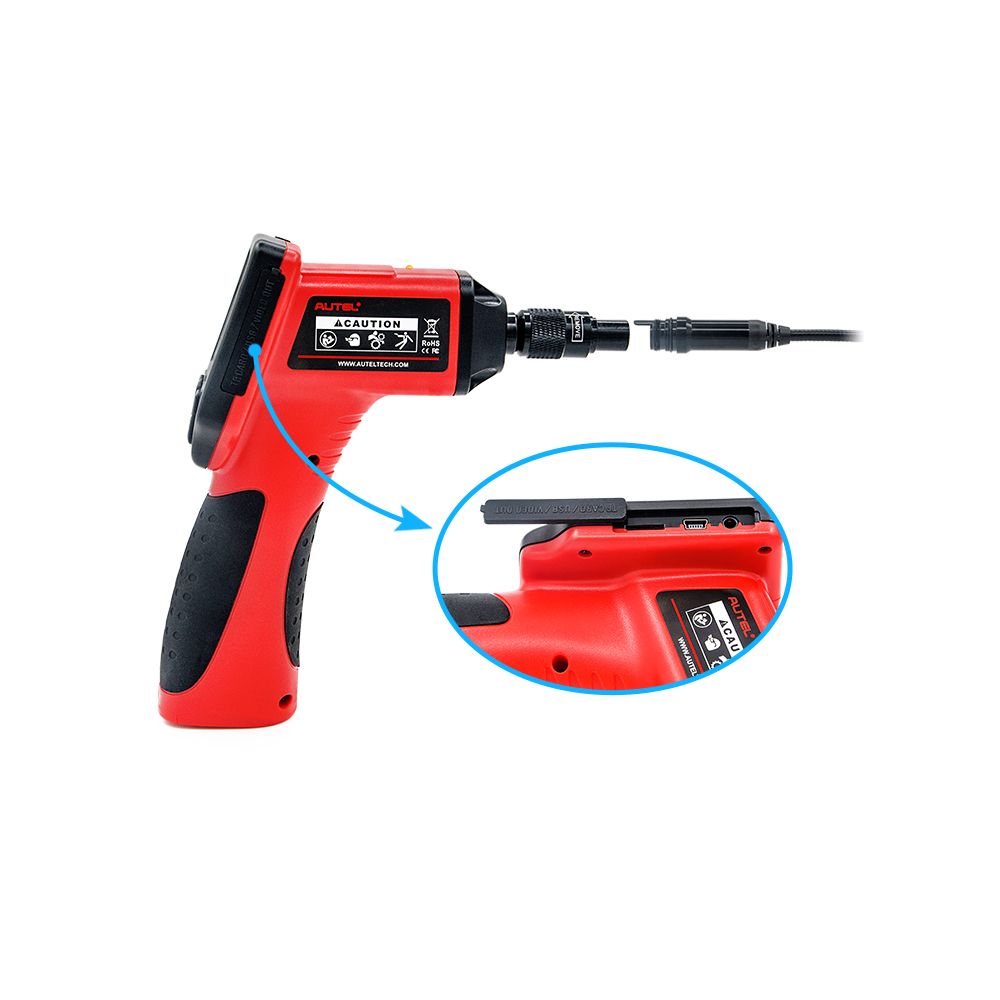

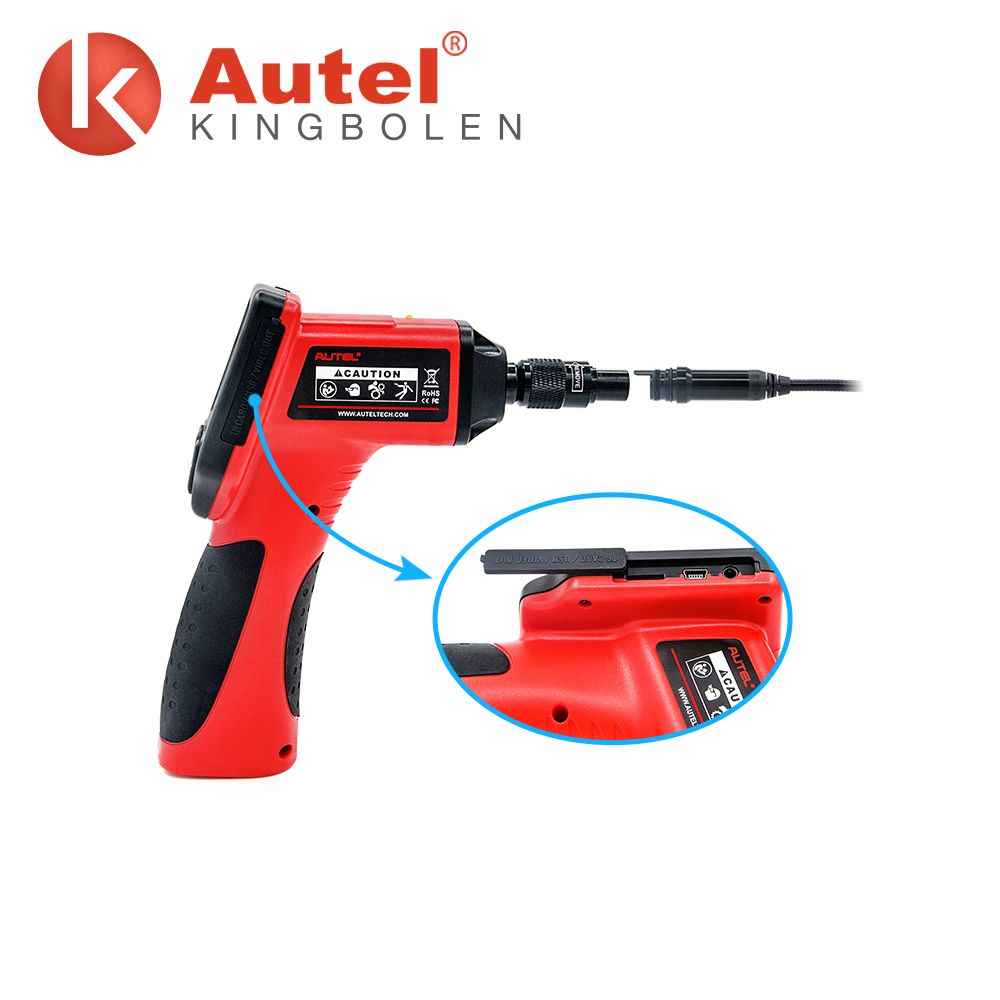

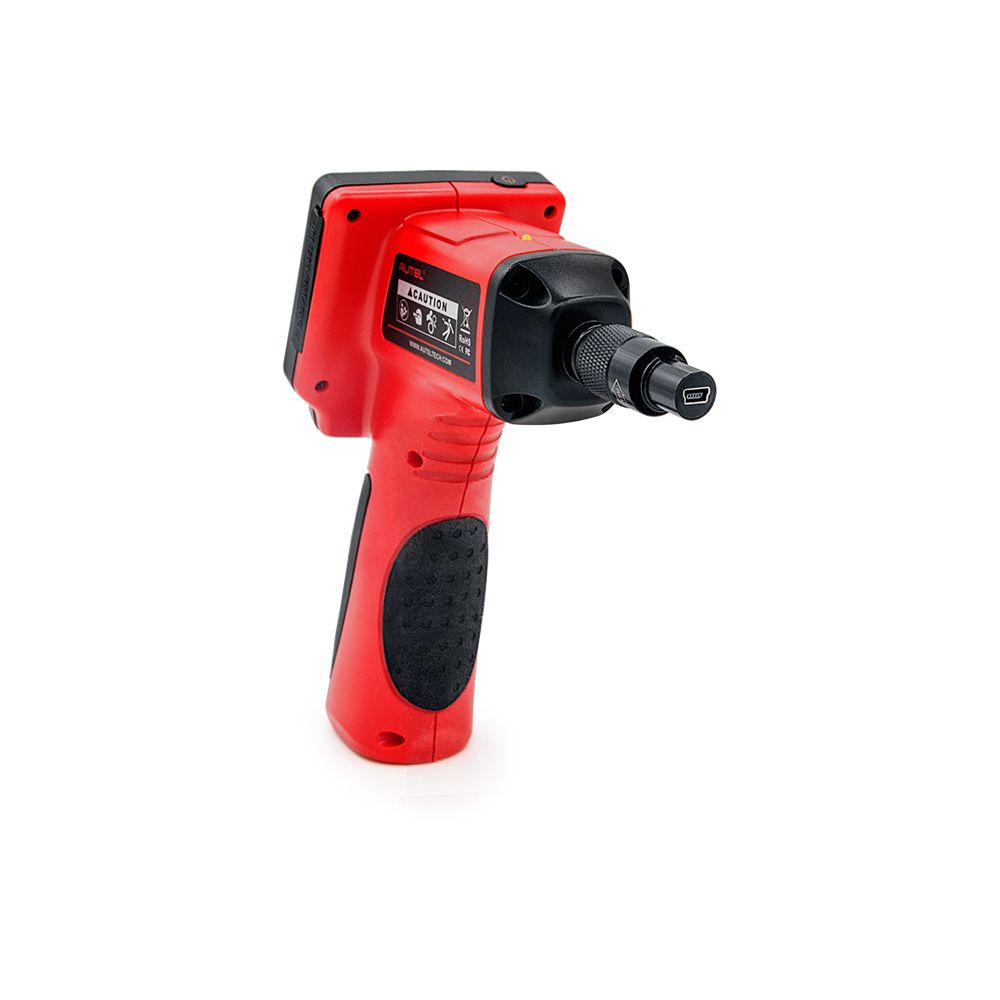

Autel MaxiVideo MV208 with 5.5mm Diameter Imager Head Inspection Camera Digital Videoscope
Autel MaxiVideo MV208 not only features a 2.4" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.
Five Reason To Get Autel MaxiVideo MV208:
1. Easy-to-use, multi-language interface
2. Ergonomic and durable tool housing
3. One-year limited warranty
4. Mini USB connector for uploading images and videos to a computer
5. With optional removable Micro SD cards, saves images and videos to take with anywhere
Autel MaxiVideo MV208 Features & Functions:

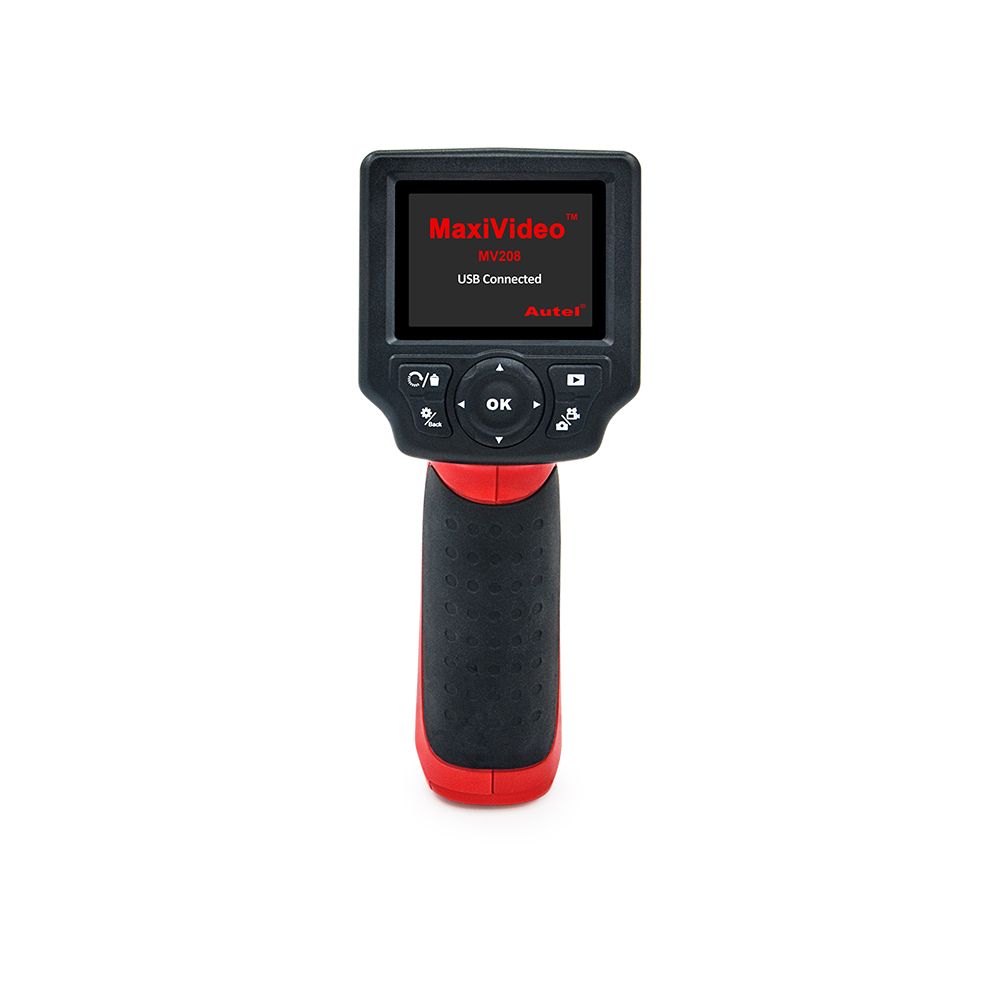

1. 2.4 " high resolution full color LCD display (320x240)
2. Records and plays back still images and video clips
3. Wide camera angle for images with 640x480 resolution
4. On-screen horizontal/vertical reverse
5. 5x digital zoom for increased viewing
6. Narrow probe diameter available in 8.5mm and fits most spark plug holes
7. White LED to illuminate the inspection area, with illumination control
8. Views objects as close as 1"
9. Oil and scratch resistant tempered glass lens
10.1M (39.4") semi-rigid, but flexible watertight shaft
Autel MaxiVideo MV208 Specification:
Recommended use: Indoor
Optimal viewing Distance: 3/8" to 12" (0.95cm to 30cm) with 8.5mm diameter imager head
Image capture: JPG images (640x480); AVI videos (320 x 240)
Screen type display: 2.4" TFT LCD
Display resolution: 320 x 240
Tested battery life: 3-4 hours of continuous use
Dimensions: 184 x 162.5 x 78mm (7.24" x 6.39" x 3.07")
Recording medium: Micro SD card (Micro SD card is optional and not included)
Imager head: 8.5mm
Waterproof: Imager head and cable to 3m (10')
Additonal ports: USB, video out (TV-out) port
Operating temp.: Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp.: -4°F to 158°F (-20°C to 70°C)
Video output: Video output
TV out: NTSC, PAL
Autel MaxiVideo MV208 Package List:

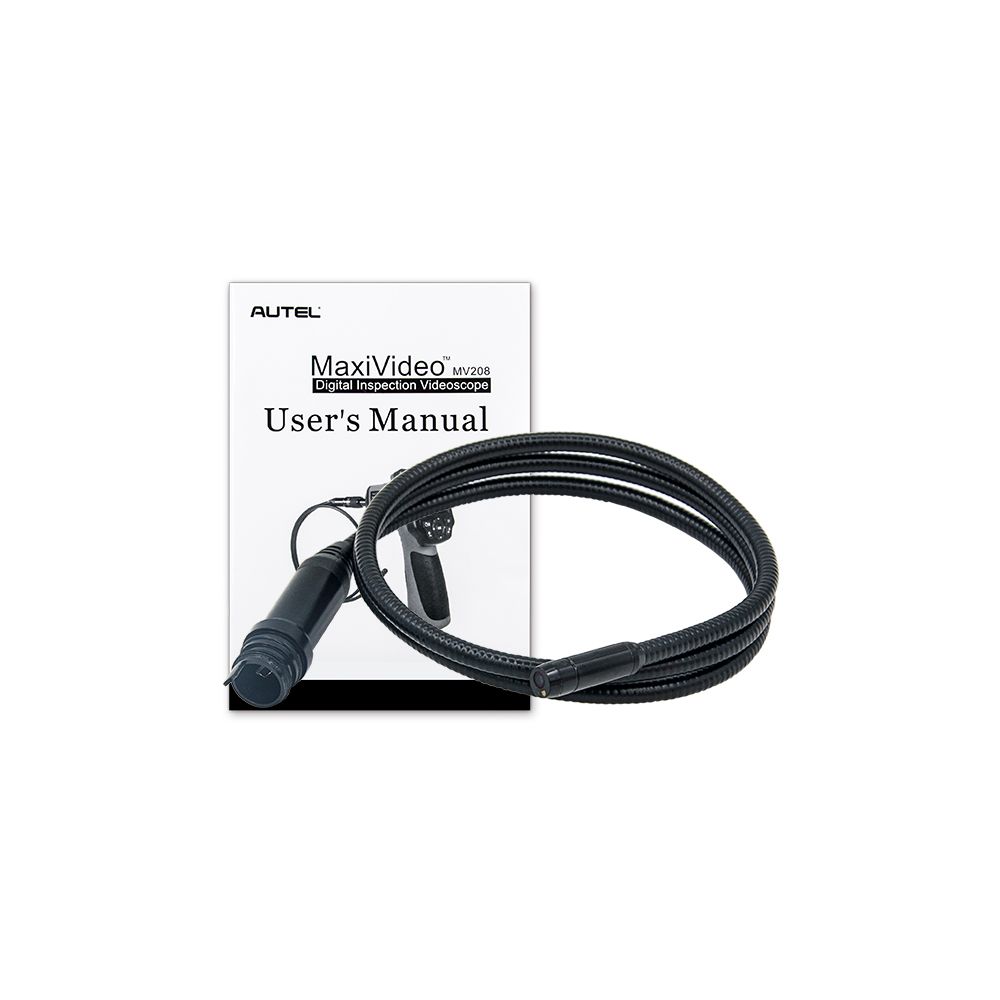

1pc x Imager head and cable(8.5mm)
1pc x Imager head and cable

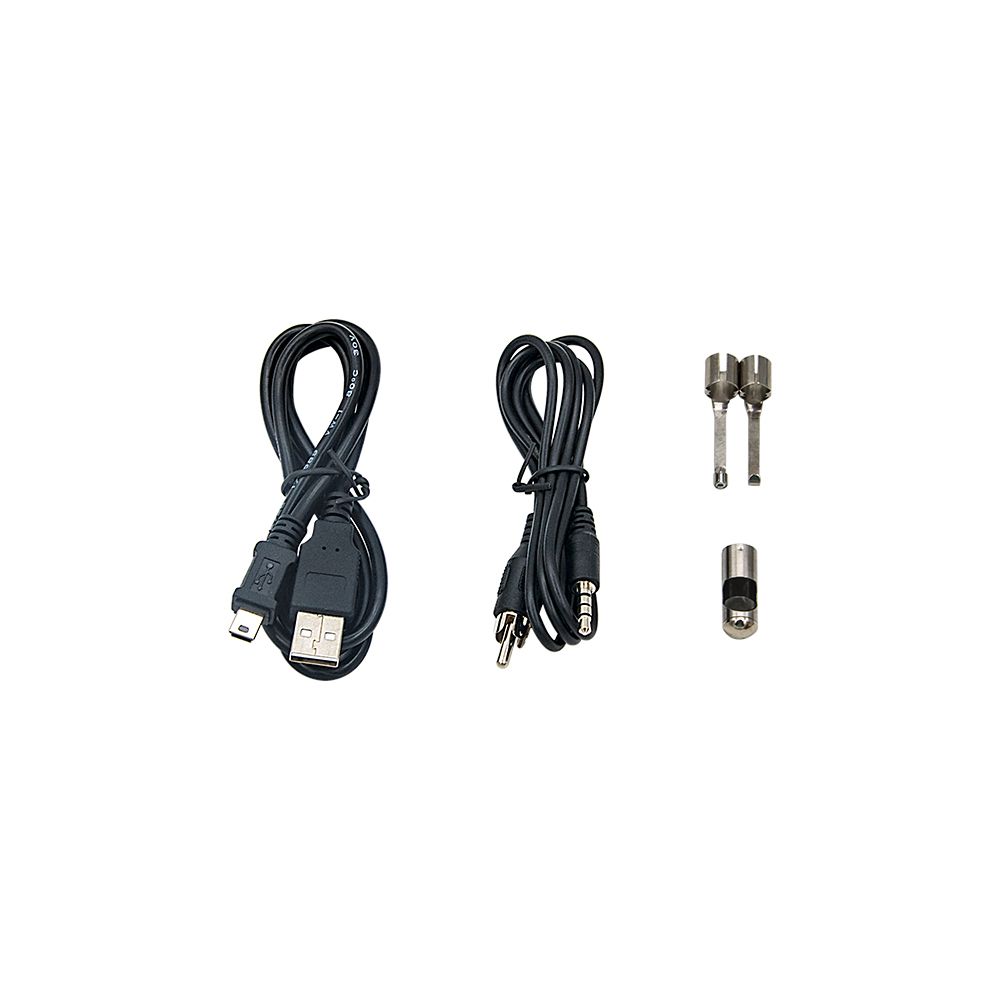

1pc x USB Cable
1pc x Video out-cable(TV-out cable)
1pc x User's manual

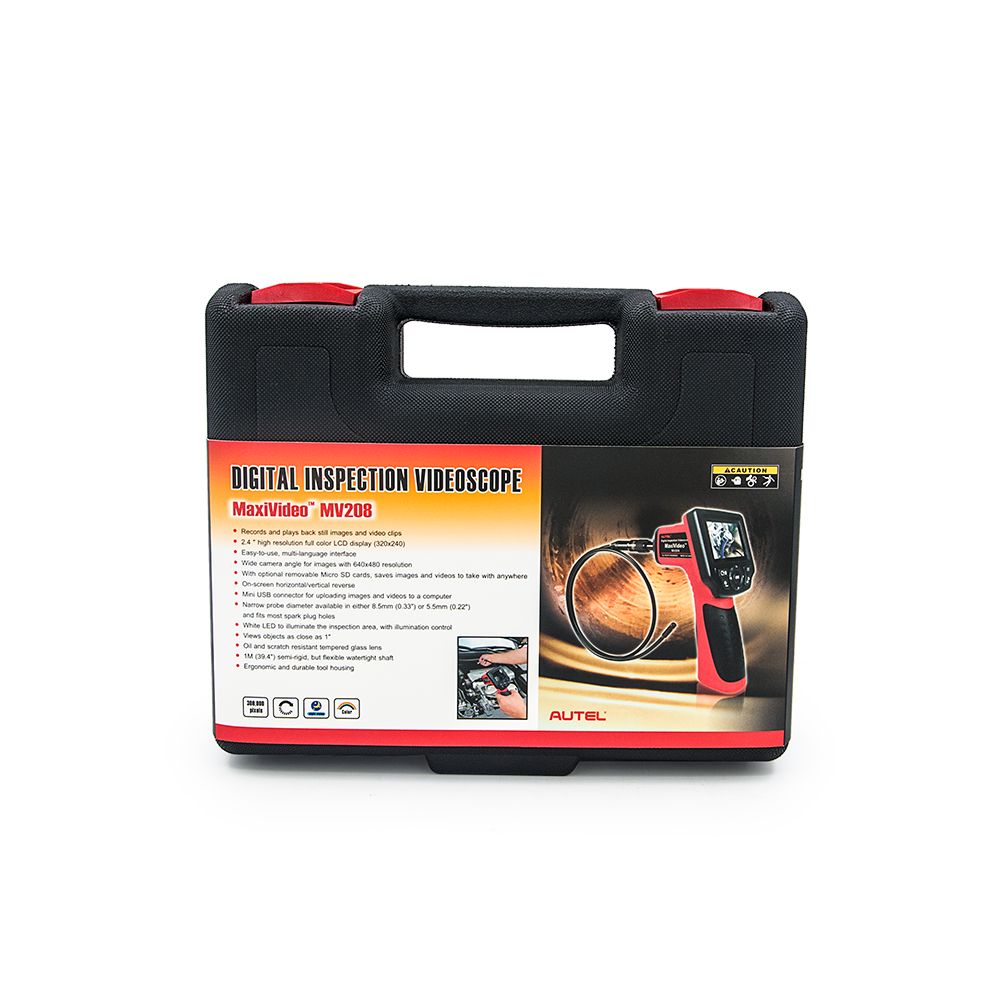

1pc x Blow Molded case
