Price: | US $ 9999-23999/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,Western Union |
Prod Model: | HSGP-3KC |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: | Laser Engraving Machine |
Control: | Automatic |
Current: | AC |
Laser Type: | Diode |
Usage: | Crystal, Glass, Acrylic |
Maximum Pulse Speed Points: | 200,000dots/Min |
Device Input Power: | AC220V / 110V ± 10% 50-60Hz |
Coolingt: | Air Cooling |
Laser Frequency: | 3,000Hz |
Maximum Engraving Scope: | 300*400*130mm |
Video Link(3D Laser Machine) | https://youtu.be/eN5HiGDSooQ |
Video Link(3D Camera) | https://youtu.be/M2_1r68tEXM |
Model | HSGP-5K | HSGP-4KBH | HSGP-4KBL | HSGP-3KC | HSGP-3KL2/3KL3 | |
Max.Working Area | 320*400*150 MM | 300*400*130 MM | 300*400*130 MM | 300*400*130 MM | 130*110*120MM/ 140*110*130MM | |
Average Working speed | 300,000 dots/min | 240,000 dots/min | 240,000 dots/min | 200,000 dots/min | 180,000 dots/min | |
Dia. for dots | 40-80um | |||||
Mass production | Mass production is suitable | |||||
Laser medium | Laser Diode | |||||
Laser wavelength | 532NM | |||||
Cooling | By Air | |||||
Temperature | 15-30ºC | |||||
Power supply | AC220V or AC110V+/-10% | |||||
Power consumed | ≤1500W |
Main Features:

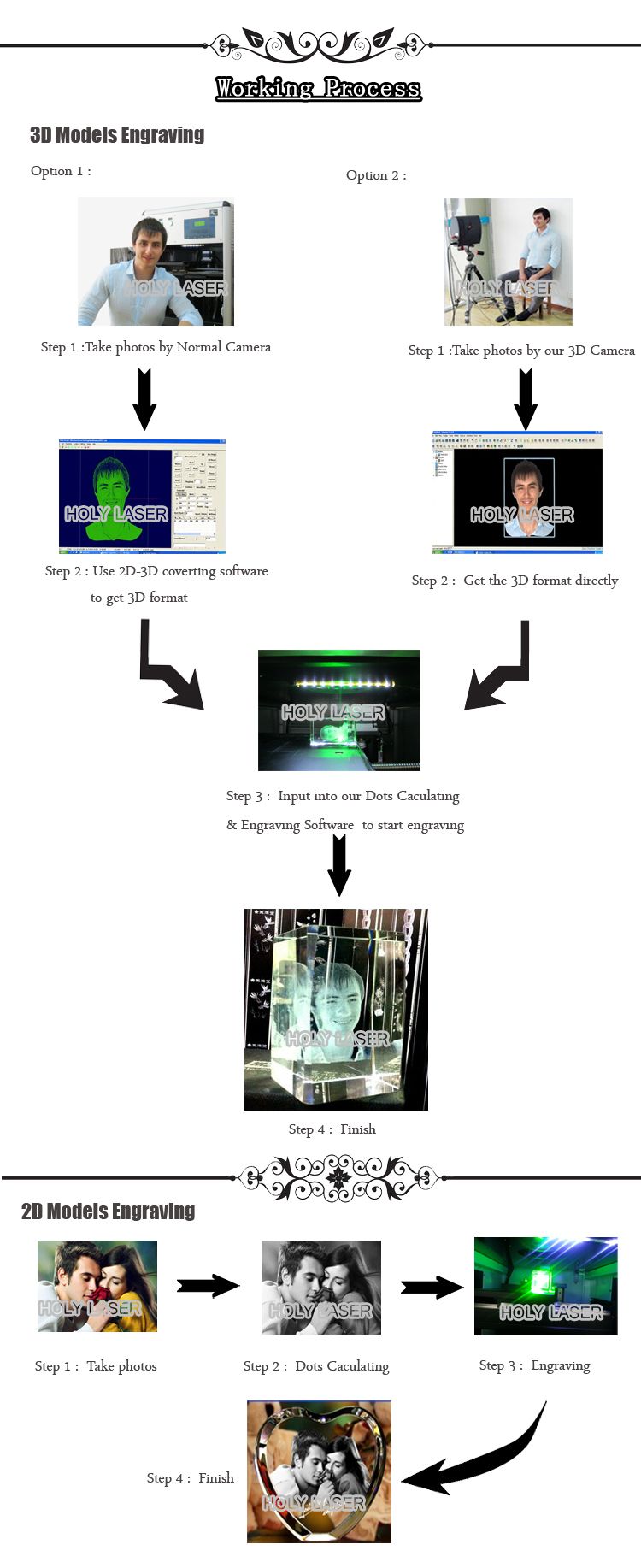

1.This machine can engrave on both 2D and 3D, (depends on your design).
2.Fast speed: only about 2 minutes can engrave a 50*50*80mm size crystal.
3.Good quality guaranty: Laser source imported from Germany,
Laser control switch imported from England,
Laser transport cable wire imported from France.
4. Strong team: Even our Engineers can speak English, strong support for service and training to customers.
5. Free maintenance.
6. High stability Carving effect delicate:using advanced semiconductor side pumped solid state laser technology.
7. Adopt sealed integration design to make sure good beam quality, high stability; fine engraving effect, equipment is good stability, low maintenance.
8. Environmental protection, Low noise: no compressor pumps and high power fan, no pollution.
9. 2 year guarantee for whole machine.

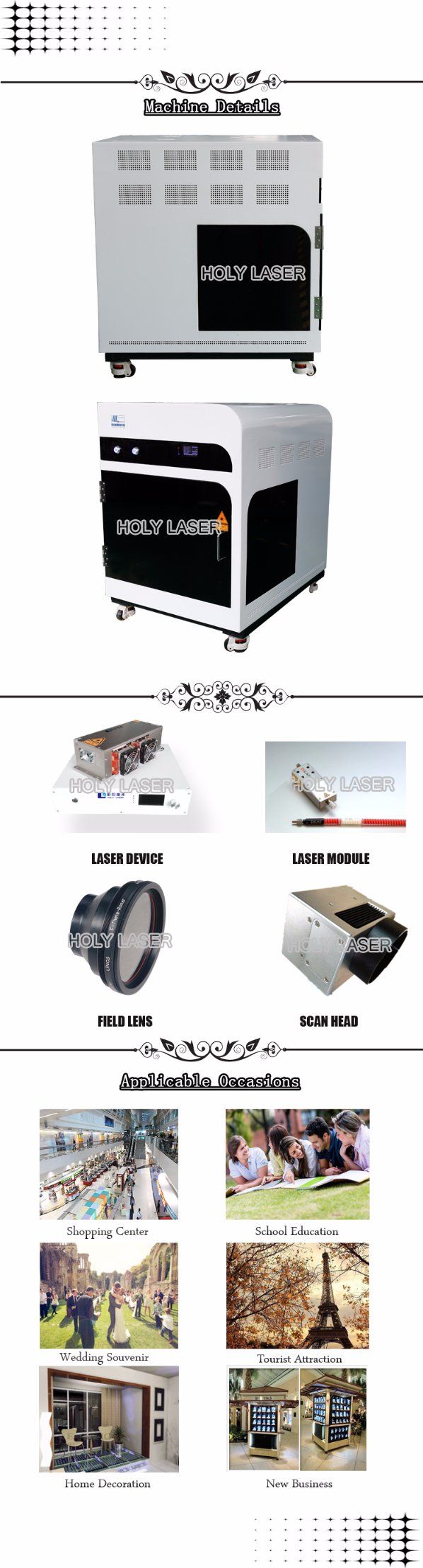

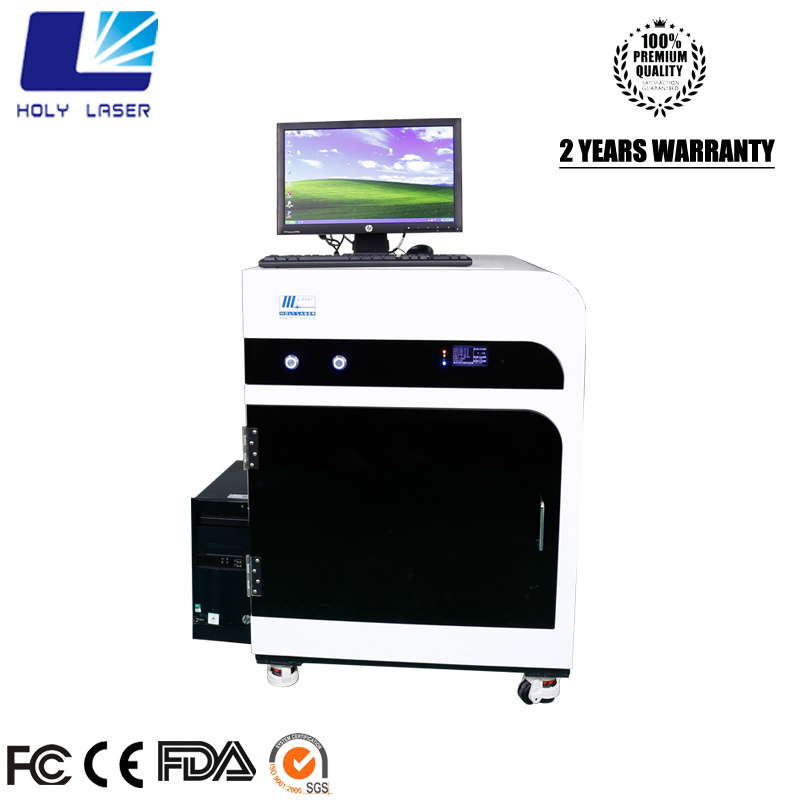

This 3D crystal laser engraving laser machine is a high resolution machine,also it is a great processing machine with advantages of high fidelity and high stability, which is definitely suitable for fine model engraving processing centers, gift shops, craft shops, photo printing shops, wedding photography, souvenirs, personalized gifts shops, etc.
2017 Economic Model 3D Crystal Laser Engraving Machine:
Our 3D crystal laser engraving machine adopts industrial design,which can engrave one big block of crystal or several small blocks at the same time. Its products can give person crystal-clear and fine noble visual image, that's elaboration for your home decoration.
