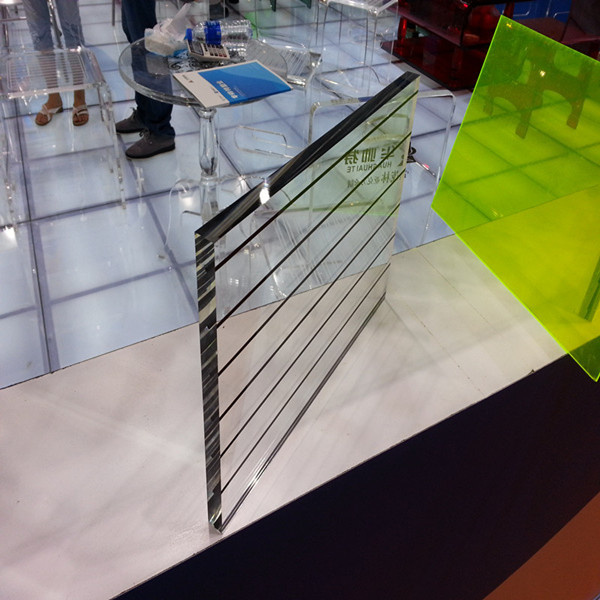

2016 Transparent Lined Acrylic Sound Barrier Panel 15-20mm
| Price: |
US $ 2550-2700/Ton |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Ton |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
HST Acrylic sheet |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
1mm-50mm |
| Size: |
1.22*2.44 1.83*2.44 2*2.5 1.5*3 2.05*3.05 |
| Density: |
1.2g/cm3 |
| Product Color: |
Red, Clear, Yellow, Black, Opal etc |
| Raw Material: |
Pure Raw Lucite |
| Package: |
Wood Pallet |
| Guarantee: |
10 Years Acrylic |
| Certification: |
ISO9001 SGS RoHS |
| Place Of Origin: |
Zhejiang China (Mainland) |
| Surface: |
High Surface Hardness & Glossy |
| Material: |
PMMA From Lucite |
| Color: |
All Color |
Product Description
Features1. Excellent transparency.
2. Good mechanical performance.
3. Good electrical insulation.
4. Stable and durable.
5. Non-toxic.
6. Superior impact resistance.
7. Crack resistance.
8. Superior weather resistance.
9. UV light resistance.
10. Chemical resistance.
11. Stable color under outdoor exposure.
Specifications
Thickness (mm) 2 ~ 300
Dimensions (mm)
Specifications of PMMA:
1)Thickness: 2-50mm.
2)Standard Size: 1220*1830mm, 1220*2440mm, 2000*2500mm, 1500*3000MM, 2050*3050mm.
3)Color: Clear, opal, black, yellow, blue etc. Applications1. Indoor decoration board, partition board in office and house.
2. Product design.
3. Engraving and signboard.
4. Making gift items.
5. Making kitchen and sanitary application.
6. Door and window cover. FAQ;1. What is pmma/acrylic? Pmma sheet is named acrylic sheet, plexiglass or Organic glass sheet. The Chemical name is Polymethy methacrylate. Acrylic holds the physical properties among plastics due to the excellent transparency which sparkling &transparent like crystal, it is praised as "Queen of Plastics" and is very delighted by the processors.
1. Does acrylic sheet will turn yellow in sunshine?
No, acrylic sheet from our factory should be made with UV. It can't to turn yellow in sunshine.
2. Warranty period for acrylic sheet?
We are committed to acrylic sheet five year warranty, not artificial not to damage.
3. Customers can personally inspect acrylic? | PROPERTIES | VALUE | Method
ASTM | VALUE | Method
DIN |
| Density (specific weight) | 1,19 g/cm 3 | D 792 | 1,19 g/cm 3 | 53479 |
| Modulus of elasticity | 32.000 Kg./cm 2 | D 790 | 3200 N/mm 2 | 53457 |
| Tensile Strenght | 740 kg/cm 2 | D 638 | 74 kg/cm 2 | 53455 |
| Flexural Strenght | 1200 kg/cm 2 | D 790 | 120 kg/cm 2 | 53452 |
| Elongation at break | 3,0 % | D 638 | 3,0 % | 53455 |
| Impact Strenght (Izod) | 2,0 kg/cm | D 256 | 2,0 kg/m 2 | 53453 |
| Impact Strenght (Charpy) | 25 kg/cm | D 256 | 27 kg/m 2 | 53453 |
| Rockwell Hardness | M 100 | D 785 | / | / |
| Ball Drop H98/30 | / | / | 200 N/mm 2 | 53453 |
Yes, we welcome customers visit our factory to check acrylic production. THERMAL PROPERTIES | PROPERTIES | VALUE | Method
ASTM | VALUE | Method
DIN |
| Coefficient of thermal conductivity | 5,0 10 -4 cal/cm s ° C | C 177 | 0,19 W/m°C | 52612 |
| Deflection temperat.- 1,8 N/mm 2 | 105 °C | D 648 | 105 °C | 53461 |
| Softenig Point (Vicat) | > 115 °C | D 1525 | > 115 °C | 53460 |
| Coef. Linear Thermal Expantion | 7,5 10 -5 1/°C | D 696 | 75 10 -4 1/°C | VDE0304/1 |
| Specific Heat | 0,35 cal/g°C | / | / | / |
ELECTRIC PROPERTIES | PROPERTIES | VALUE | Method
ASTM | VALUE | Method
DIN |
| Dielectric Strength | 20 kV/mm | D 149 | 20 kV/mm | 53461 |
| Volume Resistivity | 1 10 15 Ohm/cm | D 257 | / | / |
| Surface Resistivity | 1 10 14 Ohm | D 257 | 1 10 14 Ohm | 53482 |
| Transversal Resistivity | > 10 15 Ohm/cm | D 257 |
| Dielectric Constant (50 Hz) | 3,5 | D 150 | 3,5 | 53483 |
| Power Factor (50 Hz) | 0,05 | D 150 | 0,06 | 53483 |
|
|
|
|
|
|
|
OPTICAL PROPERTIES
| PROPERTIES | VALUE | Method
ASTM | VALUE | Method
DIN |
| Refractive Index n 20 D | 1,49 | D 542 | 1,49 | 53491 |
| Light Transmittance | 92% | D 1003/A | 92 % | 5036 |
| Turbidity (Haze) | 0,5% | D 1003/A | / | / |
CHEMICAL PROPERTIES
| PROPERTIES | VALUE | METHOD |
| Medium molecular weight | 800 - 1000 10 3 uma | viscous |
| Resistance to acids | good | / |
| Resistance to bases | good | / |
| Resistance to chlorous solvents ( methylene chloride, chloroform, trichloroethylene etc.) | low | / |
| Resistance to non chlorous solvents (acetone,alcohol, petrol, etc.) | medium | / |
REACTION TO FIRE
| PROPERTIES | VALUE | METHOD |
| Flame propagation | 22 - 28 mm/min. | ASTM D635/63 |
| Igniting T. | 280 - 300 °C | ASTM D 93 |
| Autoigniting T. | 425 °C | DIN 51794 |
| Calorific power | 6600 kcal/kg | / |
| Oxygen index | 18 | ASTM D28/63 |
| Flammability | class B2 | DIN 4102 |
| Smoke density (Flamming) | Dm 50 | NBS |
Established in 1998, Haiyan Huashuaite Plastics Electric Appliance Co., Ltd. is a leading Chinese producer of polycarbonate, PC sheet, PVC foam sheet and PVC profiles. All of our products are manufactured in line with ISO9001, ROTHS and SGS requirements and feature numerous advantages over traditional building materials including age resistance, impact resistance and durability.
Our company employs 250 staff members, including 58 technicians, and has always focused on the application of technology to improve product quality and development. Furthermore, we have 7 imported polycarbonate sheet production lines, 30 PVC profile extrusion lines from Germany and Italy. And 1 cast acrylic sheet line from England.
with quality viewed as the life of our enterprise, we utilize our team of quality inspectors and advanced apparatus to maintain the quality of our products throughout our entire production process. Moreover, our products are currently being used in major projects including Daqing Oil Fields and 2008 Beijing Olympic Games fields and gyms.
Haiyan Huashuaite Plastics Electric Appliances Co., Ltd. Continuously strives to enhance our good reputation whilst perfecting our products, management techniques, processes and level of customer service. If you are interested in any of our products, or are searching for a supplier to fill your OEM order, please contact us to discuss your requirements.
