Product Specifications
| Standard Size: |
2134X3300mm; 2134X3660mm; 1830X2440mm; etc |
| Application: |
Solar Panel, Crystal Light,Building,Furniture,etc |
| Certificate: |
Ce,Bsi,ISO,CCC,etc |
| Type: |
Float |
| Technique: |
Clear Glass |
| Experience: |
28 Years Experience on Glass Manufacturing and Exp |
| Shipping: |
Sea,Air, Express |
| Delivery Term: |
EXW, Fob, CIF. |
| Payment Term: |
T/T, Western Union,L/C,Paypal |
| Shape: |
Flat |
| Structure: |
Solid |
| Function: |
Heat Absorbing Glass |
| Surface State: |
Floats Law Glass |
| Grade: |
Grade One |
| Forming: |
Float Process |
| Workmanship: |
Molding machinery |
| Color: |
Clear |
| Usage: |
Window |
| Thickness: |
Thick Sheet Glass, 3-25mm |
Product Description

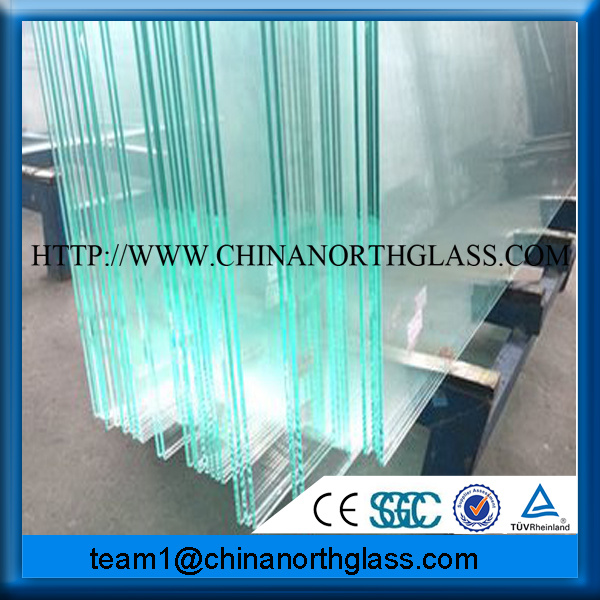

2016 Top sale low iron solar panel tempered glassSpecifications:
Thickness:1.1mm,2mm,3mm,4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Regular size: 194x610mm, 914x1220mm, 2440x1830mm, 3300x2140mm,
3300x2440mm, 3660x2140mm, 3660x2440mm
Natural lighting: The transmission of visual light is almost 90%
Complete range of size: The float glass can meet the requirement of large area lighting
Surface: Smooth and flat surface and good vision
Edge: Flat edge, grind edge, fine polished edge, beveled edge and others
Corner: Natural corner, grind corner, round corner with fine polished
Holes: Drill work available at customer's option
Low iron: Several options. PPG Stairphire low iron glass is also available.
1. Glass thickness: 3mm~19mm regular thickness: 3mm, 4mm, 6mm
2. Thickness tolerance: 0.2mm
3. Visible light (320~1100nm) transmittance (3.2mm thickness): over 91.6%
4. Iron content: below 150ppm
5. Poisson's ratio: 0.2
6. Density: 2.5g/cc
7. Young's elastic modulus: 73Gpa 8. Tensile modulus: 42Mpa
9. Hemisphaerium radiance: 0.84
10. Swelling coefficient: 9.03×10-6/°C
11. Softening Point: 720°C
12. Annealing Point: 50°C
13. Strain Point: 500°C
Quality Standard:
In accordance with GB11614; BS EN572-2European standard; ASTM C 1036 USA standard
Beijing Northglass Technologies Co. Ltd, a leader in glass industry, has been engaged in the research, development, processing glass since 1987. Produce range includes: Laminated safety glass, tempered safety glass, low e insulated glass, reflective glass, silk screen printed glass(ceramic frit glass, enamalled glass), tempered glass, curved tempered glass, hot curved glass, heat strenghened glass, fire proof glass, bullet proof glass, ultra clear glass(low iron glass), etc for curtain wall shower doors, windows, facades and furniture applications.
By far, we have asset USD50 million. Our head quarter is in HongKong, and our 3 fabrication companies are in China mainland having more than 1, 000 employees, of whom over 46% is specialized techical personel. Our company covers more than 390.000sqm. We have massive elites working at each process of working, among whom, professional technicians are over 26% and employees with Bachelor's degree are over 93%.
Our glass pass Australian CSI certificates, US IGCC SGCC certificates, European CE certificates and Chinese national certificates. Now we are working with customers in over 100 countries. To help customer to better achieve their success is our aim. Welcome you work with us, and establish long term cooperation!
