2015 Hot Sale High Quality Laser Clothing Cutting Machines
| Price: |
US $ 5100-5500/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
PEDK-130250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Area: |
1300*2500mm |
| Laser Power: |
60W / 80W / 100W / 120W / 150W |
| Engraving Speed: |
1-60000mm/Min |
| Cutting Speed: |
1-10000mm/Min |
| Repeat Location Accuracy: |
± 0.0125mm |
| Laser Power Controlling: |
1-100% Manual Adjustment a |
| Voltage: |
220V(±10%) 50Hz |
| Cooling Mode: |
Water Cooling and Protect System |
| Cutting Platform: |
Professional Thickening Strip or |
| Guarantee: |
12 Month Guarantee Period |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description
Applied Industries:
Perfect Laser - PEDK1325 Models laser wood cutting machine price with different working area/laser power, which can engrave/cut on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of nonmetal materials with complex shapes. Our Laser Engraving Machine is widely applicable for advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.
laser clothing cutting machines Product Features:
1. Adopts automatic stainless steel crawler platform & large scope, can meet the demand of large-format cutting, carving for clothing and other fields.
2. With advantages of small speed, higher precision can save time and greatly improve production efficiency combing with automatic feeding device.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9. Red Light Pointer realizes the exact position without laser.
10. Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

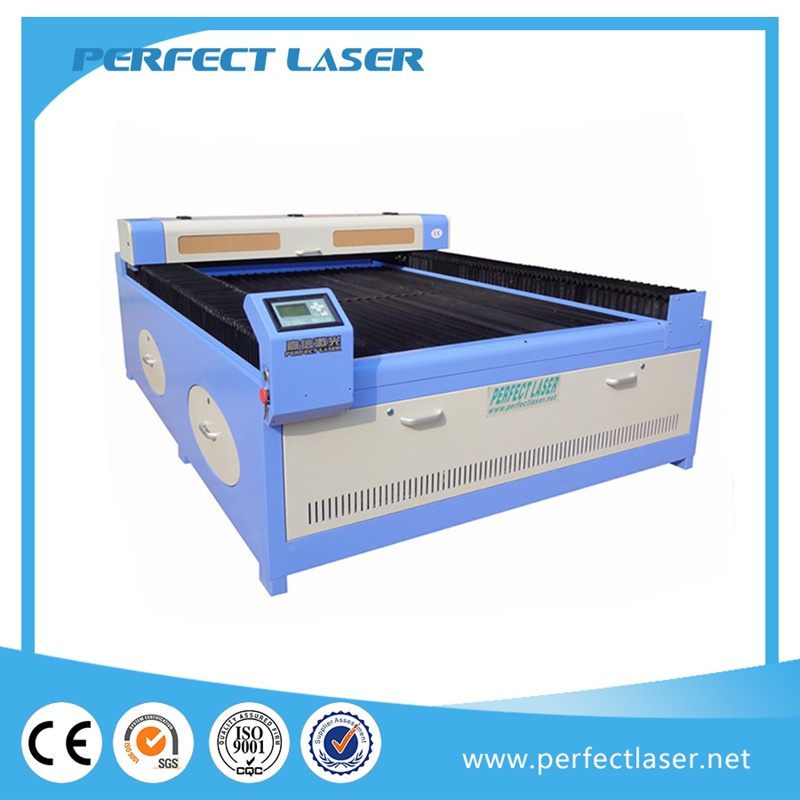

11. Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy. laser clothing cutting machines Photo:
About US ( PERFECT LASER ):
Our machine series:
CO2 Laser Engraving and Cutting Machine for all non-metal materials.
Laser Marking Machine including: fiber laser, diode pump laser, YAG laser, CO2 laser
CNC Router Engraving Machine for Advertising field, Woodworking, Stone/Mable engraving etc.
Metal Cutting Machine, Like cnc plasma / flame cutting machine(for thin metals), YAG metal laser cutting machine(can 7-8mm Mild Steel and 5-6mm Mild Steel ), Fiber metal laser cutting machine( can cut 8-12 mm Carbon Steel )
3D Crystal Engraving Machine
Laser Welding Machine for stainless steel, iorn, copper welding.
Inkjet Printer Machine on non-metal materials, like: style no, production date, serial no printing, eggs printing and so on.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact China Perfect Laser! - The exact material you want to cut? (Acrylic, Wood, Leather, Paper, , , , etc)
- The cutting depth on above materials? (Like, 3 mm, 5 mm, 7 mm, 15 mm...)T
- he working area you demand? (max dimension of material, width*length, 400*300mm, 1300*900 mm, 1300*2500mm...)
To benefit from our company, Get what you pay from us, Please feel free contact us now>>>>>>>>>>
Mobile: 86-136 5989 9108
| Model | PEDK-4030 | PEDK-6040 | PEDK-9060 | PEDK-13090 | PEDK-160100 | PEDK-130250 |
| PEDK-130180 | PEDK-160260 |
| Working Area | 400×300mm | 600×400mm | 900×600mm | 1300×900
mm | 1600×1000mm | 1300×2500mm |
| 1300×1800mm | 1600×2600mm |
| Laser Power | 40W / 50W | 50W / 60W | 60W / 80W | 60W / 80W / 100W / 120W / 150W |
| Laser Type | Hermetic and Detached Co2 Laser Tube |
| Engraving Speed | 1-60000mm/min |
| Cutting Speed | 1-10000mm/min |
| Repeat Location Accuracy | ± 0.0125mm |
| Laser Power Controlling | 1-100% Manual Adjustment and Software Controlling |
| Voltage | 220V(±10%) 50Hz |
| Cooling Mode | Water Cooling and Protect System |
| Cutting Platform | Professional Thickening Strip or Honeycomb Work Table |
| Controlling Mode | CNC Professional Control System |
| Support Graphics Formats | BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF
Compatible HPG Order To Support DXF, WMF, BMP, DXT |
| Power Controlling Mode | Laser Energy Combining Movement Control System |
| Control Software | Original Perfect Laser's Engraving & Cutting Software |
| Training | Video Training |
| Guarantee | 12 month Guarantee Period |
Perfect Laser (Wuhan) Co., Ltd. is a professional manufacturer of industrial laser equipment, located in China "Optics Valley" - Wuhan City. Since 1995, Perfect Laser focused on the development and production of various types of laser machinery and CNC equipment.
With over 20 years efforts and innovation. Our products have been exported to 180 different countries and regions. Our company has the European CE certificate, Germany TUV certificate, ISO9001: 2000 quality system certificate.
We are one of the most trustworthy company in central China among laser equipment manufacturers. Winning the honor of "Hi-tech Eenterprise" and "Famous Brand in Hubei Province", Perfect Laser willcontinue to embrace and create a better future with open mind.
Perfect Laser History
1995, Company established. Distribute large laser medical surgical instruments.
2003, Renamed as Wuhan Perfect Laser Co., Ltd. (China), set up business in the field of laser equipment manufacturing and sales.
2005, Set up Perfect Laser (Wuhan) Co., Ltd international group. Become an international group Co., Ltd, which concludes mass production, science and technology research and development, global sales and after sales service.
2008, Obtained the ISO 9001: 2000 Quality Management System Certification.
2009, Obtained "The Most Competitive Brand In China".
2010, Become the most popular laser equipment manufacturers and exporters of central China.
2011, Acquired The European Union CE certification, to prove stable reliability of products.
2012, Became the most reliable and trustworthy integrity manufacturing enterprises, products exported to more than 130 countries and regions.
2013, Become the excellent member of the "Hubei Association of E-commerce Association", make mutual progress with other members through exchange of learning.
2014, Get approval to apply for "High-tech Enterprise" and gained eight patents. Products exported to over 180 countries.
2015, Won the honor of "high-tech Enterprises". Become director member of " Hubei Association of E-commerce Association"
Why Choose Perfect Laser
Professional
We produce 20 series product ranges and 200 different models, including: Fiber Laser, YAG laser, CO2 Laser Engraver, YAG Metal Cutting Machine, Fiber metal cutter, Robot Metal Laser Cutting Machine, Fiber & YAG Laser Welder, as well as supplying laser components.
Reliable Quality
Approved by ISO9001 and European CE certified, have excellent quality and reliable quality. We have full experience in R&D, manufacturing, sales, exporting and after-sales services.
24 hours Technical Support
Perfect Laser offer you the overall pre-sales service, including free pre-sales consulting, free sample making, factory-visiting is available for you any time. We offer 24 hours after-sales service.
Any kind of technical support are available for users.
Flexible Payment
With products exported to over 180 countries and regions, we have adequate funds circulation, we accept flexible payment terms to reduce your financial pressure.
Customer-Oriented
Perfect Laser always hold the banner of matching the needs of users of services throughout the course of service. We committed to grow together with customers and partners.
