Product Specifications
| Material: |
Polycrystalline Silicon |
Product Description

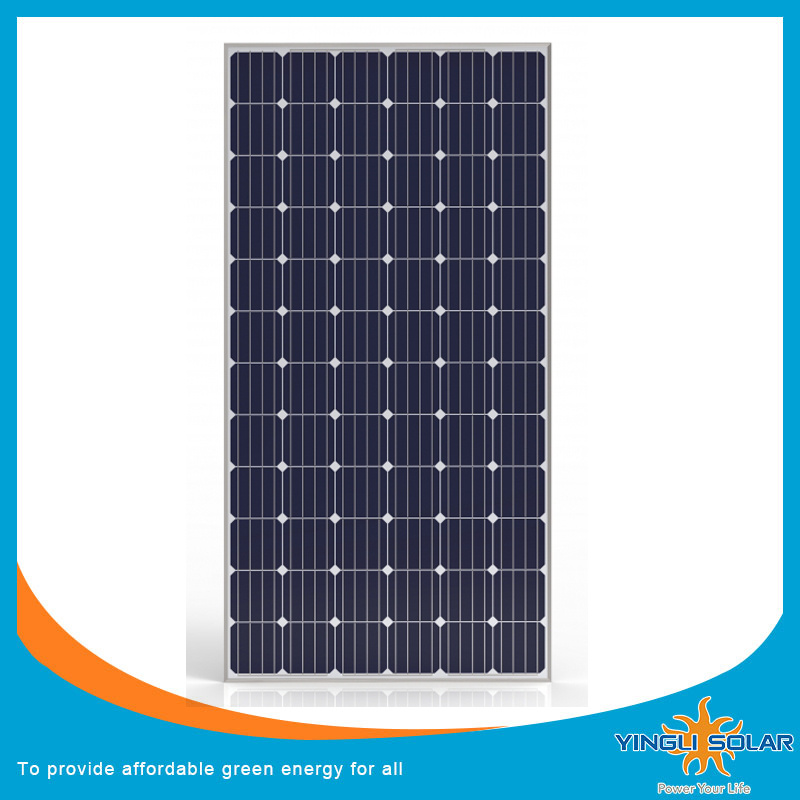

200Wp 36V Monocrystalline silicon,Monocrystalline Silicon Material crystal solar panel 1580*808*35MM
Yingli Green Energy (NYSE: YGE) is a leading solar energy company and one of the world's largest fully vertically integrated photovoltaic manufacturers.
We develop, manufacture, and sell high-quality modules under the brand Yingli Solar to a wide range of markets, including Germany, Spain, Italy, Greece, France, South Korea, China, and the United States.
More infomation about our solar panels, solar project and solar products, you could visit our websit
Electrical Characteristics
Maximum power [Pmax] 100W
Voltage at Pmax [Vmp] 18.8V
Current at Pmax [Imp] 5.32A
Short-circuit current [Isc] 5.85A
Open-circuit voltage [Voc] 22.7V
Module efficiency 15.0%
Temperature coefficient of Isc (0.065±0.015)%/ºC
Temperature coefficient of Voc -(0.33±0.05) %/ºC
Temperature coefficient of power -(0.5±0.05)%/ºC
NOCT (Air 20ºC;Sun 1kW/;wind 1m/s) 46±2ºC
Maximum system voltage 1000V
Dimensions:1010mm(L) x660mm(W) x35mm(H)
Solar Cells : Polycrystalline silicon
Frame : Clear anodized aluminum alloy Color: silve
| Model | Pm(W) | Vm(V) | Im(A) | Isc(A) | Voc(V) | Size(mm) | |
| |
| SZYL-P5-18 | 5 | 17.80 | 0.28 | 0.31 | 21.50 | 285*185*18 | |
| SZYL-P30-18 | 30 | 17.10 | 1.75 | 1.87 | 21.20 | 510*510*25 | |
| SZYL-P80-18 | 80 | 17.70 | 4.53 | 4.84 | 21.90 | 990*660*35 | |
| SZYL-P100-18 | 100 | 18.80 | 5.32 | 5.69 | 22.40 | 1010*660*35 | |
| SZYL-P130-18 | 130 | 17.50 | 7.42 | 8.00 | 21.70 | 1480*670*35 | |
| SZYL-P150-18 | 150 | 18.50 | 8.12 | 8.61 | 22.90 | |
| SZYL-P200-30 | 200 | 30.10 | 6.64 | 7.22 | 36.40 | 1500*990*35 | |
| SZYL-P250-30 | 250 | 29.80 | 8.39 | 8.92 | 37.60 | 1640*990*35 | |
| SZYL-P270-30 | 270 | 30.70 | 8.80 | 9.27 | 37.90 | |
| SZYL-P300-36 | 300 | 35.80 | 8.37 | 8.86 | 45.20 | 1960*990*40 | |
| Model | Pm(W) | Vm(V) | Im(A) | Isc(A) | Voc(V) | Size(mm) | |
| |
| SZYL-M10-18 | 10 | 17.8 | 0.56 | 0.62 | 21.7 | 350*285*18 | |
| SZYL-M50-18 | 50 | 18.9 | 2.65 | 2.83 | 22.3 | 645*545*30 | |
| SZYL-M80-18 | 80 | 17.4 | 4.60 | 4.95 | 21.8 | 1200*545*35 | |
| SZYL-M100-36 | 100 | 37.8 | 2.65 | 2.83 | 44.6 | 1010*660*35 | |
| SZYL-M150-18 | 150 | 18.8 | 7.98 | 8.54 | 22.6 | 1480*670*35 | |
| SZYL-M200-36 | 200 | 38.1 | 5.25 | 5.64 | 45.7 | 1580*808*35 | |
| SZYL-M260-30 | 260 | 31.9 | 8.15 | 8.71 | 38.1 | 1640*990*35 | |
| SZYL-M300-36 | 300 | 37.6 | 7.98 | 8.58 | 45.4 | 1960*990*40 | |
| SZYL-M320-36 | 320 | 39.0 | 8.21 | 8.78 | 45.9 | |
