Product Specifications
| Prod Model: |
TFT064A |
| Resolution: |
240X320 |
| FPC Cable: |
44 Pin |
| IC: |
St7789V |
| Application: |
Taxi, Indoor, Outdoor, Mobile Phone |
| Aspect Ratio: |
16:9 |
| Feature: |
Touch Display |
| Optimum Resolution: |
320X240 |
| Widescreen: |
Not Widescreen |
| Interface Type: |
RGB |
| Usage: |
Monitor LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Response Time: |
6ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |
| Type: |
TFT |
Product Description

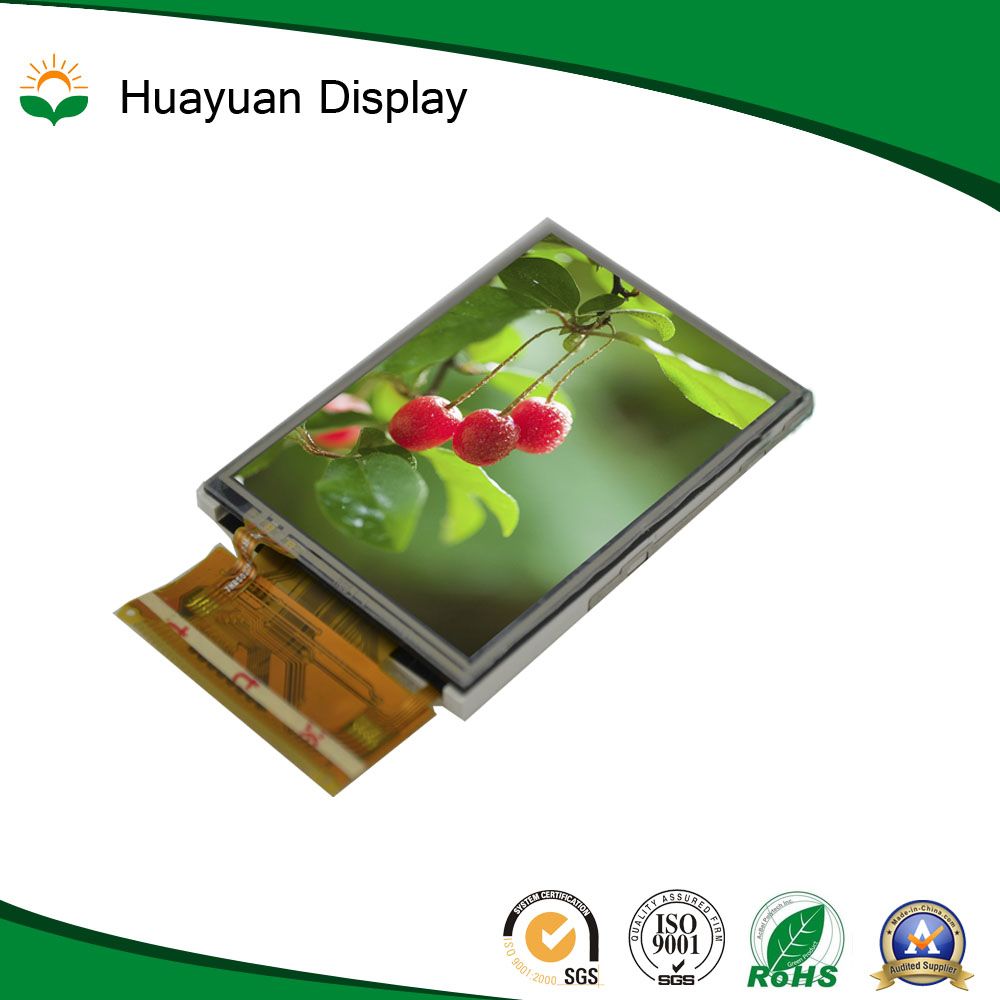

RGB interface 2.4inch lcd panel ILI9341 TFT LCM module
General Specification
UNIT LCD Type: TFT Transmissive
Driver element: a-Si TFT Active matrix
Number of Dots: 240*(RGB)*320 Dots
Pixel Arrangement: RGB Vertical Stripe
Active Area: 36.72 *48.96 mm
Viewing Direction: 12 O'clock
Driver IC: ILI9341
Module Size(W*H*T): 42.72x60.26x2.46mm
Approx. Weight: TBD
Back Light: White LED
System interface: 16 BITS 80 parallel interface
BITS 80 parallel interface;
Applications: Mobile phone PSP PDA GPS
FAQ
| Q1·Are you a factory or trading company? | A1: We are manufacturer.
Please refer to our company show |
| Q2:Where is your factory located?How can I visit there? | A2:Our factory is located in Hunan,China.Welcome to visit our factory.
We could pick you up in Changsha Huanghua Airport, or High-speed train
Zhuzhou Xi station. |
| Q3:How can I get some samples? | A3:We don't provide free one, but we will minus the extra price when you
reorder with the suitable quantity. And you will win the 1-3% discount. |
Q4:How does your factory do regarding
quality control? | A4:Quality is the priority.
Our factory has gained ISO9001 RoHS SGS certification. |
| Cooperate Supplier | Tianma, Innolux, Sumsung, Varitronix, CPT, BOE,HSD,Chi mei |
| Company development plan | Our company prepared attend electronics show in Korea,2017 |
| Packaging & Delivery | Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 5-7 days for sample and 25-30 days for mass production |
Related Products
| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Application:
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics
