Product Specifications
| Prod Model: |
CV Series(CV1000-CV20000) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electronic Components: |
LG(Ls) |
| Control System: |
PLC Program Control |
| Ice Freezing Time: |
20 Minutes/ 23 Minutes |
| Refrigeration Components: |
Danfoss/ Castel |
| Cooling Way: |
Water Cooling |
| Capacity: |
1 Ton to 20 Ton Per Day |
| Ice Size: |
22mm*22mm*22mm & 29mm*29mm*22mm |
| Compressor: |
Bitzer/ Refcomp/Copeland |
| Refrigerant: |
R22 or R404A |
| Supply Power: |
380V, 50Hz, 3p or 220V, 60Hz, 3p |
| Control: |
Electric |
| Power: |
>400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Condensing Mode: |
Water-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Solid Ice Cube With Crystal Type |
Product Description

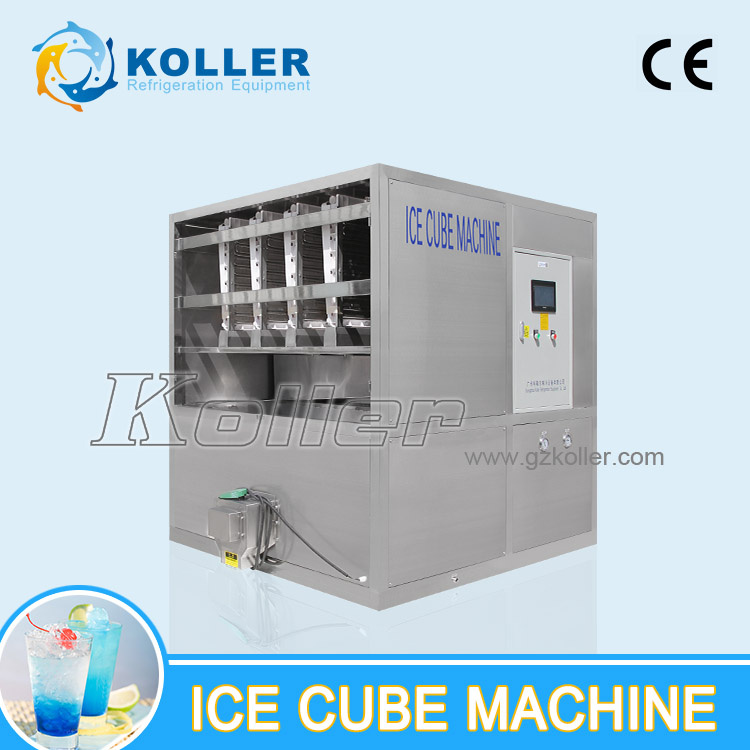

1) Ice Cube Making Machining
1. Ice size: 22mm*22mm*22mm or 29mm*29mm*22mm
2. Freezing time: 20 minutes
3. Refrigerant: R22 or R404A
4. Capacity: 1-20tons in 24 hours
5. PLC program control
2) Supply power:
1. 380V-3P-50Hz
2. 220V-3P-60Hz
3) Special features:
(1) Reasonable design for the structure, save space, easy to install
(2) Greatly save energy, only 80-85kw powers are consumed to produce one-ton ice.
3) Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing
(4) Special ice outlet. Ice discharging automatically, No need taking ice by hand and guarantee the ice clean and sanitary
(5) Install as the operation instruction, Supply failure alarming system, and no need worker to monitor.

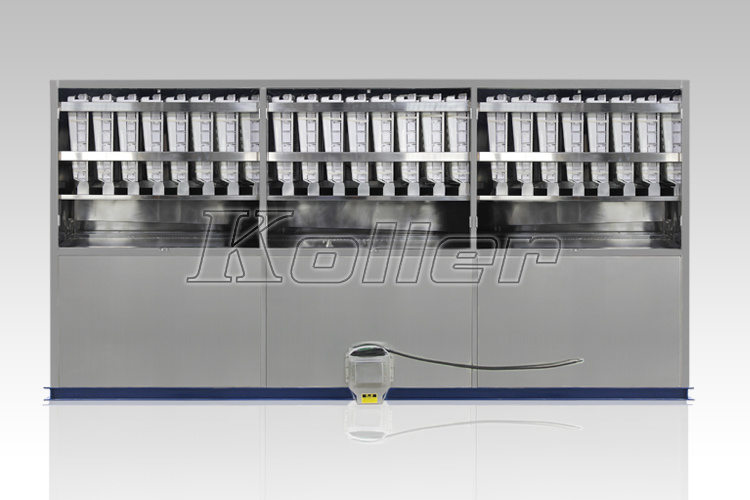

| Model | CV1000 | CV2000 | CV3000 | CV5000 | CV6000 | CV8000 | CV10000 | CV20000 |
| Capacity(Tons/24Hours) | 1 | 2 | 3 | 5 | 6 | 8 | 10 | 20 |
| Compressor Brand(France/Germany/Italy) | Bitzer/Refcomp/Copeland |
| Refrigeration | R22/R404A | R22/R404A | R22/R404A | R22/R404A | R22/R404A | R22/R404A | R22/R404A | R22/R404A |
| Compressor Power(KW) | 3 | 6 | 9 | 18.75 | 22.5 | 27.75 | 37.5 | 67.5 |
| Ice Discharge Motor(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Circulating Water Pump(KW) | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
| Cooling Water Pump(KW) | 1.5 | 2.2 | 2.2 | 4 | 4 | 5.5 | 5.5 | 7.5 |
| Cooling Tower Motor(KW) | 0.37 | 0.55 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Water Supply Pipe Diameter(KW) | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Leight*Width*Height(MM) | 1690*1200*1930 | 1750*1510*2040 | 2080*1920*2030 | 3080*1920*2080 | 3880*1590*2080 | 4900*2100*2100 | 5880*2100*2100 | 11600*2250*2200 |
| Weight(KG) | 900 | 1200 | 1500 | 2500 | 2800 | 3100 | 3500 | 5500 |
| Cooling Way | Water Cooling/Air Cooling | Water Cooling/Air Cooling | Water Cooling/Air Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
1. Research, Design, Sale, Manufacture
2. Cube Ice Machine / Block Ice Machine / Plate Ice Machine / Tube Ice Machine.
3. Products sold well in Southeast Asia, Europe, Middle Ease, Africa, South America, Australia, South Pacific Islands etc.
Guangzhou Koller R & E Co., Ltd. (Koller) is established under the management of Guangzhou Vista M&E Equipment Co., Ltd since 2004. Because of foreign investment, our company decides to expand investment and moves to Panyu District, Guangzhou, China for a better purchase platform and high-quality products.
Our experience: We have engaged in the refrigeration for more than seven years and have rich experience in research, design, production, sales and after sales in refrigeration and heat exchange.
Our Service Team: With strong team cooperation, great passion, and 100% patience, responsibility for each department for each staff.
Our Aim: 100% satisfaction
Our After sales Service: Have owned an exquisite refrigeration engineers team with advanced refrigeration technology and mechanical treatment technology, service at any time with best attitude.

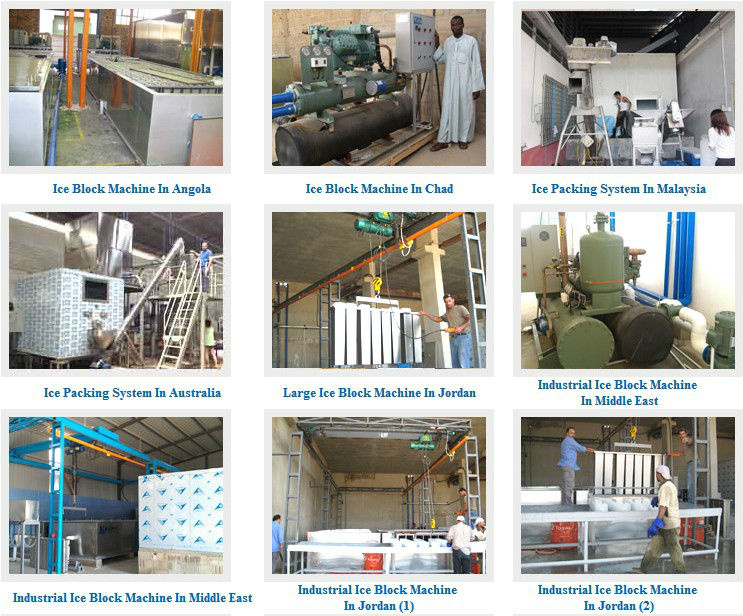

Our Customer Project Country: South Africa, Tchad, Nigeria, Mali, Malaysia, Cambodia, Philippine, Vietnam, Turkey, Papua New Guinea, Iran, Saudi Arabic, Mexico, Venezuela, Curaco.
Our Product Application Filed: Large edible ice plants, supermarkets, aquatic products processing, pelagic fishery, vegetable/fruit processing and fresh keeping, meat processing and concrete cooling
Our Products: Commercial Ice Cube Machine; Commercial Ice Block Machine; Industrial Ice Block Machine; Tube Ice Machine; Plate Ice Machine; Ice Packaging System; Ice Conveyor System; Cold Room (Walk In Freezer).
