Product Specifications
| Prod Model: |
TY19264A |
| Module Size: |
120*62mm |
| LC Fluid: |
Stn,Blue |
| Interface: |
Parallel |
| View Angle: |
6:00 or 12:00 |
| Power Supply: |
5.0V or 3V |
| Polarizer Type: |
Transflective |
| Temp. Range: |
-20 to 70 Degree |
| Usage: |
Small-sized LCM |
| Type: |
Graphic |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
Product Description

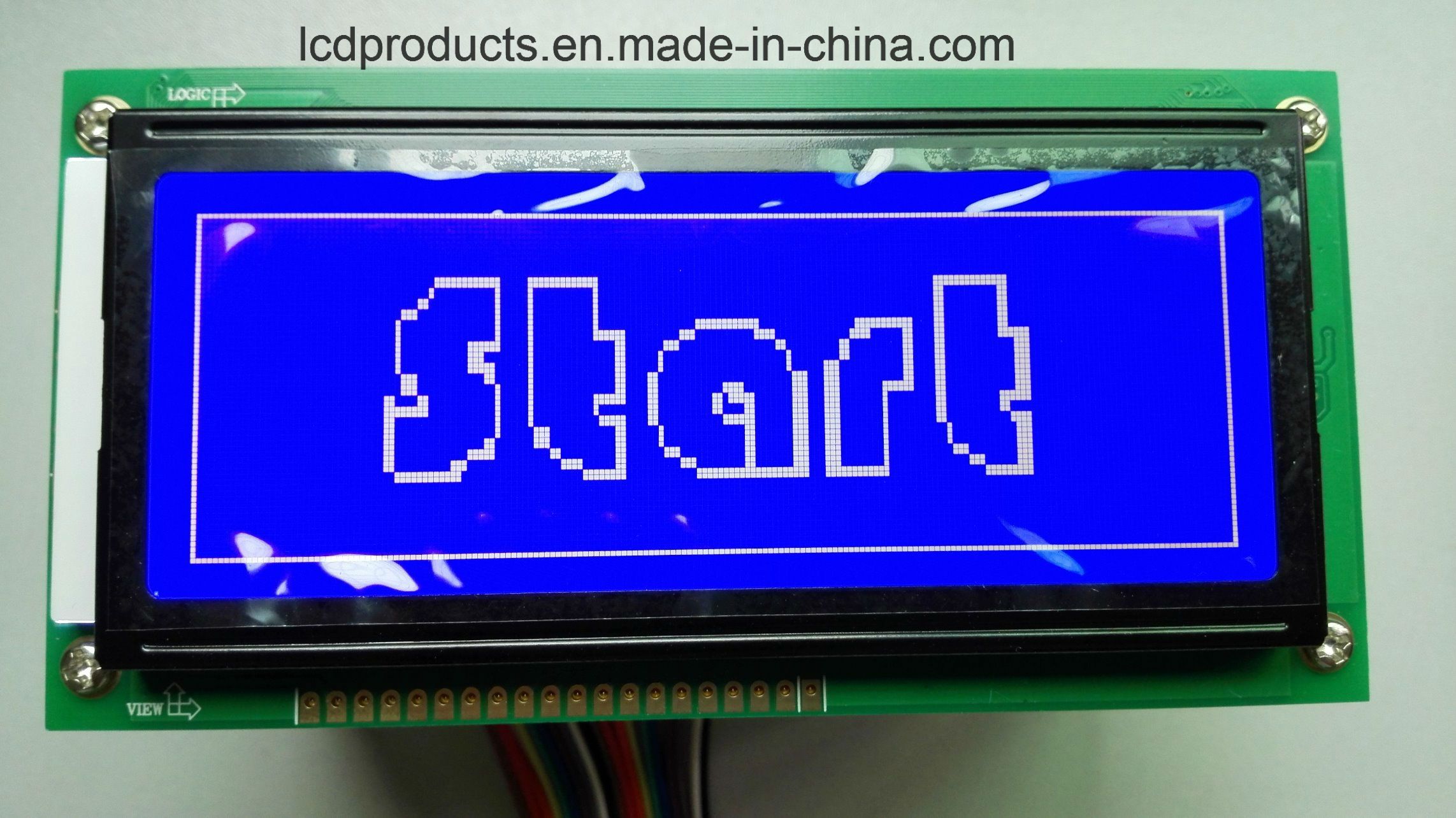

Graphic 192*64LCD module STN
192characters x 64lines COB Graphic LCD module
Overall dimension:120x 62x 13.5mm (maximum)
Viewing area: 100x37mm
Transflective polarizer type (optional for reflective/transmissive)
Bottom LED backlight (optional for side LED/EL backlight)
Yellow green backlight color (optional for white/blue/red/amber colors)
LCD STN yellow (optional for LCD TN/HTN/STN gray/STN blue/FSTN)
Viewing angle: 6:00 o'clock (optional for 12:00 o'clock)
Standard temperature range (optional for wide temperature)
English-Japanese fonts (optional for Russian/European/Cyrillic/Hebrew fonts)
Parallel interface
| Item | Description |
| Product Name | Graphic LCD Module |
| Model No. | TY19264A |
| Dot Format | 192*64 |
| Outline Dimension(mm) | 120x 62x13.5MAX |
| Viewing Area(mm) | 100x37 |
| Viewing Angle | 6 O' clock or 12 O' clock |
| LCD Type | STN |
| Backlight | Whit or Y/G LED backlight |
| Driver IC | |
| Power supply | 3.3V or 5V |
| Interface | Parallel |
| Operating Temp | -20º C~70º C |
| Storage Temp | -30º C~80º C |
