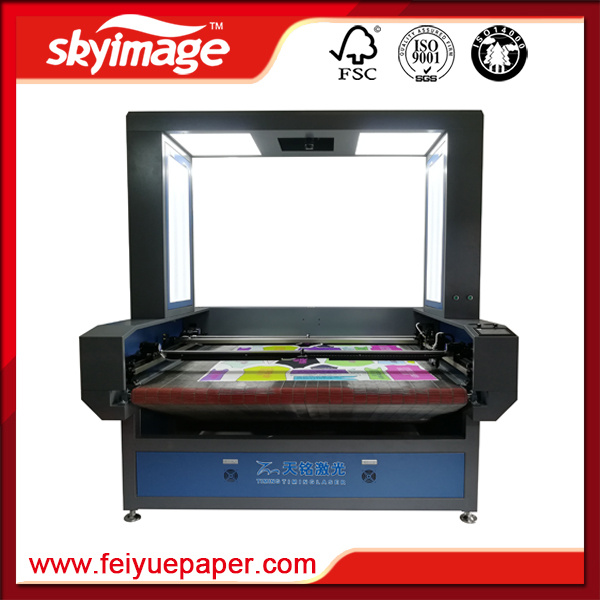

1610 Large Scale Visual Scan Cutting Machine

1610 Large Scale Visual Scan Cutting Machine
Price: US $ 10769/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: FY-1610
Cutting Speed: 60m/Min
Laser Tube: CO2 Laser Tube
Operating Humidity: 5%-80%
Laser Power: 80W/100W/120W
Camera Pixels: 18 Million
Gross Power: <3000W
Weight: 900kg
Resolution Ratio: 0.025mm
Repositioning Accuracy: 10%
Dimension: 2360*2380*3100/2000*2380*2500

Product Description

Specifications:
Name:Auto feed laser cutting machine
Processing area1600*1000mm
Laser power80w ,100W,120W
Laser type:Sealed CO2 glass laser tube
Cooling mode:Water cooling and protection system
Resetting positioning accuracy:±0.01mm
Compatible Software:Laser cut 5.3, CorelDraw  AutoCAD  Photoshop
Engraving speed1-6000mm/min
Cutting speed60m/min
Cutting thickness0-15mm acrylic (others determined by materials)
Resolution ratio≤0.0125mm
Position system:Red dot
Interface:USB
Minimum shaping characterletter 0.8mm, Chinese 2mm
Support graphic formatDST, PLT, BMP, DXF
Cooling mode:Circulation water cooling
Working voltage:AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature5-45ºC
Operating humidity:5%-80%
Driving systemstepper
Packing:wooden box
Guarantee time:1 year, laser tube 3 months
Option:Rotary attachment for column materials
Operation:Video to tell customer how to operate the machine


Detailed Product Description:
1.upgrading structure, high precision and higher speed
2. with advanced DSP controlling system, strong function, can effectively engrave on plane/ gradient(optional0, cutting and drilling holes, etc.
3. transmitting files directly from CorelDraw, Auto CAD etc.
4.equipped with lifting platform which can perform processing at any height
5. the delicate machine body, adopting DSP controlling system to ensure work without computer and support USB flash disk direct output.

Applicable Materials:
Wood, paper, leather, cloth, organic glass, resin, acrylic, wollens, plastic,rubber ceramic tile, crystal, bowlder, bamboo,etc.
Warranty:
 1. Laser tube: lifespan 10000 hours, warranty 9 months
 2. Lens and Mirrors: warranty 3 months
 3. Other parts of this machine: warranty 1 year

Features:
Adopting the strip shape platform, which can bear heavier materials such as organic glass, wood and so on.
Original Singapore imported lens with molybdenum base, making the equipment produce smaller faculae and stronger cutting force, greatly improving working efficiency and reducing cost.
USB cable to transfer data and offline DSP control system are both available.
Our three unique protection functions, i.e. anti-interference function, water-protective function and power cut-off function ensure longer working life, stability and effectiveness
The structure of the machine is more compact and more reasonable, the electric performance steady;
