Product Specifications
| Prod Model: |
DW1325 wood cnc machine |
| Voltage: |
AC380V/50/60Hz, 3pH |
| Spindle Speed: |
0-18000rpm |
| Table Structure: |
T-Slot Working Table |
| Inverter: |
3.7kw Fuling Inverter |
| X,Y Axis Transmission: |

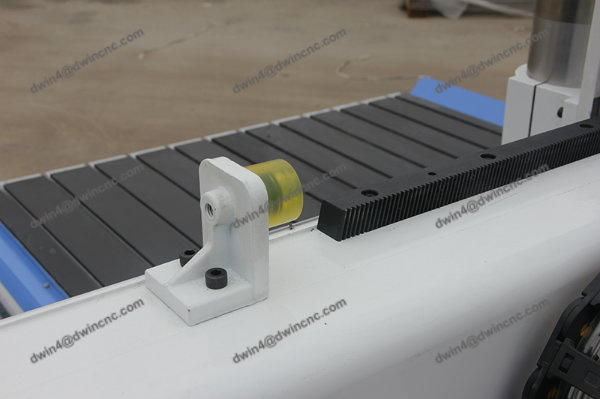

X, Y Axis Rack and Pinion Drive |
| Z Axis Transmission: |
Z Axis Taiwan Tbi Ball Screw |
| Machine Warranty: |
24 Months for Machine Body |
| Motor And Driver: |
Stepper Motor and Driver |
| Software: |
Artcam/Type3 |
| Processing Precision: |
±0.05mm |
Product Description

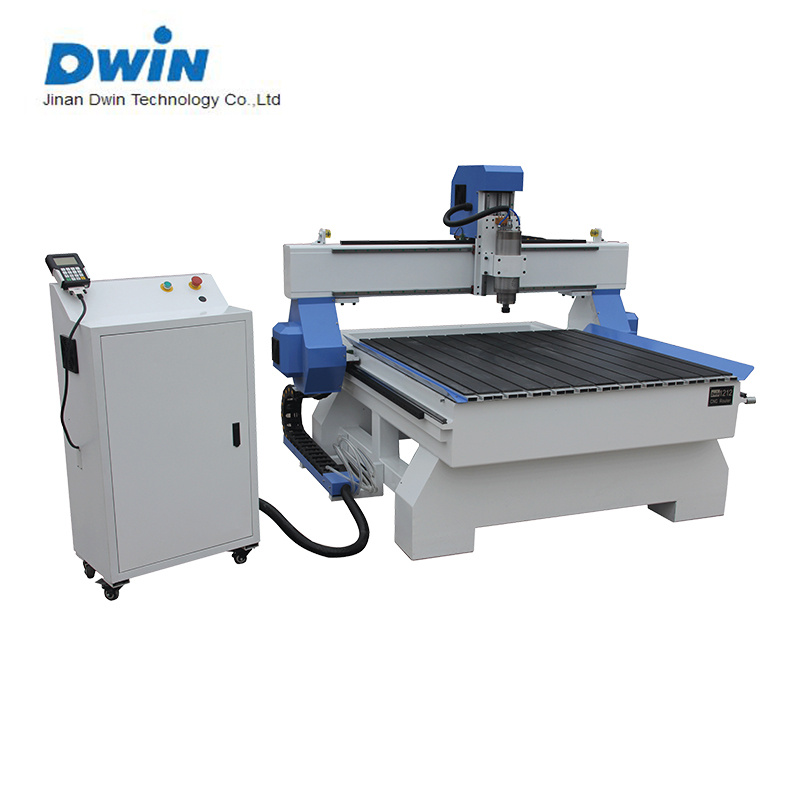

1325 T-Slot Table Wood Woodworking CNC Router Machine for Engraver
Machine Feature:1. The idle speed is up to 35 meters/min, engraving speed is 25 meters/min

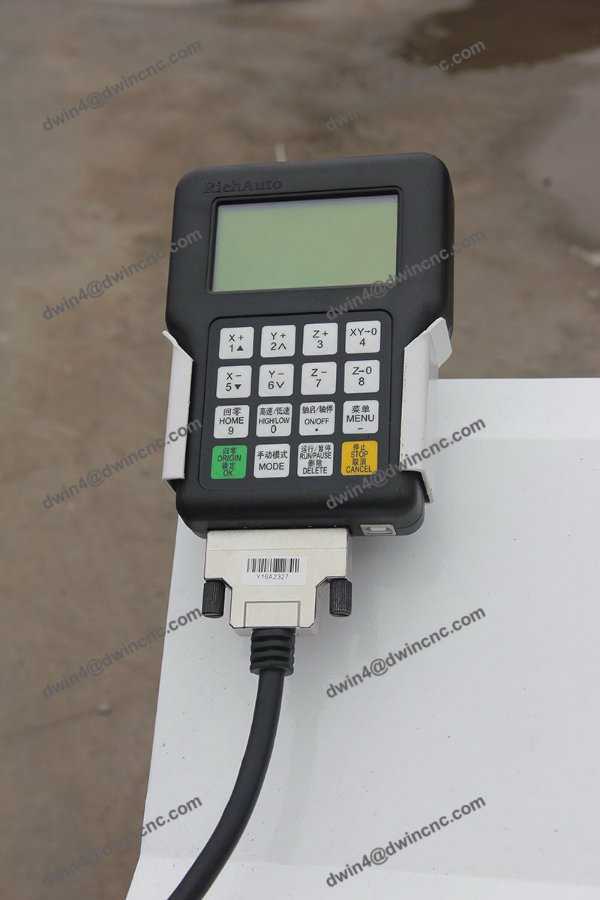

2.Adopting advanced DSP system, operated with the handle, convenient operation, designed with more human nature.
3.Unique intelligent budget principle, fully develops the potential of the motor and lead to high processing speed, the synchronization of curves and straight lines, smoother curves.
4.Y spindle adopts double motors to drive
5.High strength steel tube jointing.
6.It divided into 6 vacuum table-board.
7.Professional and human nature 3D control system,
8.Optional auto tool CHANGER, and temperature control system.
Machine parameter | No. | Description | Parameter |
| 1. | X,Y,Z Working Area | 1300x2500x400mm |
| 2. | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 3. | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 4. | Table Surface | T-slot Table |
| 5. | Frame | Welded Structure |
| 6. | X, Y Structure | 20 HINWIN linear guide,helical rack |
| 7. | Z Structure | Hiwin Rail Linear guide and Ball Screw |
| 8. | Max. Power Consumption | (Without Spindle) 2.5kw~3Kw |
| 9. | Max. Rapid Travel Rate | 33000mm/min |
| 10. | Max. Working Speed | 25000mm/min |

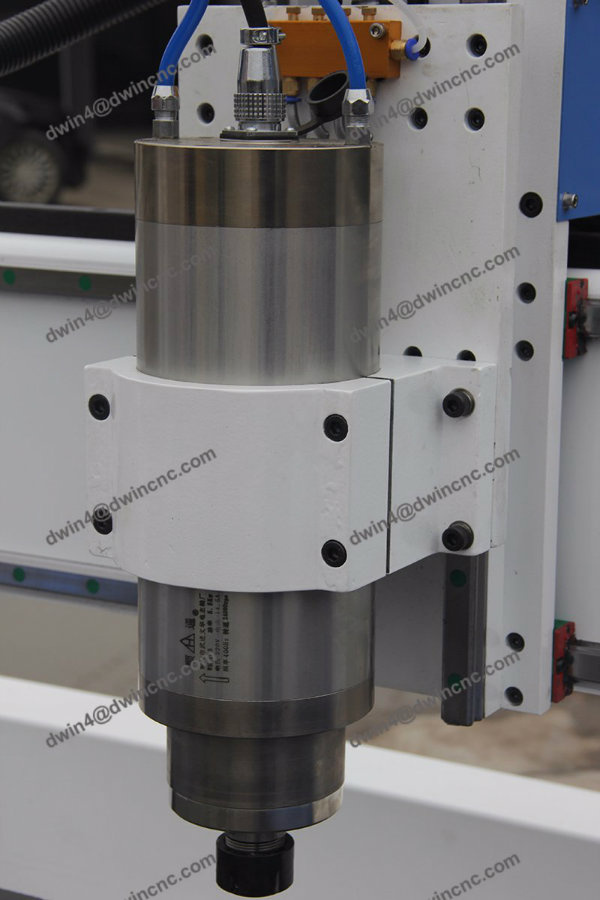

| 11. | Spindle Power | 5.5 KW |
| 12. | Spindle Speed | 0-24000RPM |
| 13. | Drive Motors | YASKAWA |
| 14. | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 15. | Command Language | G Code |
| 16. | Operating System | DSP A11 |
| 17. | Computer Interface | USB |
| 18. | Flash Memory | 128M(U Disk) |
Application: 1. Woodworking industry: three-dimensional wave board processing,cabinet door, craft wooden door,
folding screen, process window milling shape carved furniture products.
2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo
making, acrylic cutting, plastic molding,characters, crystal cutting, plate making, cutting PVC board,
acrylic,LED/neon trough, the hole shape literally cut, blister light boxes mould
3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as
material for a variety of exquisite design and text on the sculpture.
