| Price: | US $ 20000-25000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | OD-1325 |
|---|---|
| Dimension(L*W*H): | 1300*2500*200mm |
| Motor: | Japan Yaskawa 850W AC Servo Motor and Drive |
| Controlling System: | Aiwan Syntec 6MB Controlling System |
| Pump: | 7.5kw Air Pump |
| Spindle: | 9kw Hsd Atc |
| Spindle Layout: | Spindle Over |
| Spindle Number: | Single-Spindle |
| Feed Mode: | Manual |
| Controlling Mode: | CNC |
| Certification: | CE |

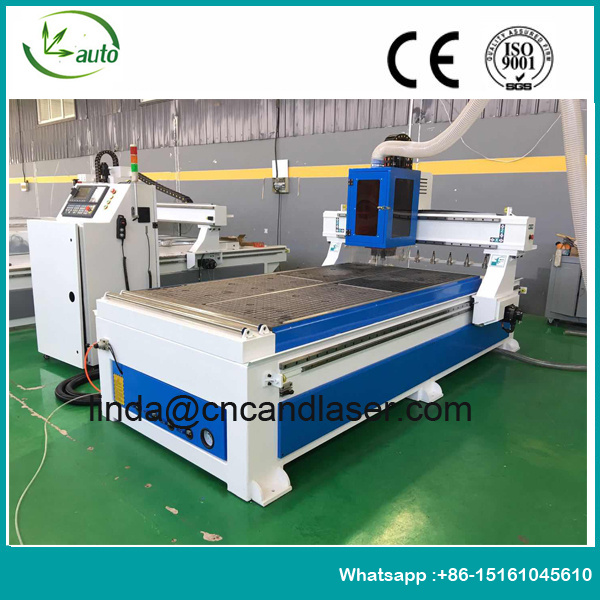

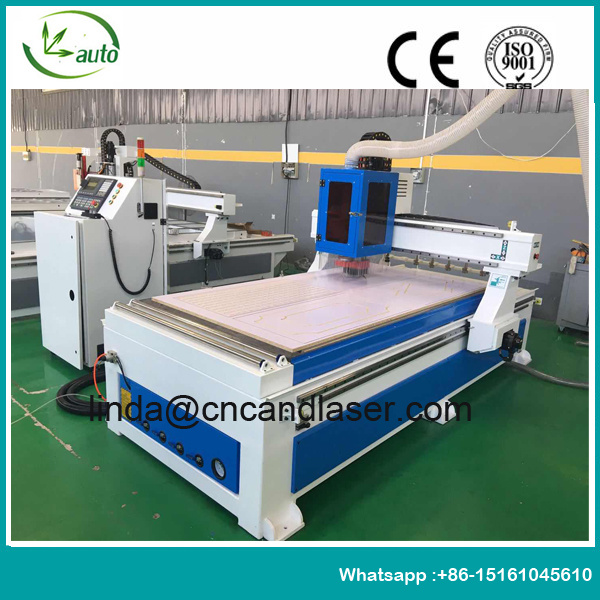

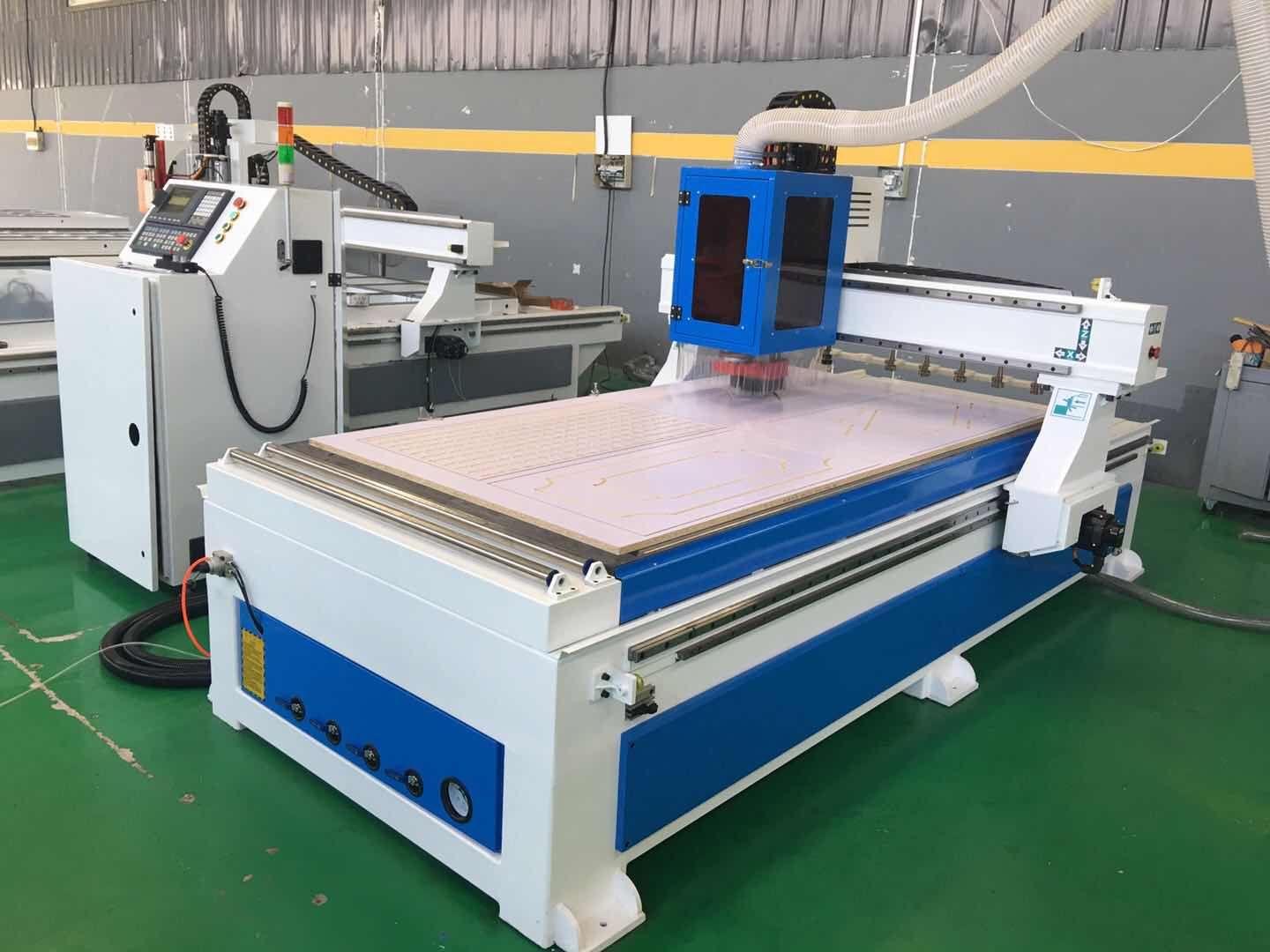

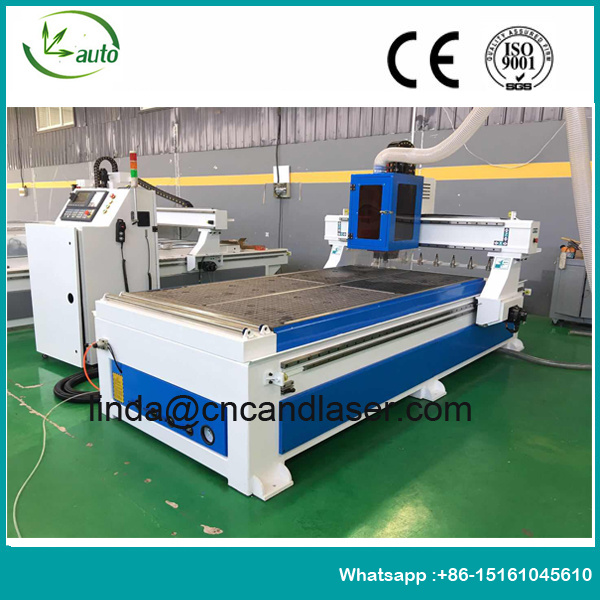

1325 Linear Type ATC 8 tools CNC wood Door engraving machine
1. Advantages
² Adopt industrial class square tube, strong structure and popular router design by our engineer.
² 9kw HSD ATC air cooling spindle, strong power, can be widely used for different thickness materials, international famous brand, good using.
² SIEMENS Servo Motor & Drive, promise high working efficiency.
² Optional parts for your choice, like vacuum pump and dust collector.
2. Parameters
| Technical Parameters | |||
| General Information | OD-1325 Linear ATC CNC wood Router | ||
| Machine Dimension(L*W*H) | 4000*2000*1850mm | ||
| Gross Weight | 2200kg | ||
| Warranty | One year | ||
| Validity | This offer is valid for 15 days | ||

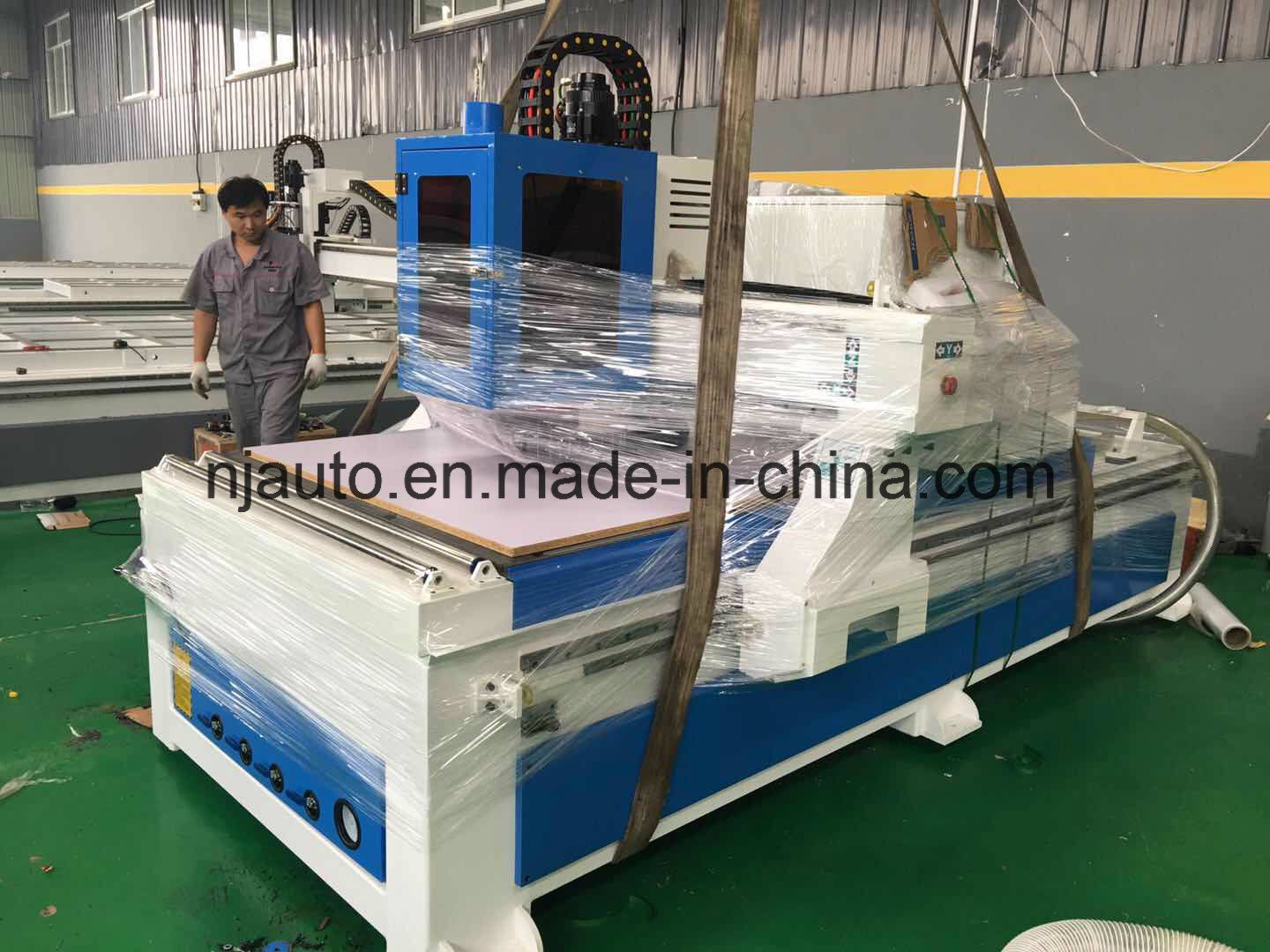

| Package | Wooden package | ||
| Machine Features | |||
| Table size | 1280*2480*220mm | ||
| Max. Travelling Speed | 60m/min | ||
| Max. Cutting Speed | 20m/min | ||
| Accuracy | ±0.03mm | ||
| Controlling System | Taiwan SYNTEC 6MB controlling system, USB/Ethernet interface | ||
| Spindle | Italy HSD ES929 9.0kw/12HP air-cooling spindle, ISO30 | ||
| Spindle Speed | 24000rpm | ||
| Tool magazine | Linear tool magazine with 8 tools | ||
| Inverter | Taiwan DELTA 11kw B model | ||
| Servo Drive | Japan YASKAWA 850w AC servo motor and drive, Z with brake | ||
| Planetary Gearbox | Japan SHIMPO 8:1 servo reducer | ||
| Rails | Taiwan HIWIN/PMI 25mm square rails | ||
| Transmission | German WMH 1.5M helical rack for XY, Z with TBI 2510 ball screw | ||
| Lubrication System | Auto lubrication | ||
| Tool sensor | Automatic | ||
| Software | Artcam pro 9.1 | ||
| Working Voltage | AC380V 50Hz~60Hz 3Ph (AC220V 50/60Hz 3Ph optional) | ||
| Compressed air pressure | ≥0.6MPa | ||
| Working Environment | Temperature: -10°-55°, Humidity: 5%-95%, and congeal-water removed | ||
| Spare parts needed and suggested | |||
| ITEM # | Description | ||
| 1 | Industrial dust collector 3.0kw double-bag | ||
| 2 | Chinese 5.5kw/160E dry vacuum pump with high quality | ||
| Option 1: Chinese 5.5kw/250E dry vacuum pump with high quality | |||
| Option 2: German 5.5kw/250E dry vacuum pump best quality | |||
| 3 | Spray mist cooling system for aluminum cutting | ||
| 4 | Laser defence safety system | ||
| After service terms | |||
| One year full warranty on all electronic and mechanical parts, except wearing parts. Customers will get job started quickly with our operation manual. Customer will get technical supporting without any limit 24 hours/7 day by calling/email/Skype/video etc. Customers can require our technicians for over-sea technical supporting. Customers will get job started quickly without any other special spare part after received our machine. | |||
PS: All the working area and specifications can be customized according to your requests.
What the machine can do ?
Sample show:
1. Wood furniture industry
Doors; Cabinets; Tables; Chairs.
Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object.
