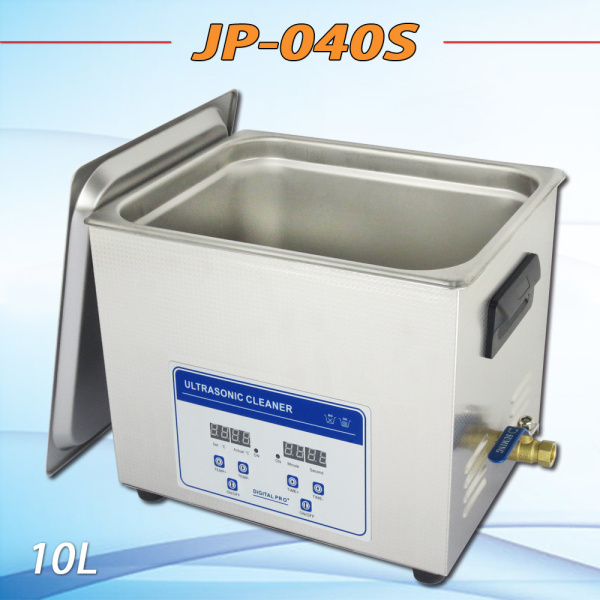

Product Specifications
| Prod Model: |
JP-040S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
10liter |
| Tank Size: |
30x24x15cm |
| Ultrasonic Power: |
240W |
| Heating Power: |
200W |
| Timer: |
0~30min Adjustable |
| Heater: |
0~80c Adjustable |
| Ultrasonic Frequency: |
40kHz |
| Warranty Time: |
1 Year |
| MOQ: |
1PCS |
| Certificate: |
CE, RoHS |
Product Description
10liter ultrasonic cleaning bath are widely applicated in factory for metals & hardware degrease, Remove oil effiency, save labor cost and time. No damage for objects.
What's an "Ultrasound"?
Under ultrasound is commonly understood sound waves whose frequency is above the threshold of human hearing (in the range of 16 kHz - 1 GHz).
In addition, you can generate ultrasound with much higher energy, ie, much "louder" than the audible sound.
In the use of ultrasound technology distinguish the weak signal (test materials, medical supplies, diagnostics) and high-intensity ultrasound, such as ultrasound for cleaning, ultrasonic welding.
Applied to liquid media ultrasound has found application in the so-called effect of "ultrasonic cavitation. "
This effect is used as a basis in the ultrasonic cleaning device.
Compared with traditional methods, ultrasonic cleaner allows you to:
1. Minimize the use of manual labor
2. Make cleaning and degreasing without the use of organic solvents.
3. Clean hard to reah areas of products and remove all type of dirt
4. Shorten the processes such as extration, dispersion, purification, chemical reactions.
5. Eliminates costly mechanical and chemical cleaning of heat exchangers.
Applications:
Medical and Dental Labs: Hypodermic needles, Cannulae, Surgical
Instruments, Blood oxygenators, Dental instruments, Dentures, Plates
Scientific Labs: Laboratory glassware, Test tubes, Pipettes, Optical and contact lenses, Eyeglass frames, Components
Jewelry: Watches, Clock movements, Gemstones, Pendants, Chains
Industry: Switches, Gears, Nozzles, Relays and motors, Bearings, Sieves, Metal, Ironware and plastic parts
Electronics: Printed circuit boards, Lapping heads, Capacitors, Packaging components, Quartz crystals
Chemical Experiments: Degassing of soution, Dissolution of powdered sample
Features:
1. Stainless steel tank has resistance to wear and long work life.
2. Tank capacity: 10.8L(2.85gallon), with digital timer & heater control
3. With Stainless steel basket
4. Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5. Industrial control chip microcontroller. Flexible circuit boards control, more secure & stable
6. Temperature tunable from 20° C to 80° C
Shipping info.:
Measurement for 1PCS: 0.057CBM
18PCS per CBM
MOQ: 1PCS
|
Ultrasonic Frequency |
40,000 Hz |
|
Material |
Stainless Steel SUS304 |
|
Tank Capacity |
10 L |
|
Timer |
1-30minutes, Digital timer |
|
Power Supply |
AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
|
Ultrasonic Power |
240W |
|
Heating Power |
200 W, Digital Heating |
|
Unit Size |
325 x 265 x 280 mm ( L x W x H ) |
|
Tank Size |
300 x 240 x 150 mm ( L x W x H ) |
|
Package Size |
430 x 350 x 380 mm ( L x W x H ) |
|
N.W. |
7.0 kg |
|
G.W. |
8.5 kg |
Skymen Cleaning Equipment Shenzhen Co., Ltd. is a manufacturer all types ultrasonic cleaner from China. Our product include bench-top ultrasonic cleaners, mini household smart ultrasonic jewelry cleaner, industrial large tank ultrasonic cleaning machine, and submersible ultrasonic transducer pack system. Capacity from 0.6L to 5000L or even more bigger. With powerful transducer and qualified design circuit control to reach very good cleaning result. Mainly used in car part cleaning, tools cleanig, fruit&vegetable cleaning, hardware cleaning, commercial kitchen cleaning, etc...We also do OEM&ODM business for ultrasonic cleaner dealers and agents. And we sincerely welcome overseas ultrasonic cleaner distributers and wholesalors to establish business relationship.
Quality control:
1. Raw Material Inspection:
QC and engineers would make strict inspection of the raw material step by step to ensure quality product.
2. Sales Checking:
We salesman would also check the production process to ensure machine 100% according to the sample.
3.100% product inspection:
100% products checking during production, Each unit would be under testing at least 4hours before packed.
4. We always try to do perfect:
Everyone in Skymen would try best to solve problems together with you.
